Toyota Corolla sed/lb AE82 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
US
COROLLA SED/LB
AE82L-ELHDCK (1983)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

AE82L-ELHDCK (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Jul 1987

Engine 4ALC

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-14010	AE82	08/1985 - 07/1987	1
88412-14030	AE82	08/1983 - 08/1985	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-12100	AE82	08/1983 - 08/1985	1
88411-20100	AE82	08/1985 - 07/1987	1
88320 - COMPRESSOR ASSY, COOLER
88320-12290	AE82	08/1983 - 02/1984	1
88320-12310	AE82	02/1984 - 05/1985	1
88320-12480	AE82	08/1985 - 07/1987	1
88320-12390	AE82	05/1985 - 08/1985	1
88330 - CLUTCH ASSY, MAGNET
88410-20170	AE82	08/1985 - 07/1987	1
88410-12180	AE82	08/1983 - 08/1985	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050	AE82	08/1985 - 07/1987	1
88330B - BEARING, MAGNET CLUTCH
90099-10133	AE82	08/1985 - 07/1987	1
90099-10135	AE82	08/1983 - 08/1985	1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07094	AE82	08/1983 - 07/1987	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14040	AE82	08/1983 - 08/1985	1
88403-14030	AE82	08/1985 - 07/1987	1
Common parts
90099-07087
90099-07114
94110-40800
94511-00800

(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty

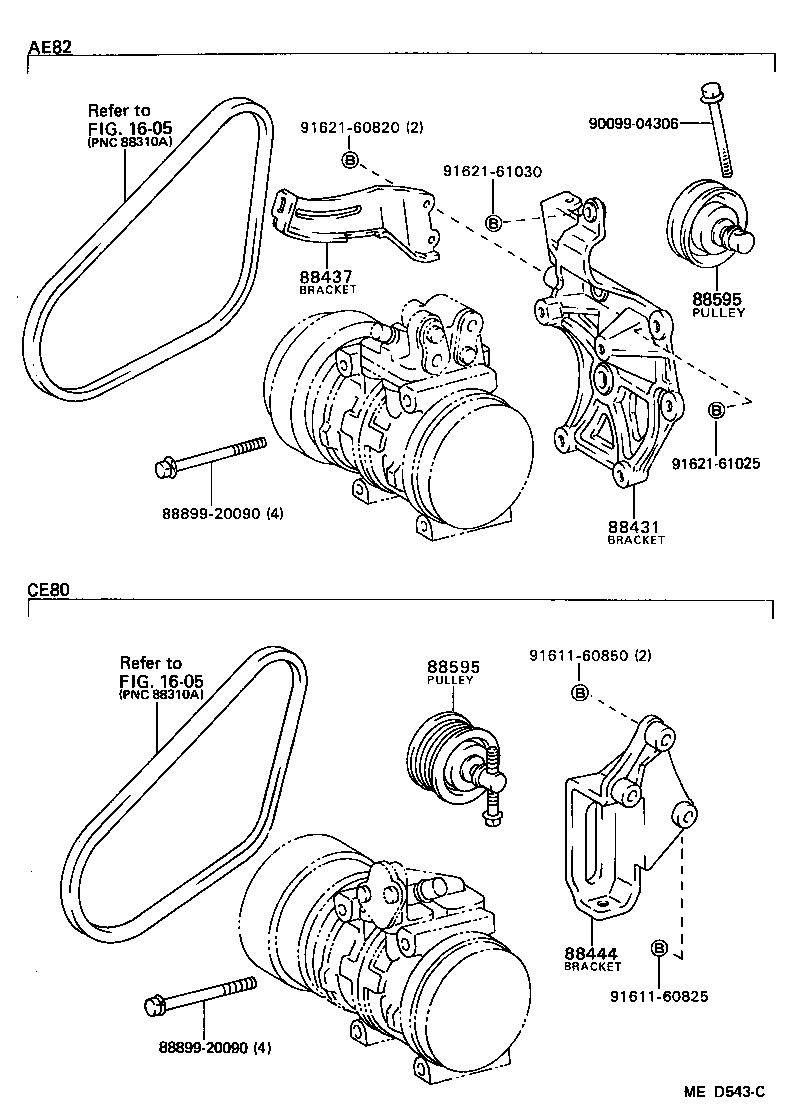

88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-20260	AE82	08/1985 - 07/1987	1
88431-12290	AE82	08/1983 - 08/1985	1
88437 - BRACKET, COMPRESSOR MOUNTING, NO.7
88437-12260	AE82	08/1983 - 07/1987	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12160	AE82	08/1983 - 07/1987	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12160	AE82	08/1983 - 07/1987	1
Common parts
88899-20090
90099-04306
91611-60825
91611-60850
91621-60820
91621-61025
91621-61030
Linked diagrams
1605

(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty

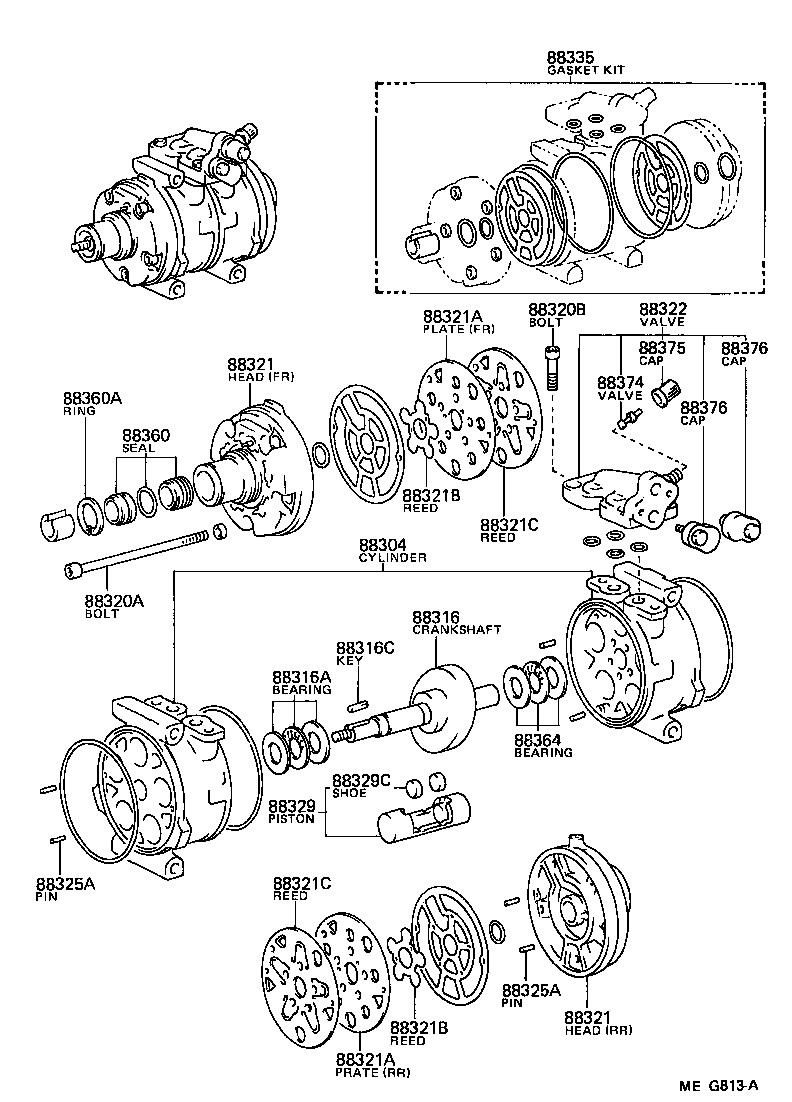

88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR
88304-14021	AE82	08/1985 - 07/1987	1
88304-14041	AE82,CE80..DX,LE,LEL	08/1983 - 08/1985	1
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-14011	AE82	08/1985 - 07/1987	1
88316-14021	AE82,CE80..DX,LE,LEL	08/1983 - 08/1985	1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
88366-14010	AE82,CE80..DX,LE,LEL	08/1983 - 07/1987	1
88316C - KEY, COMPRESSOR CRANKSHAFT
90099-13012	AE82,CE80..DX,LE	08/1983 - 02/1984	1
90099-13024	AE82	02/1984 - 07/1987	1
88320A - BOLT, THROUGH
90099-04958	AE82	08/1985 - 07/1987	5
90099-04968	AE82,CE80..DX,LE,LEL	08/1983 - 08/1985	5
88320B - BOLT, SERVICE VALVE
90099-04255	AE82	08/1983 - 07/1987	4
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-14011	AE82,CE80..DX,LE,LEL RR	08/1983 - 07/1987	1
88321-14011	AE82,CE80..DX,LE,LEL FR	08/1983 - 07/1987	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-14011	AE82,CE80..DX,LE,LEL RR	08/1983 - 07/1987	1
88321-14011	AE82,CE80..DX,LE,LEL FR	08/1983 - 07/1987	1
88321A - PLATE SUB-ASSY, VALVE
88341-14010	AE82,CE80..DX,LE,LEL FR	08/1983 - 07/1987	1
88342-14010	AE82,CE80..DX,LE,LEL RR	08/1983 - 07/1987	1
88321A - PLATE SUB-ASSY, VALVE
88341-14010	AE82,CE80..DX,LE,LEL FR	08/1983 - 07/1987	1
88342-14010	AE82,CE80..DX,LE,LEL RR	08/1983 - 07/1987	1
88321B - REED SUB-ASSY, VALVE
88344-14011	AE82,CE80..DX,LE,LEL	08/1983 - 07/1987	2
88321B - REED SUB-ASSY, VALVE
88344-14011	AE82,CE80..DX,LE,LEL	08/1983 - 07/1987	2
88321C - REED, SUCTION VALVE
88343-14011	AE82,CE80..DX,LE,LEL	08/1983 - 07/1987	2
88321C - REED, SUCTION VALVE
88343-14011	AE82,CE80..DX,LE,LEL	08/1983 - 07/1987	2
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-12210	AE82	08/1983 - 02/1984	1
88371-20170	AE82	02/1984 - 08/1985	1
88371-12280	AE82	08/1985 - 07/1987	1
88325A - PIN, CYLINDER BLOCK
90099-08058	AE82,CE80..DX,LE,LEL	08/1983 - 07/1987	4
88325A - PIN, CYLINDER BLOCK
90099-08058	AE82,CE80..DX,LE,LEL	08/1983 - 07/1987	4
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-12050	AE82,CE80..DX,LE,LEL	08/1983 - 08/1985	5
88301-14020	AE82	08/1985 - 07/1987	5
88329C - SHOE, PISTON
88313-14010	AE82,CE80..DX,LE,LEL	08/1983 - 07/1987	10
88335 - GASKET KIT, OVERHAUL
88335-12030	AE82	02/1984 - 07/1987	1
04881-10010	AE82,CE80..DX,LE	08/1983 - 02/1984	1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-40010	AE82	02/1984 - 07/1987	1
88360-14020	AE82,CE80..DX,LE	08/1983 - 02/1984	1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022	AE82,CE80..DX,LE,LEL	08/1983 - 07/1987	1
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
88366-14010	AE82,CE80..DX,LE,LEL	08/1983 - 07/1987	1
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020	AE82,CE80..DX,LE,LEL	08/1983 - 07/1987	1
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30270	AE82,CE80..DX,LE,LEL	08/1983 - 07/1987	1
88376 - CAP, BLIND
88376-28010	AE82 SUCTION	02/1984 - 05/1985	1
88376-28020	AE82 DISCHARGE	02/1984 - 05/1985	1
88376 - CAP, BLIND
88376-28010	AE82 SUCTION	02/1984 - 05/1985	1
88376-28020	AE82 DISCHARGE	02/1984 - 05/1985	1
