AE82L-ELHDCK (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Jul 1987
Engine 4ALC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4ALC

Click highlighted areas on diagram

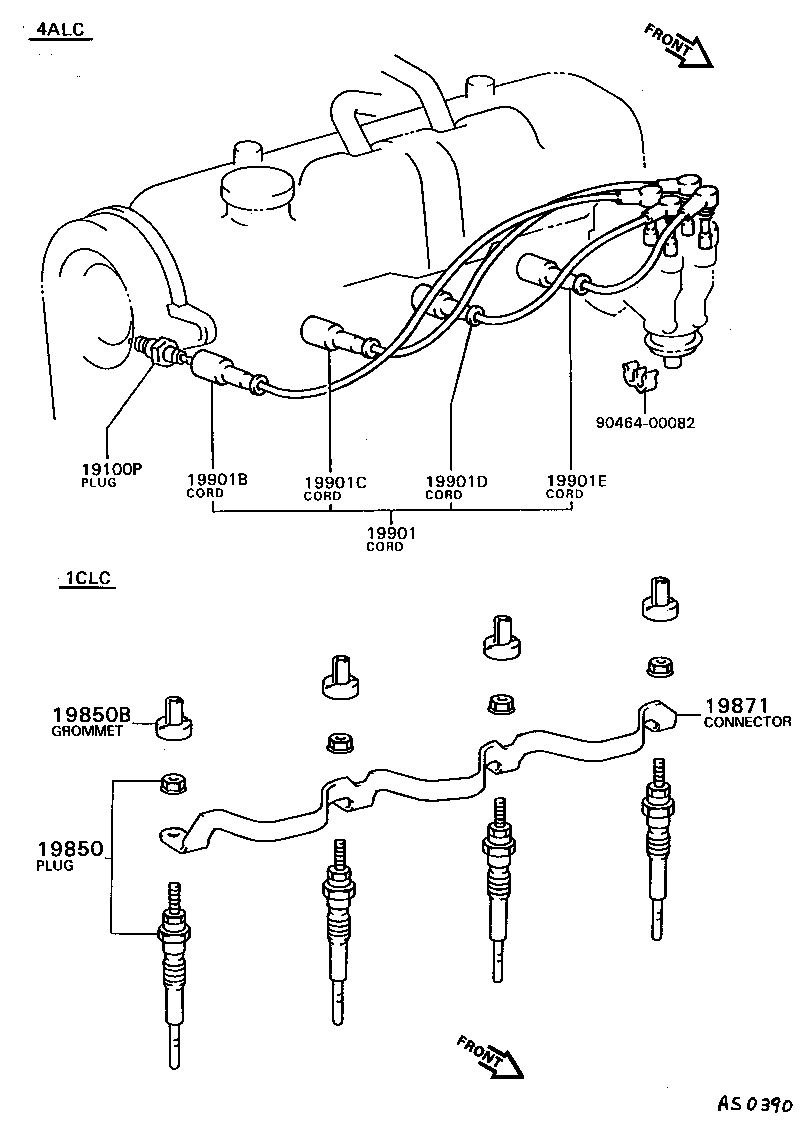

diagram 19100P 19850 19850B 19871 19901 19901B 19901C 19901D 19901E 9046400082
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

4ALC..AE82..CND

W16EXR-U,W16EXR-U

 4
90919-01064

4ALC..AE82..CND

W16EXR-U,W16EXR-U

 4
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22147

4ALC..AE82

 1
90919-22147

4ALC..AE82

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12514

4ALC..AE82

 1
90919-12514

4ALC..AE82

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12515

4ALC..AE82

 1
90919-12515

4ALC..AE82

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12475

4ALC..AE82

 1
90919-12475

4ALC..AE82

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12476

4ALC..AE82

 1
90919-12476

4ALC..AE82

 1
Common parts
90464-00082
