AE82L-EEHNCK (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Aug 1984
Engine 4ALC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

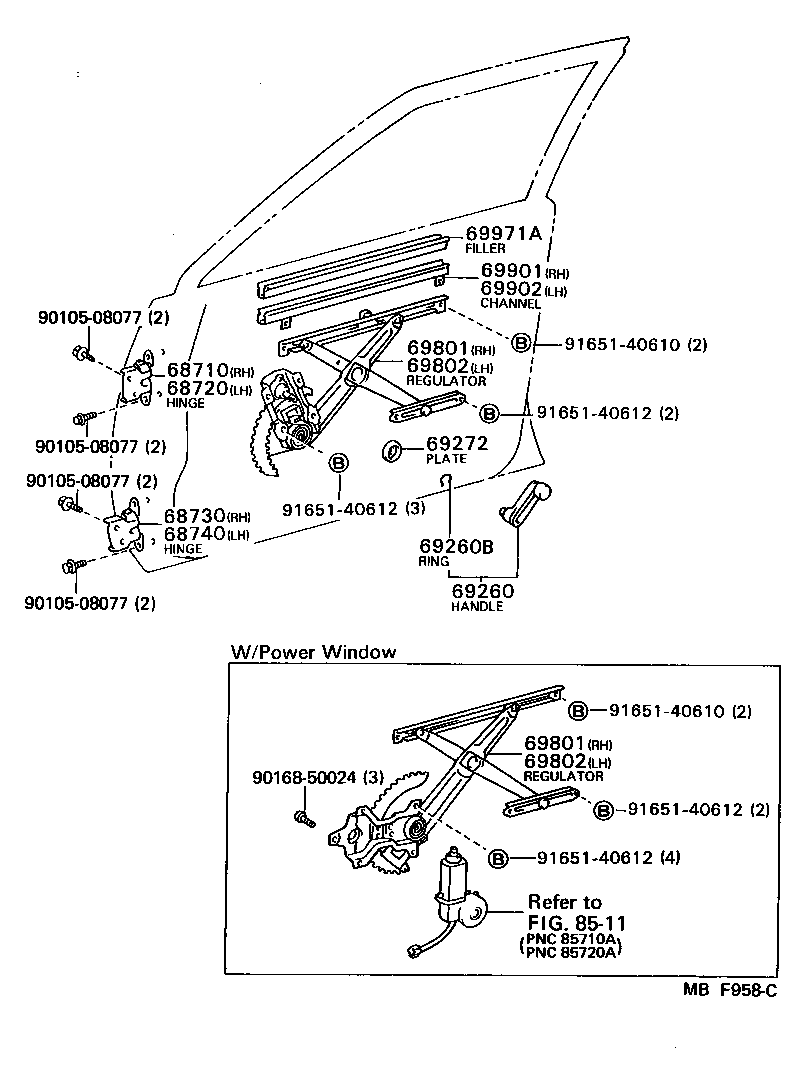

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69901 69902 69971A 8511 9010508077 9010508077 9010508077 9010508077 9016850024 9165140610 9165140610 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12080

AE82,CE80

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12080

AE82,CE80

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-32010

AE82,CE80

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-32010

AE82,CE80

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1402025

AE82,CE80

BEIGE,BEIGE,TRIM3#

 2
69260-1206004

AE82,CE80

BLUE,BLUE,TRIM8#

 2
69260-1206005

AE82,CE80

BEIGE,BEIGE,TRIM3#

 2
69260-1402012

AE82,CE80

MAROON,RED/MAROON,TRIM3#

 2
69260-1206003

AE82,CE80

GRAY,GRAY,TRIM1#

 2
69260-1402034

AE82,CE80

BLUE,BLUE,TRIM8#

 2
69260-1402023

AE82,CE80

GRAY,GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AE82,CE80

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-16010

AE82,CE80

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-12180

AE82,CE80

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-12180

AE82,CE80

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-12170

AE82,CE80

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-12170

AE82,CE80

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-12130

AE82,CE80

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69902-12080

AE82,CE80

 1
69971A - FILLER, FRONT DOOR GLASS CHANNEL
69971-12060

AE82,CE80

 2
Common parts
90105-08077
90168-50024
91651-40610
91651-40612
Linked diagrams
8511
