AE82L-EEHNCK (1983)
Toyota Corolla Sed/Lb
Production
Aug 1983
-
Aug 1984
Engine
4ALC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )4ALC..CND

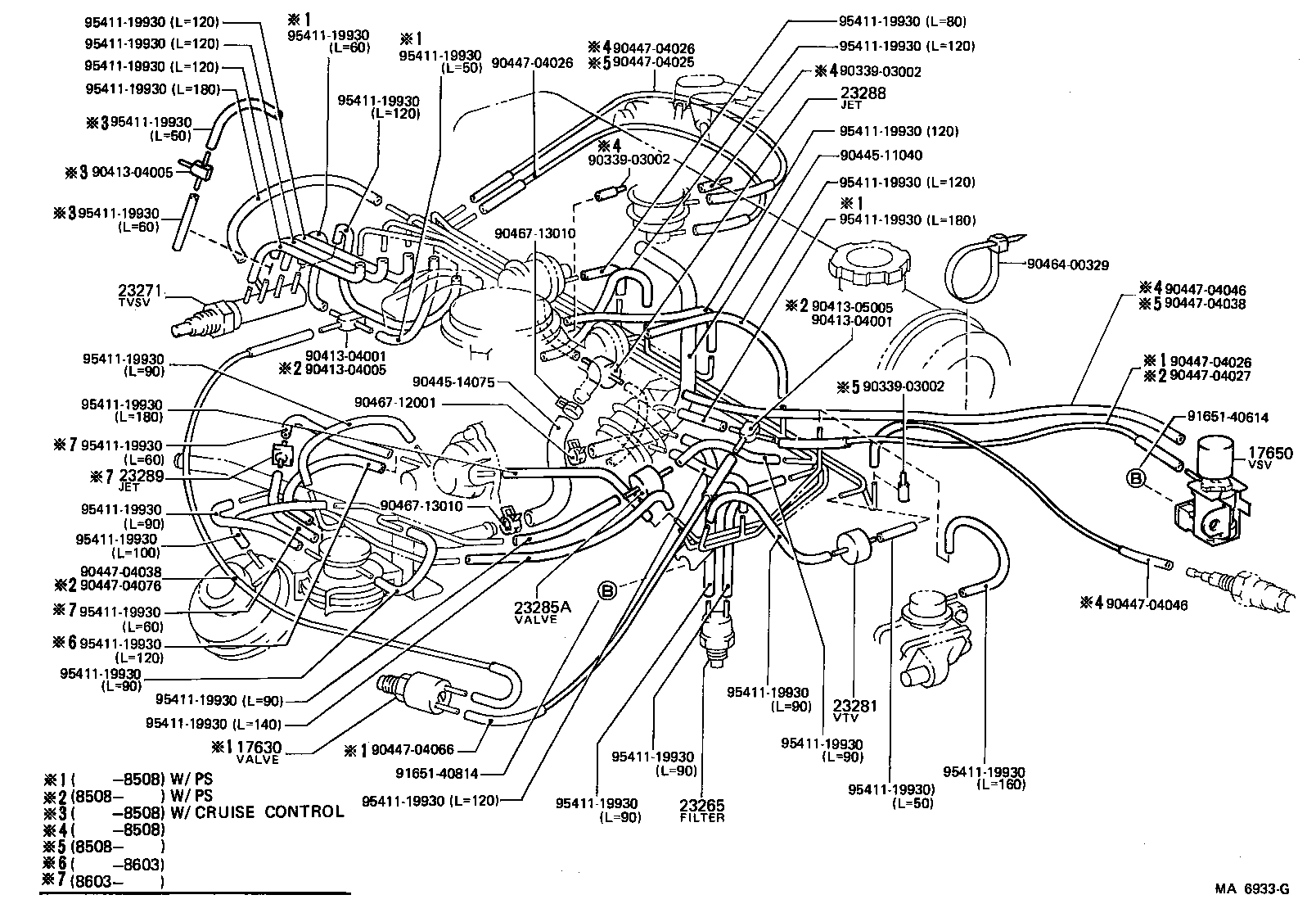

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
4ALC..AE82 W/PS |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12270 |
4ALC..AE82 IDLE-UP |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4ALC..AE82 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4ALC..AE82 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
4ALC..AE82 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4ALC..AE82 |
3 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04003 |
4ALC..AE82..CND |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04001 | ||||
| 90413-04005 | ||||
| 90413-05005 | ||||
| 90445-11040 | ||||
| 90445-14075 | ||||
| 90447-04025 | ||||
| 90447-04026 | ||||
| 90447-04027 | ||||
| 90447-04038 | ||||
| 90447-04046 | ||||
| 90447-04066 | ||||
| 90447-04076 | ||||
| 90464-00329 | ||||
| 90467-12001 | ||||
| 90467-13010 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 95411-19930 | ||||
(8308- )4ALC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
