AE82L-EEHNCK (1983)
Toyota Corolla Sed/Lb
Production
Aug 1983
-
Aug 1984
Engine
4ALC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308-8508)1CLC ; (8308- )4ALC..CND

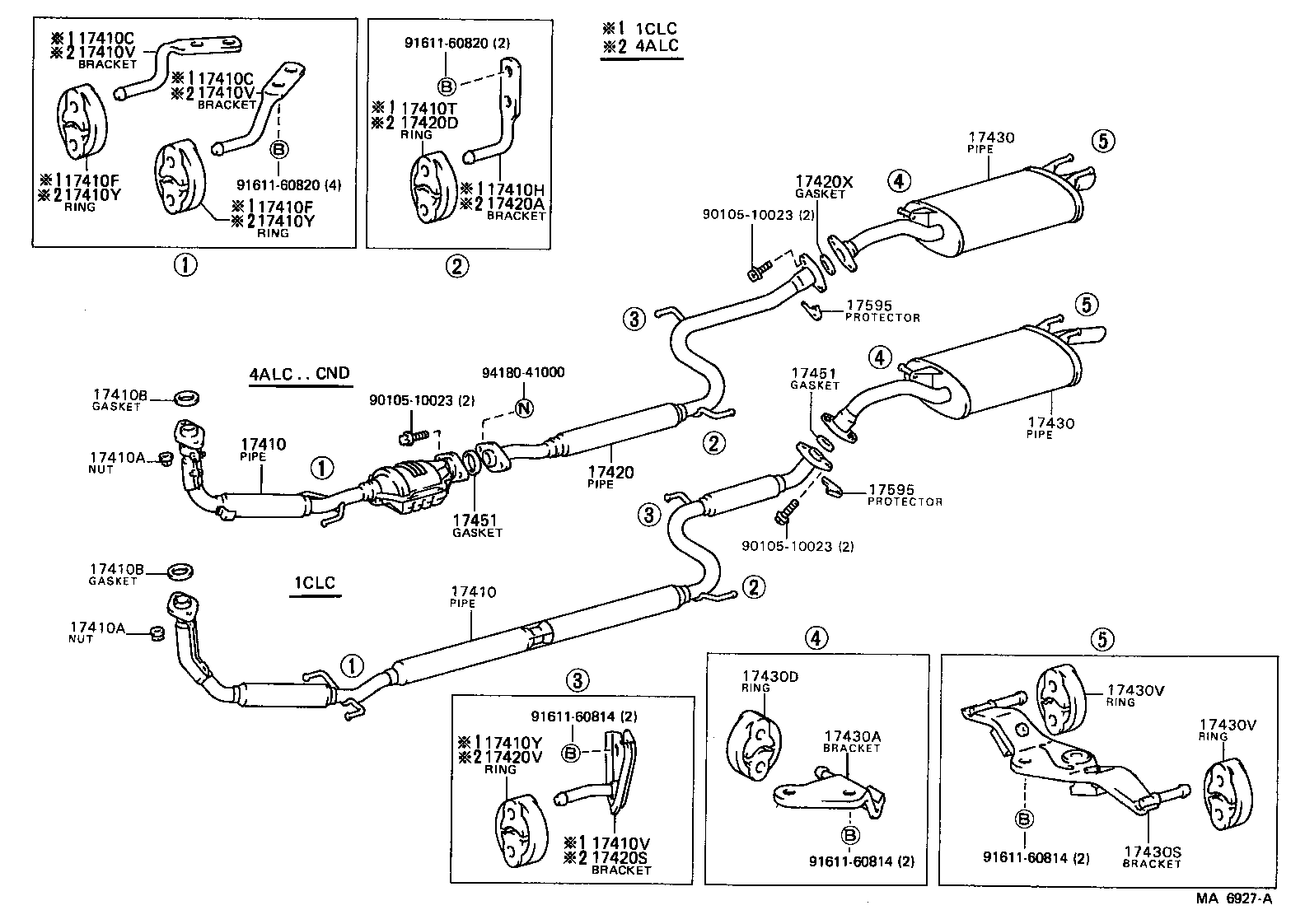

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-16100 |
4ALC..AE82..CND |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-16100 |
4ALC..AE82..CND |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10010 |
4ALC,1CLC..AE82,CE80 |
2 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10010 |
4ALC,1CLC..AE82,CE80 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
4ALC,1CLC..AE82,CE80 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
4ALC,1CLC..AE82,CE80 |
1 | ||
| 17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17588-14010 |
4ALC..AE82 LH |
1 | ||
| 17587-14010 |
4ALC..AE82 RH |
1 | ||
| 17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17588-14010 |
4ALC..AE82 LH |
1 | ||
| 17587-14010 |
4ALC..AE82 RH |
1 | ||
| 17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17588-14010 |
4ALC..AE82 LH |
1 | ||
| 17587-14010 |
4ALC..AE82 RH |
1 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17565-16020 |
4ALC..AE82 |
2 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17565-16020 |
4ALC..AE82 |
2 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17565-16020 |
4ALC..AE82 |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-16020 |
4ALC..AE82..CND |
1 | ||
| 17420A - BRACKET, EXHAUST PIPE CENTER, FRONT | ||||
| 17572-14010 |
4ALC..AE82 |
1 | ||
| 17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT | ||||
| 17565-63070 |
4ALC..AE82 |
1 | ||
| 17420S - BRACKET, EXHAUST PIPE CENTER, REAR | ||||
| 17507-15020 |
4ALC..AE82 |
1 | ||
| 17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR | ||||
| 17565-63070 |
4ALC..AE82 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
4ALC..AE82 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-16070 |
4ALC..AE82..CND |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-16070 |
4ALC..AE82..CND |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17508-64020 |
4ALC,1CLC..AE82,CE80 |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-63030 |
4ALC,1CLC..AE82,CE80 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17509-16010 |
4ALC,1CLC..AE82,CE80 |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-63030 |
4ALC,1CLC..AE82,CE80 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-63030 |
4ALC,1CLC..AE82,CE80 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
4ALC..AE82..CND |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
4ALC..AE82..CND |
1 | ||
| 17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3 | ||||
| 17597-14010 |
4ALC,1CLC..AE82,CE80 |
1 | ||
| 17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3 | ||||
| 17597-14010 |
4ALC,1CLC..AE82,CE80 |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 94180-41000 | ||||
