AE82L-EEHNCK (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Aug 1984
Engine 4ALC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4ALC

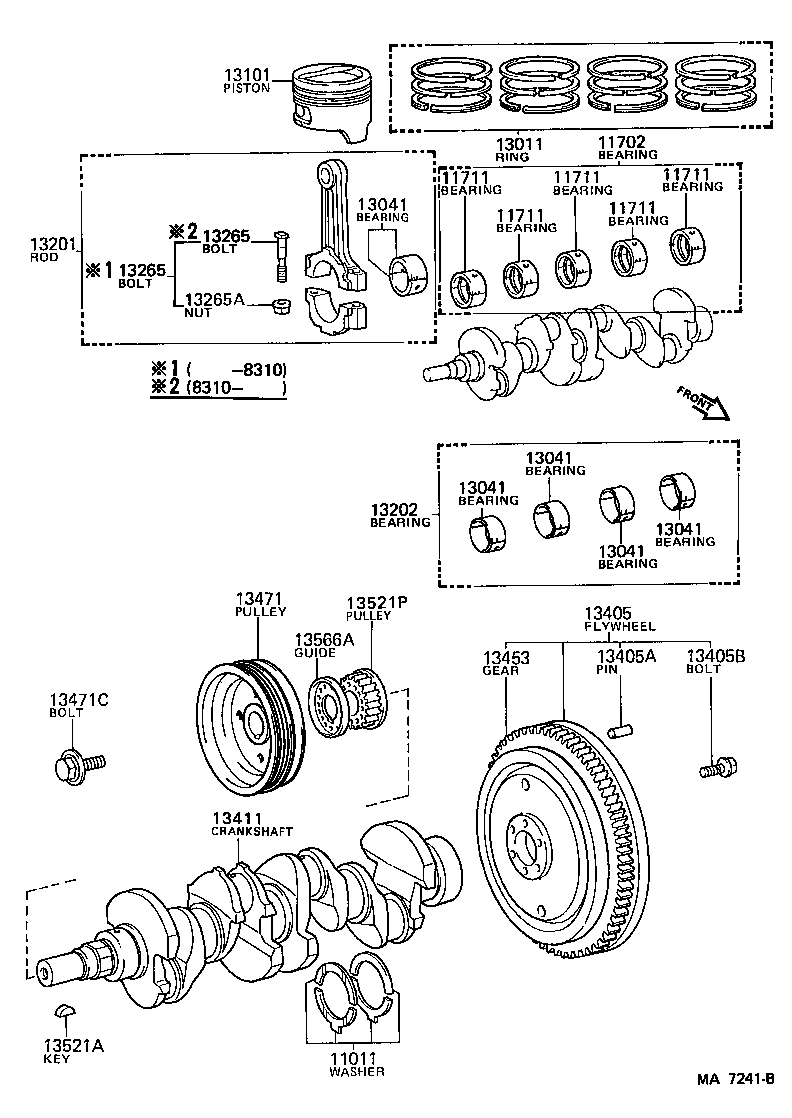

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13201 13202 13265 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471C 13521A 13521P 13566A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-15010

4ALC..AE82

STD

 1
11702 - BEARING SET, CRANKSHAFT
11704-15050

4ALC..AE82

U/S 0.25,U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-1601001

4ALC..AE82

MARK"1",MARK 1

 5
11701-1503003

4ALC..AE82

MARK"3",MARK 3

 5
11701-1503001

4ALC..AE82

MARK"1",MARK 1

 5
11701-1601002

4ALC..AE82

MARK"2",MARK 2

 5
11701-1503002

4ALC..AE82

MARK"2",MARK 2

 5
11701-1601003

4ALC..AE82

MARK"3",MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-1601001

4ALC..AE82

MARK"1",MARK 1

 5
11701-1503003

4ALC..AE82

MARK"3",MARK 3

 5
11701-1503001

4ALC..AE82

MARK"1",MARK 1

 5
11701-1601002

4ALC..AE82

MARK"2",MARK 2

 5
11701-1503002

4ALC..AE82

MARK"2",MARK 2

 5
11701-1601003

4ALC..AE82

MARK"3",MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-1601001

4ALC..AE82

MARK"1",MARK 1

 5
11701-1503003

4ALC..AE82

MARK"3",MARK 3

 5
11701-1503001

4ALC..AE82

MARK"1",MARK 1

 5
11701-1601002

4ALC..AE82

MARK"2",MARK 2

 5
11701-1503002

4ALC..AE82

MARK"2",MARK 2

 5
11701-1601003

4ALC..AE82

MARK"3",MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-1601001

4ALC..AE82

MARK"1",MARK 1

 5
11701-1503003

4ALC..AE82

MARK"3",MARK 3

 5
11701-1503001

4ALC..AE82

MARK"1",MARK 1

 5
11701-1601002

4ALC..AE82

MARK"2",MARK 2

 5
11701-1503002

4ALC..AE82

MARK"2",MARK 2

 5
11701-1601003

4ALC..AE82

MARK"3",MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-1601001

4ALC..AE82

MARK"1",MARK 1

 5
11701-1503003

4ALC..AE82

MARK"3",MARK 3

 5
11701-1503001

4ALC..AE82

MARK"1",MARK 1

 5
11701-1601002

4ALC..AE82

MARK"2",MARK 2

 5
11701-1503002

4ALC..AE82

MARK"2",MARK 2

 5
11701-1601003

4ALC..AE82

MARK"3",MARK 3

 5
13011 - RING SET, PISTON
13011-16011

4ALC..AE82

STD

 1
13013-16011

4ALC..AE82

O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-1501103

4ALC..AE82

MARK"3",MARK 3

 4
13041-1501101

4ALC..AE82

MARK"1",MARK 1

 4
13041-1501102

4ALC..AE82

MARK"2",MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-1501103

4ALC..AE82

MARK"3",MARK 3

 4
13041-1501101

4ALC..AE82

MARK"1",MARK 1

 4
13041-1501102

4ALC..AE82

MARK"2",MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-1501103

4ALC..AE82

MARK"3",MARK 3

 4
13041-1501101

4ALC..AE82

MARK"1",MARK 1

 4
13041-1501102

4ALC..AE82

MARK"2",MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-1501103

4ALC..AE82

MARK"3",MARK 3

 4
13041-1501101

4ALC..AE82

MARK"1",MARK 1

 4
13041-1501102

4ALC..AE82

MARK"2",MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-1501103

4ALC..AE82

MARK"3",MARK 3

 4
13041-1501101

4ALC..AE82

MARK"1",MARK 1

 4
13041-1501102

4ALC..AE82

MARK"2",MARK 2

 4
13101 - PISTON SUB-ASSY, W/PIN
13103-16010

4ALC..AE82

O/S 0.50,O/S 0.50

 4
13101-16010

4ALC..AE82

STD,STD

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-19045

4ALC..AE82

 4
13202 - BEARING SET, CONNECTING ROD
13204-15011

4ALC..AE82

U/S 0.25,U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-19015

4ALC..AE82

 8
13265 - BOLT, CONNECTING ROD
13265-19015

4ALC..AE82

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-08014

4ALC..AE82

 8
13411 - CRANKSHAFT
13411-15030

4ALC..AE82

 1
13471 - PULLEY, CRANKSHAFT
13470-15010

4ALC..AE82

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12012

4ALC..AE82

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

4ALC..AE82

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-15010

4ALC..AE82

 1
13566A - GUIDE, TIMING BELT
13566-15010

4ALC..AE82

 1
