AE82L-EEHNCK (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Aug 1984
Engine 4ALC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4ALC..ATM

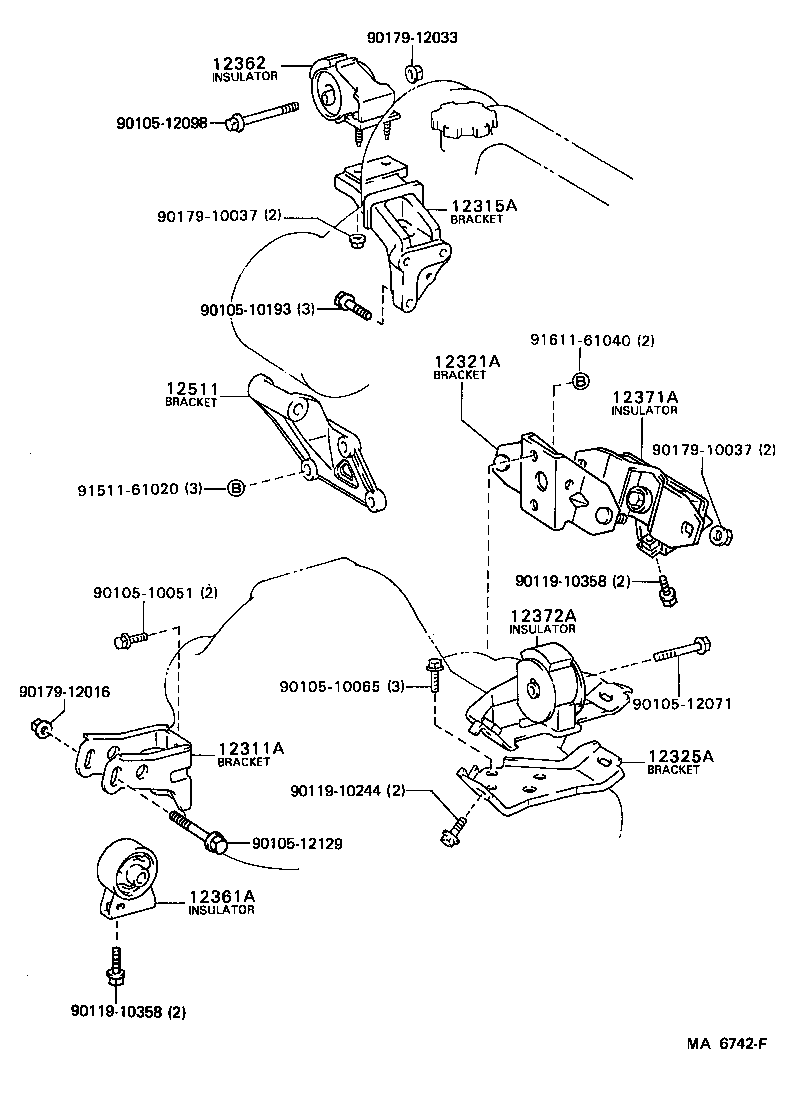

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12325A 12361A 12362 12371A 12372A 12511 9010510051 9010510065 9010510193 9010512071 9010512098 9010512129 9011910244 9011910358 9011910358 9017910037 9017910037 9017912016 9017912033 9151161020 9161161040
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-15080

4ALC..AE82

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15050

4ALC..AE82

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15020

4ALC..AE82..ATM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-15020

4ALC..AE82..3FC

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-15090

4ALC..AE82..3FC

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-15030

4ALC..AE82

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-15120

4ALC..AE82..ATM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15050

4ALC..AE82..3FC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-16020

4ALC..AE82

 1
Common parts
90105-10051
90105-10065
90105-10193
90105-12071
90105-12098
90105-12129
90119-10244
90119-10358
90179-10037
90179-12016
90179-12033
91511-61020
91611-61040
