ZRE142L-DEPNKK (2010)

Toyota Corolla Nap

Production Dec 2010 - Aug 2013
Engine 2ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )2ZRFE..NAP..4FC

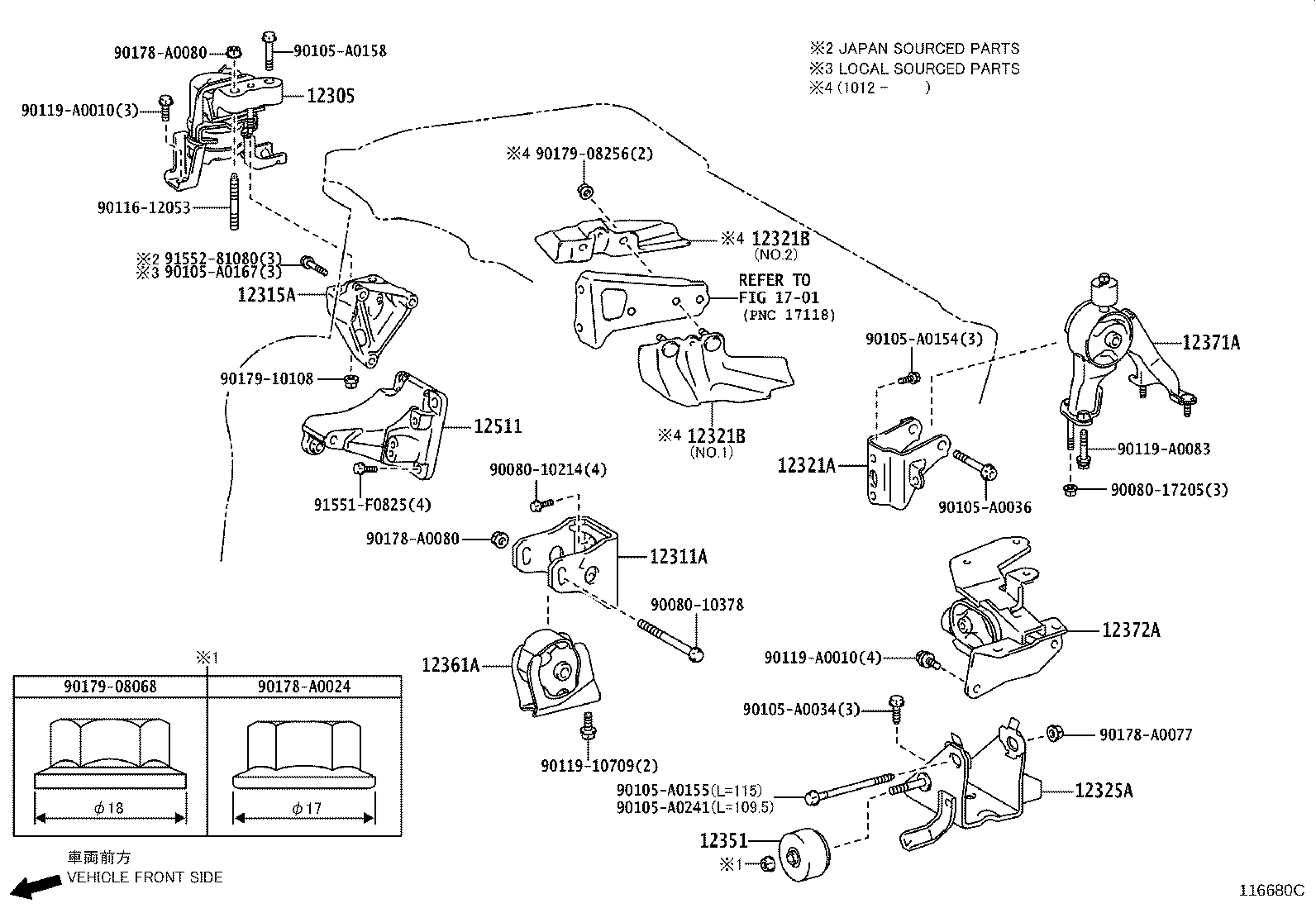

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12321B 12321B 12325A 12351 12361A 12371A 12372A 12511 1701 9008010214 9008010378 9008017205 90105A0034 90105A0036 90105A0154 90105A0155 90105A0158 90105A0167 90105A0241 9011612053 9011910709 90119A0010 90119A0010 90119A0083 90178A0024 90178A0077 90178A0080 90178A0080 9017908068 9017908256 9017910108 91551F0825 9155281080
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0T050

2ZRFE..ZRE142..NAP

 1
12305-0T051

2ZRFE..ZRE142..NAP

 1
12305-0T050

2ZRFE..ZRE142..NAP

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0T070

2ZRFE..ZRE142..NAP..4FC

 1
12311-0T070

2ZRFE..ZRE142..NAP..4FC

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37030

2ZRFE..ZRE142..NAP

 1
12315-37030

2ZRFE..ZRE142..NAP

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0T070

2ZRFE..ZRE142..NAP..4FC

 1
12321-0T070

2ZRFE..ZRE142..NAP..4FC

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-12051

2ZRFE..ZRE142..NAP

NO.2

 1
43409-02010

2ZRFE..ZRE142..NAP

NO.1

 1
43409-12060

2ZRFE..ZRE142..NAP

NO.1

 1
43498-02020

2ZRFE..ZRE142..NAP

NO.2

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-12051

2ZRFE..ZRE142..NAP

NO.2

 1
43409-02010

2ZRFE..ZRE142..NAP

NO.1

 1
43409-12060

2ZRFE..ZRE142..NAP

NO.1

 1
43498-02020

2ZRFE..ZRE142..NAP

NO.2

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0T080

2ZRFE..ZRE142..NAP..4FC

 1
12325-0T080

2ZRFE..ZRE142..NAP..4FC

 1
12351 - DAMPER, ENGINE MOUNTING
12351-37120

2ZRFE..ZRE142..NAP..4FC

 1
12351-27050

2ZRFE..ZRE142..NAP..4FC

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0T060

2ZRFE..ZRE142..NAP..4FC

 1
12361-0T060

2ZRFE..ZRE142..NAP..4FC

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0T040

2ZRFE..ZRE142..NAP..4FC

 1
12371-0T040

2ZRFE..ZRE142..NAP..4FC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0T060

2ZRFE..ZRE142..NAP..4FC

 1
12372-0T060

2ZRFE..ZRE142..NAP..4FC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-37010

2ZRFE..ZRE142..NAP

 1
12511-37010

2ZRFE..ZRE142..NAP

(J)

 1
12511-0T030

2ZRFE..ZRE142..NAP

(L)

 1
Common parts
90080-10214
90080-10378
90080-17205
90105-A0034
90105-A0036
90105-A0154
90105-A0155
90105-A0158
90105-A0167
90105-A0241
90116-12053
90119-10709
90119-A0010
90119-A0083
90178-A0024
90178-A0077
90178-A0080
90179-08068
90179-08256
90179-10108
91551-F0825
91552-81080
Linked diagrams
1701
