ZRE142L-DEPNKK (2010)
Toyota Corolla Nap

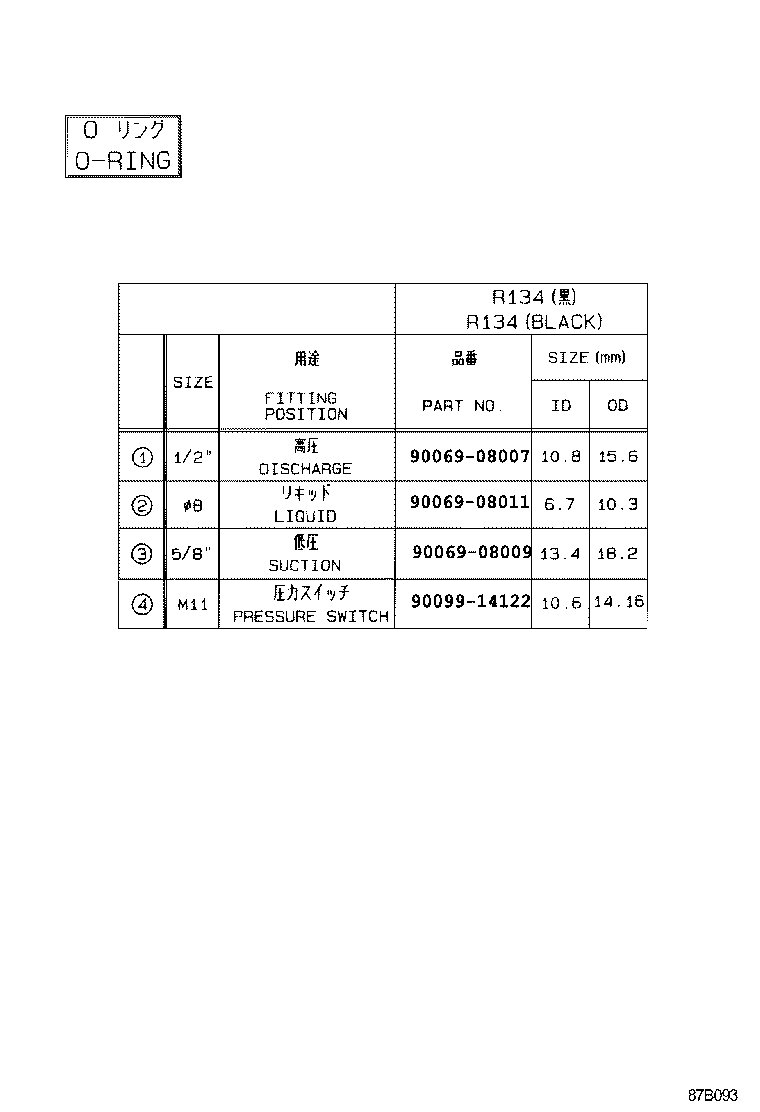

ILLUST NO. 2 OF 2(0801- )NAP
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90069-08007 | ||||
| 90069-08009 | ||||
| 90069-08011 | ||||
| 90099-14122 | ||||

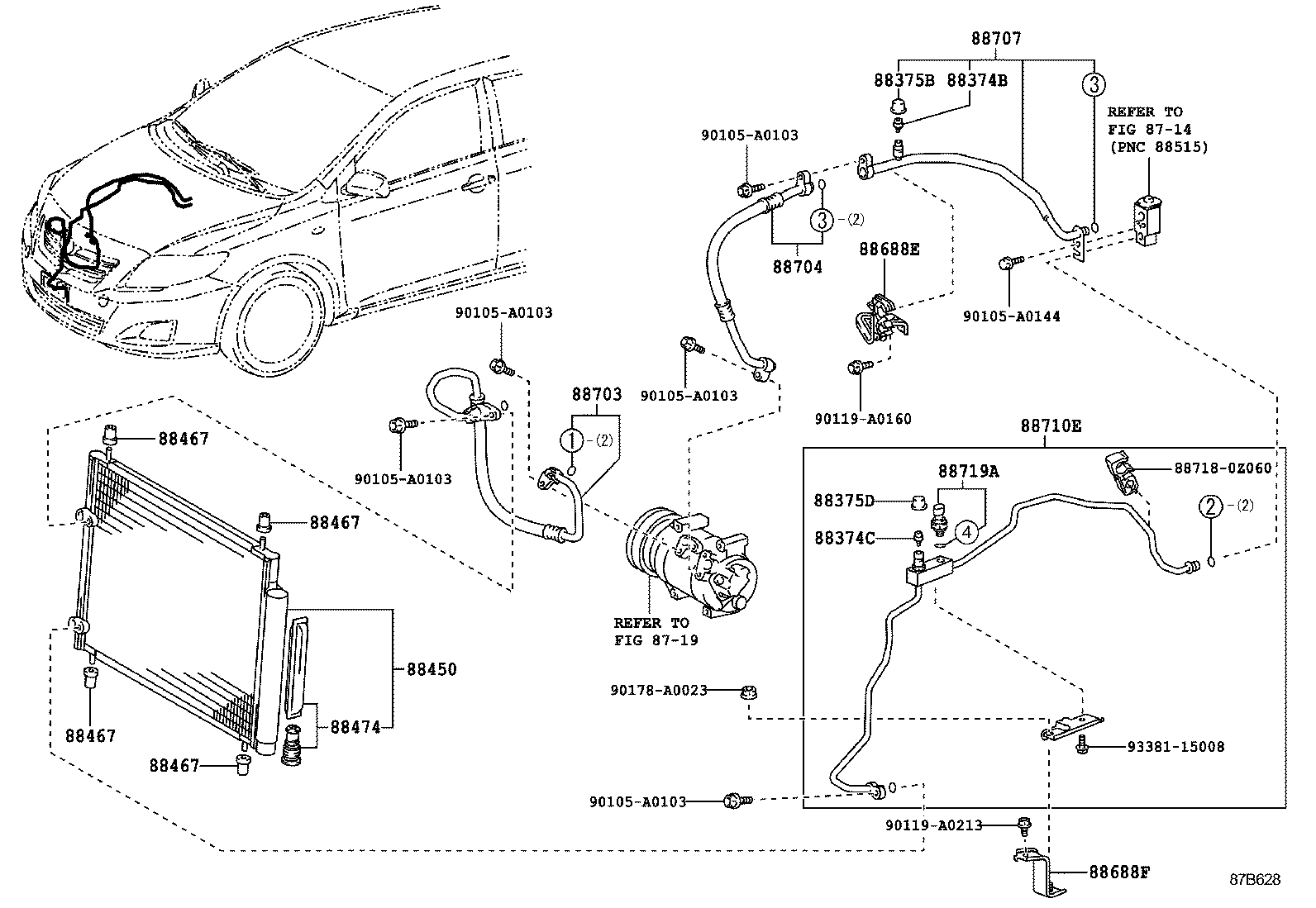

ILLUST NO. 1 OF 2(1012- )ZRE142..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88374-30010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88374-30010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88375-30290 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-02060 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88375-02060 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-02330 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88450-02330 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
4 | ||
| 16716-28010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
4 | ||
| 16716-28010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
4 | ||
| 16716-28010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
4 | ||
| 16716-28010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88474-17010 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-0Z160 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88688-0Z160 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-0Z230 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88688-0Z230 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-02460 |
ZRE142..NAP..(LE,S,STD) |
1 | ||
| 88703-02690 |
ZRE142..NAP..(LE,S,STD) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-02690 |
ZRE142..NAP..(LE,S,STD) |
1 | ||
| 88704-02690 |
ZRE142..NAP..(LE,S,STD) |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-02070 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88707-02070 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0Z020 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88710-0Z020 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| 88719-33020 |
AZE141,ZRE142..NAP..(LE,S,STD,XRS) |
1 | ||
| Common parts | ||||
| 88718-0Z060 | ||||
| 90105-A0103 | ||||
| 90105-A0144 | ||||
| 90119-A0160 | ||||
| 90119-A0213 | ||||
| 90178-A0023 | ||||
| 93381-15008 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
