ZRE142L-DEPNKK (2010)
Toyota Corolla Nap

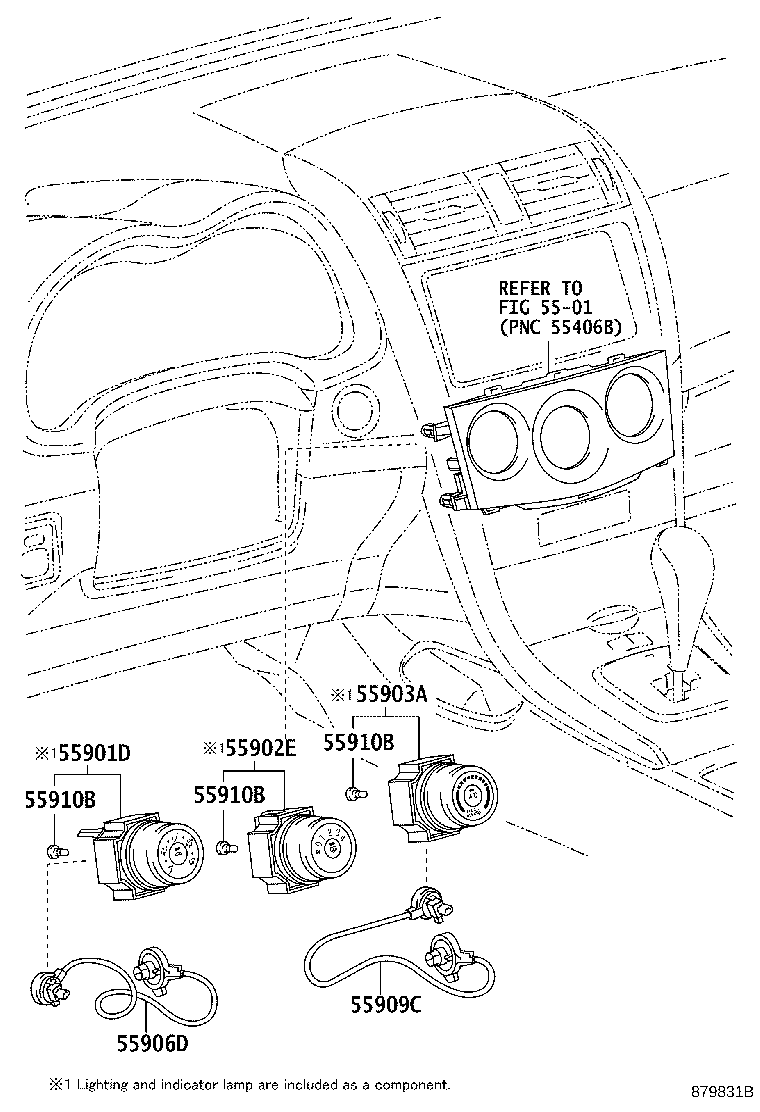

ILLUST NO. 1 OF 3(0801- )NAP
CONTROL PANEL---MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901D - CONTROL SUB-ASSY, HEATER, NO.1 | ||||
| 55901-02060 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 55901-02030 |
ZRE142..NAP..LE;AZE141,ZRE142..NAP..(S,XRS)..USA |
1 | ||
| 55901-02030 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 55901-02060 |
AZE141,ZRE142..NAP |
1 | ||
| 55902E - CONTROL SUB-ASSY, HEATER, NO.2 | ||||
| 55902-02070 |
AZE141,ZRE142..NAP |
1 | ||
| 55902-02030 |
ZRE142..NAP..LE;AZE141,ZRE142..NAP..(S,XRS)..USA |
1 | ||
| 55902-02070 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 55902-02030 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-02150 |
ZRE142..NAP..(LE,S)..CND |
1 | ||
| 55903-02150 |
ZRE142..NAP..LE..CND AIR CONDITIONER-AUTO |
1 | ||
| 55903-02050 |
ZRE142..NAP..LE..CND AIR CONDITIONER-AUTO |
1 | ||
| 55903-02050 |
ZRE142..NAP..LE..CND |
1 | ||
| 55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2 | ||||
| 55906-0K010 |
AZE141,ZRE142..NAP |
1 | ||
| 55906-0K010 |
ZRE142..NAP;AZE141..NAP..USA |
1 | ||
| 55906-0K010 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 55906-0K010 |
ZRE142..NAP;AZE141..NAP..USA (L) |
1 | ||
| 55906-0K010 |
AZE141..NAP..USA;ZRE142..NAP..(LE,S) AIR CONDITIONER-AUTO |
1 | ||
| 55906-26060 |
ZRE142..NAP;AZE141..NAP..USA (J) |
1 | ||
| 55906-0K010 |
AZE141..NAP..USA;ZRE142..NAP..(LE,S) AIR CONDITIONER-AUTO,(L) |
1 | ||
| 55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-0K010 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 55909-0K010 |
AZE141,ZRE142..NAP |
1 | ||
| 55909-0K010 |
AZE141..NAP..USA;ZRE142..NAP..(LE,S) AIR CONDITIONER-AUTO |
1 | ||
| 55909-0K010 |
ZRE142..NAP;AZE141..NAP..USA (L) |
1 | ||
| 55909-26080 |
ZRE142..NAP;AZE141..NAP..USA (J) |
1 | ||
| 55909-0K010 |
AZE141..NAP..USA;ZRE142..NAP..(LE,S) AIR CONDITIONER-AUTO,(L) |
1 | ||
| 55909-0K010 |
ZRE142..NAP;AZE141..NAP..USA |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01122 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
3 | ||
| 90010-01122 |
AZE141,ZRE142..NAP |
3 | ||
| 90010-01122 |
ZRE142..NAP;AZE141..NAP..USA |
3 | ||
| 90010-01122 |
ZRE142..NAP..LE;ZRE142..NAP..S..CND AIR CONDITIONER-AUTO |
3 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01122 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
3 | ||
| 90010-01122 |
AZE141,ZRE142..NAP |
3 | ||
| 90010-01122 |
ZRE142..NAP;AZE141..NAP..USA |
3 | ||
| 90010-01122 |
ZRE142..NAP..LE;ZRE142..NAP..S..CND AIR CONDITIONER-AUTO |
3 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01122 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
3 | ||
| 90010-01122 |
AZE141,ZRE142..NAP |
3 | ||
| 90010-01122 |
ZRE142..NAP;AZE141..NAP..USA |
3 | ||
| 90010-01122 |
ZRE142..NAP..LE;ZRE142..NAP..S..CND AIR CONDITIONER-AUTO |
3 | ||
| Linked diagrams | ||||
| 5501 | ||||

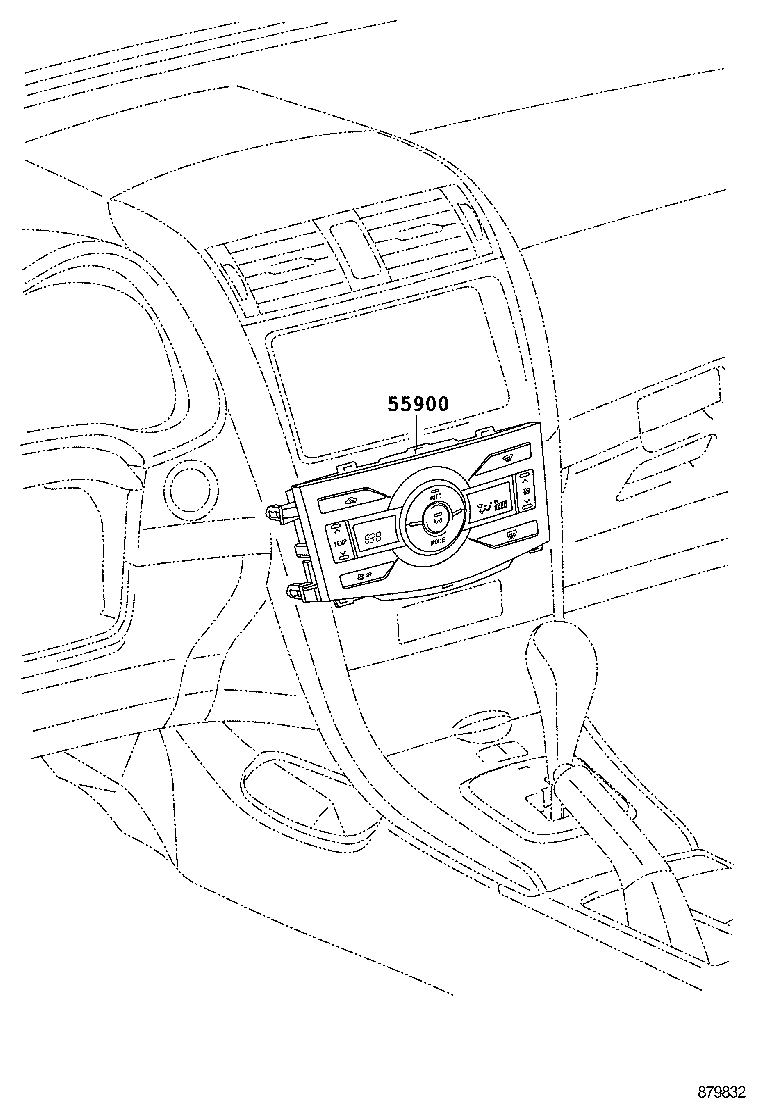

ILLUST NO. 1 OF 2(0801- )NAP..LE ; (1112- )NAP..S,XRS
CONTROL PANEL---AUTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-02340 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 55900-02260 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||

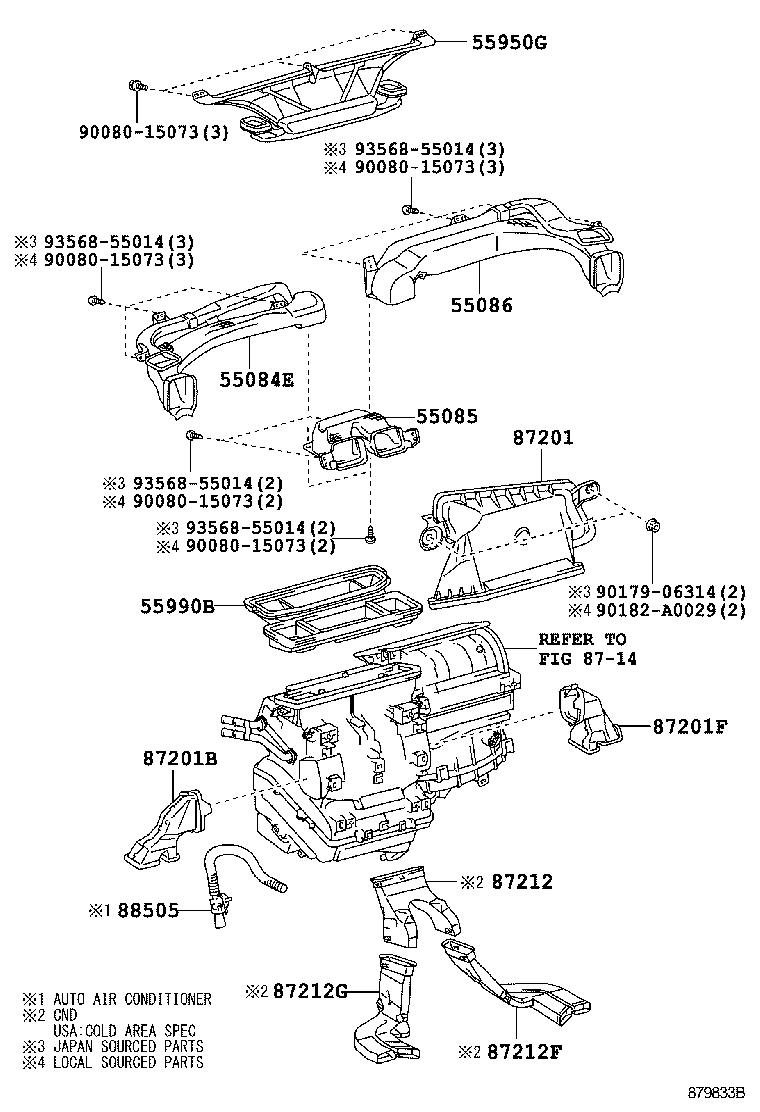

ILLUST NO. 2 OF 3(0801- )NAP
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-02060 |
AZE141,ZRE142..NAP |
1 | ||
| 55084-02060 |
AZE141,ZRE142..NAP |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 55085-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-02110 |
AZE141,ZRE142..NAP |
1 | ||
| 55086-02110 |
AZE141,ZRE142..NAP |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-02190 |
AZE141,ZRE142..NAP |
1 | ||
| 55950-02190 |
AZE141,ZRE142..NAP |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 55990-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87220-02070 |
AZE141,ZRE142..NAP |
1 | ||
| 87220-02070 |
AZE141,ZRE142..NAP |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87211-02320 |
AZE141,ZRE142..NAP |
1 | ||
| 87211-02320 |
AZE141,ZRE142..NAP |
1 | ||
| 87211-02321 |
AZE141,ZRE142..NAP |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87211-02330 |
AZE141,ZRE142..NAP |
1 | ||
| 87211-02330 |
AZE141,ZRE142..NAP |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87215-02100 |
AZE141,ZRE142..NAP..CND |
1 | ||
| 87215-02100 |
AZE141,ZRE142..NAP..CND |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87212-02120 |
AZE141,ZRE142..NAP..CND |
1 | ||
| 87212-02120 |
AZE141,ZRE142..NAP..CND |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-02120 |
AZE141,ZRE142..NAP..CND |
1 | ||
| 87213-02120 |
AZE141,ZRE142..NAP..CND |
1 | ||
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-02070 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 88505-02070 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90179-06314 | ||||
| 90182-A0029 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||

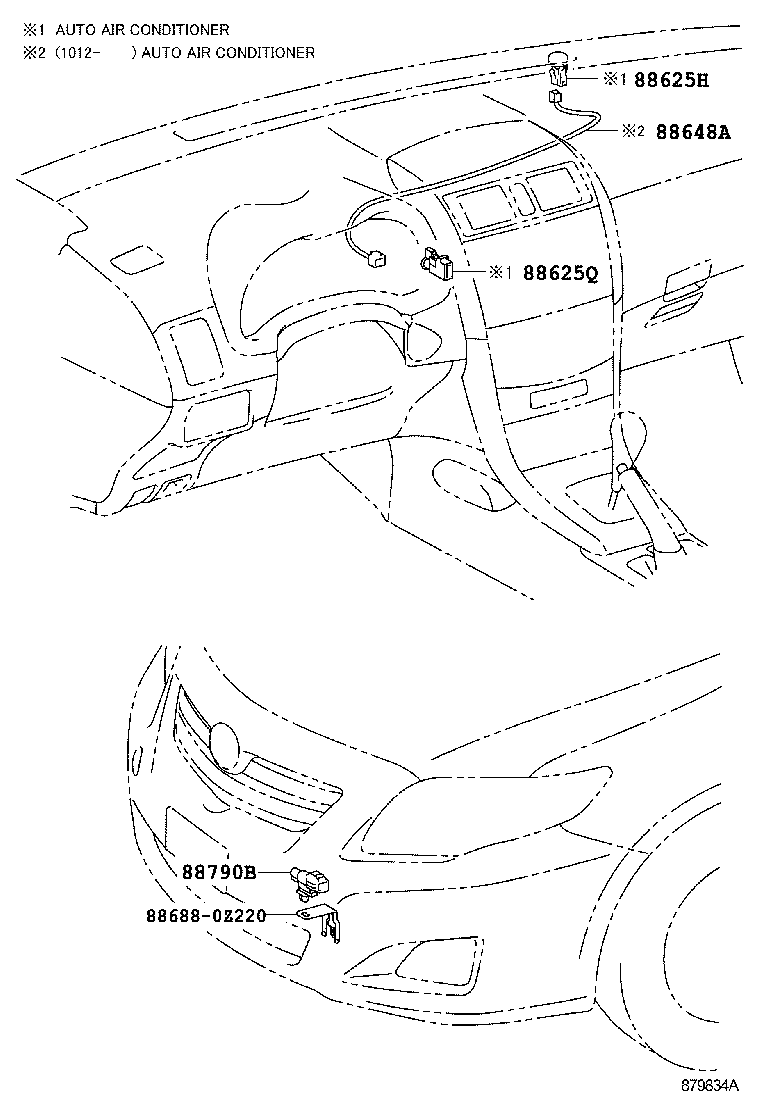

ILLUST NO. 3 OF 3(0801- )NAP
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 88625-47031 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 88625-47021 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 88625-06040 |
AZE141,ZRE142..NAP..(LE,S,XRS) AIR CONDITIONER-AUTO |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-02410 |
ZRE142..NAP..LE..CND AIR CONDITIONER-AUTO |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
AZE141,ZRE142..NAP |
1 | ||
| 88790-22131 |
AZE141,ZRE142..NAP |
1 | ||
| Common parts | ||||
| 88688-0Z220 | ||||
