ZRE142L-DEPNKK (2010)

Toyota Corolla Nap

Production Dec 2010 - Aug 2013
Engine 2ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )NAP..LE,S ; (1112- )AZE141..NAP..CND ; (1208- )AZE141..NAP

Click highlighted areas on diagram

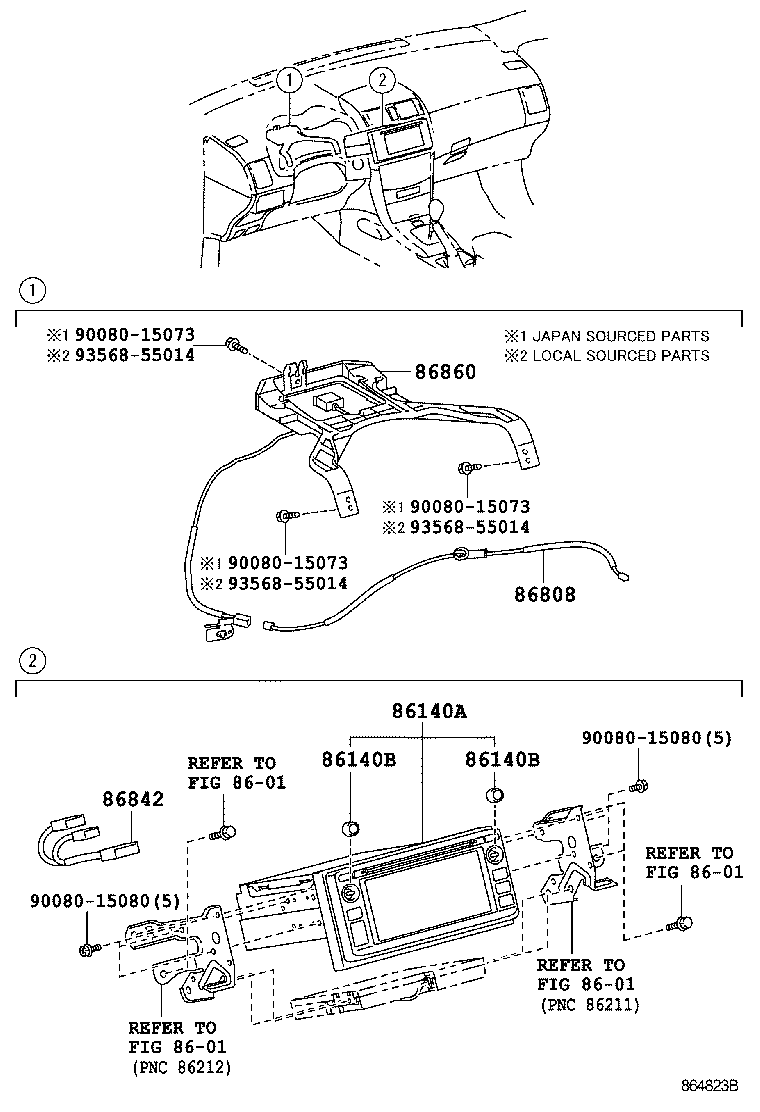

diagram 8601 8601 8601 8601 86140A 86140B 86140B 86808 86842 86860 9008015073 9008015073 9008015073 9008015080 9008015080 9356855014 9356855014 9356855014
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-02150

AZE141,ZRE142..NAP..(LE,S,XRS)

PANASONIC,ID=57056

 1
86140-02120

AZE141,ZRE142..NAP..(LE,S,XRS)..CND

PIONEER,ID=P10314,AUDIO-DISPLAY AUDIO 6SPEAKER

 1
86140-02121

ZRE142..NAP..(LE,S)..CND

PIONEER,ID=P10483,AUDIO-DISPLAY AUDIO 6SPEAKER

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25217

AZE141,ZRE142..NAP..(LE,S,XRS)

 1
90011-25254

AZE141,ZRE142..NAP..(LE,S,XRS)..CND

AUDIO-DISPLAY AUDIO 6SPEAKER

 2
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25217

AZE141,ZRE142..NAP..(LE,S,XRS)

 1
90011-25254

AZE141,ZRE142..NAP..(LE,S,XRS)..CND

AUDIO-DISPLAY AUDIO 6SPEAKER

 2
86808 - CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
86808-02070

AZE141,ZRE142..NAP..(LE,S,XRS)

AUDIO-ENTRY AVN 6SPEAKER

 1
86808-02070

AZE141..NAP..CND;ZRE142..NAP..(LE,S)

AUDIO-DISPLAY AUDIO 6SPEAKER

 1
86842 - WIRE, NAVIGATION, NO.1
86842-YY030

AZE141,ZRE142..NAP..(LE,S,XRS)..CND

AUDIO-DISPLAY AUDIO 6SPEAKER

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-12130

AZE141,ZRE142..NAP..(LE,S,XRS)

AUDIO-ENTRY AVN 6SPEAKER

 1
86860-12130

AZE141..NAP..CND;ZRE142..NAP..(LE,S)

AUDIO-DISPLAY AUDIO 6SPEAKER

 1
Common parts
90080-15073
90080-15080
93568-55014
Linked diagrams
8601
