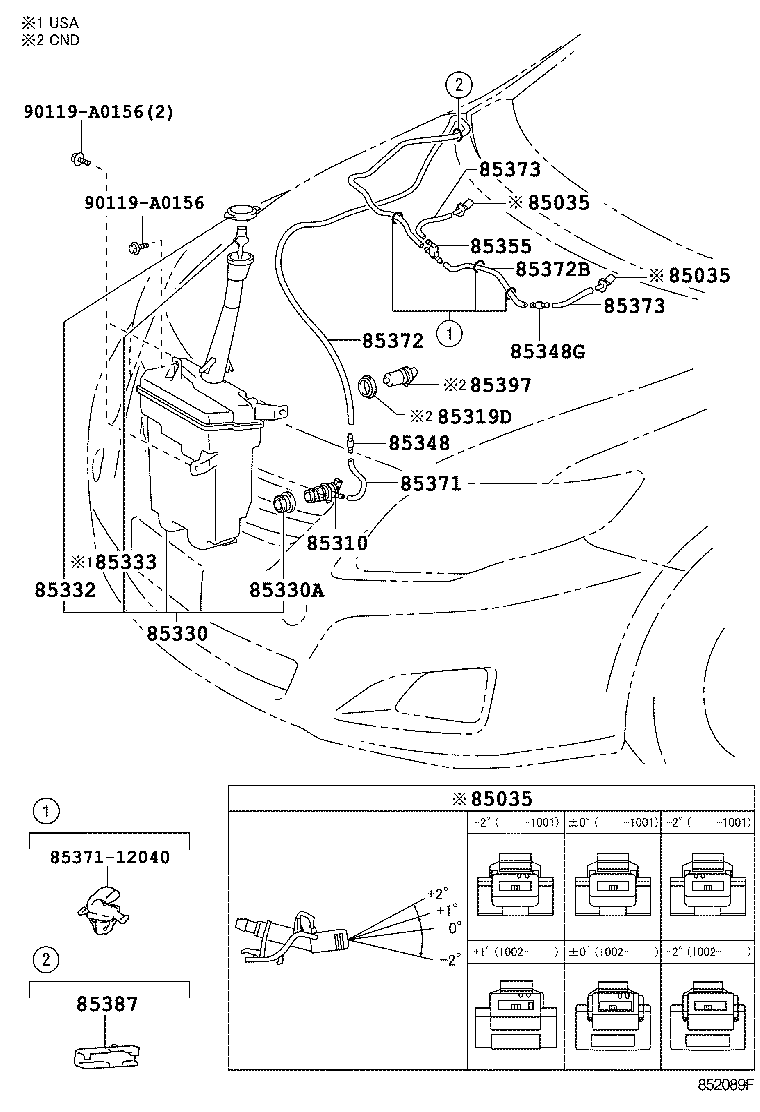

ZRE142L-DEPNKK (2010)
Toyota Corolla Nap
(0801- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12310 |
AZE141,ZRE142..NAP ANGLE -2 |
2 | ||
| 85381-12300 |
AZE141,ZRE142..NAP ANGLE 0 |
2 | ||
| 85381-30110 |
AZE141,ZRE142..NAP ANGLE 0,ANGLE -2 |
2 | ||
| 85381-30150 |
AZE141,ZRE142..NAP ANGLE +2,ANGLE 0 |
2 | ||
| 85381-12350 |
AZE141,ZRE142..NAP ANGLE +1 |
2 | ||
| 85381-12320 |
AZE141,ZRE142..NAP ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12310 |
AZE141,ZRE142..NAP ANGLE -2 |
2 | ||
| 85381-12300 |
AZE141,ZRE142..NAP ANGLE 0 |
2 | ||
| 85381-30110 |
AZE141,ZRE142..NAP ANGLE 0,ANGLE -2 |
2 | ||
| 85381-30150 |
AZE141,ZRE142..NAP ANGLE +2,ANGLE 0 |
2 | ||
| 85381-12350 |
AZE141,ZRE142..NAP ANGLE +1 |
2 | ||
| 85381-12320 |
AZE141,ZRE142..NAP ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12310 |
AZE141,ZRE142..NAP ANGLE -2 |
2 | ||
| 85381-12300 |
AZE141,ZRE142..NAP ANGLE 0 |
2 | ||
| 85381-30110 |
AZE141,ZRE142..NAP ANGLE 0,ANGLE -2 |
2 | ||
| 85381-30150 |
AZE141,ZRE142..NAP ANGLE +2,ANGLE 0 |
2 | ||
| 85381-12350 |
AZE141,ZRE142..NAP ANGLE +1 |
2 | ||
| 85381-12320 |
AZE141,ZRE142..NAP ANGLE +2 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-60190 |
AZE141,ZRE142..NAP |
1 | ||
| 85330-60190 |
AZE141,ZRE142..NAP |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-AA020 |
AZE141,ZRE142..NAP..CND |
1 | ||
| 85319-AA020 |
AZE141,ZRE142..NAP..CND |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-02330 |
AZE141,ZRE142..NAP..CND |
1 | ||
| 85315-02330 |
AZE141,ZRE142..NAP..CND |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
AZE141,ZRE142..NAP |
1 | ||
| 85336-60300 |
AZE141,ZRE142..NAP |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-02300 |
AZE141,ZRE142..NAP..CND |
1 | ||
| 85316-02300 |
AZE141,ZRE142..NAP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85317-02300 |
AZE141,ZRE142..NAP |
1 | ||
| 85317-02300 |
AZE141,ZRE142..NAP |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85317-02300 |
AZE141,ZRE142..NAP |
1 | ||
| 85317-02300 |
AZE141,ZRE142..NAP |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
AZE141,ZRE142..NAP |
1 | ||
| 85321-28020 |
AZE141,ZRE142..NAP |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90068-33032 |
AZE141,ZRE142..NAP L=80 |
1 | ||
| 90068-33032 |
AZE141,ZRE142..NAP L=80 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-33072 |
AZE141,ZRE142..NAP L=1930 |
1 | ||
| 90068-33072 |
AZE141,ZRE142..NAP L=1930 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-33068 |
AZE141,ZRE142..NAP L=510 |
1 | ||
| 90068-33068 |
AZE141,ZRE142..NAP L=510 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-45004 |
AZE141,ZRE142..NAP L=190 |
2 | ||
| 90068-45004 |
AZE141,ZRE142..NAP L=190 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-45004 |
AZE141,ZRE142..NAP L=190 |
2 | ||
| 90068-45004 |
AZE141,ZRE142..NAP L=190 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85387-02260 |
AZE141,ZRE142..NAP |
1 | ||
| 85387-02260 |
AZE141,ZRE142..NAP |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-AA040 |
AZE141,ZRE142..NAP..CND |
1 | ||
| 85397-AA040 |
AZE141,ZRE142..NAP..CND |
1 | ||
| Common parts | ||||
| 85371-12040 | ||||
| 90119-A0156 | ||||
