ZRE142L-DEPNKK (2010)

Toyota Corolla Nap

Production Dec 2010 - Aug 2013
Engine 2ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )NAP

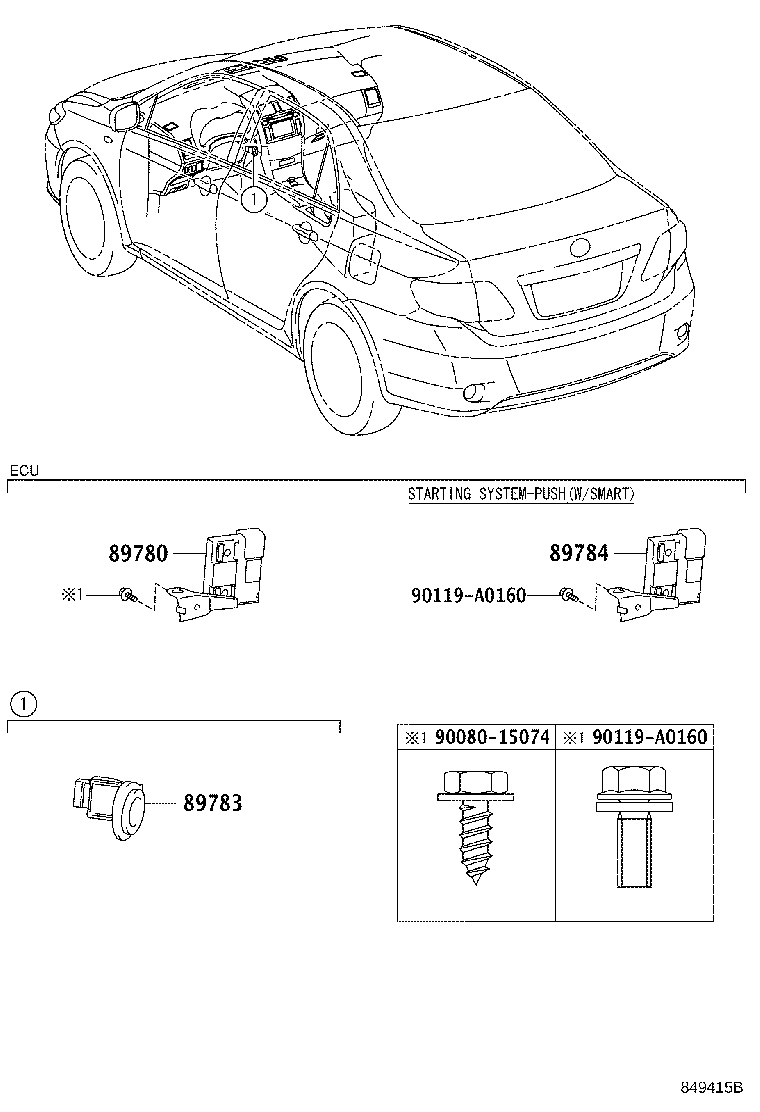

Click highlighted areas on diagram

diagram 89780 89783 89784 9008015074 90119A0160 90119A0160
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-02250

AZE141,ZRE142..NAP

 1
89780-02100

AZE141,ZRE142..NAP

P/N LABEL=8978002100

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-02070

AZE141,ZRE142..NAP

 1
89783-02110

AZE141,ZRE142..NAP

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-02060

ZRE142..NAP..LE..CND

STARTING SYSTEM-PUSH(WITH/SMART)

 1
89784-02030

ZRE142..NAP..LE..CND

STARTING SYSTEM-PUSH(W/SMART)

 1
Common parts
90080-15074
90119-A0160
