ZRE142L-DEPNKK (2010)

Toyota Corolla Nap

Production Dec 2010 - Aug 2013
Engine 2ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )NAP..LE

Click highlighted areas on diagram

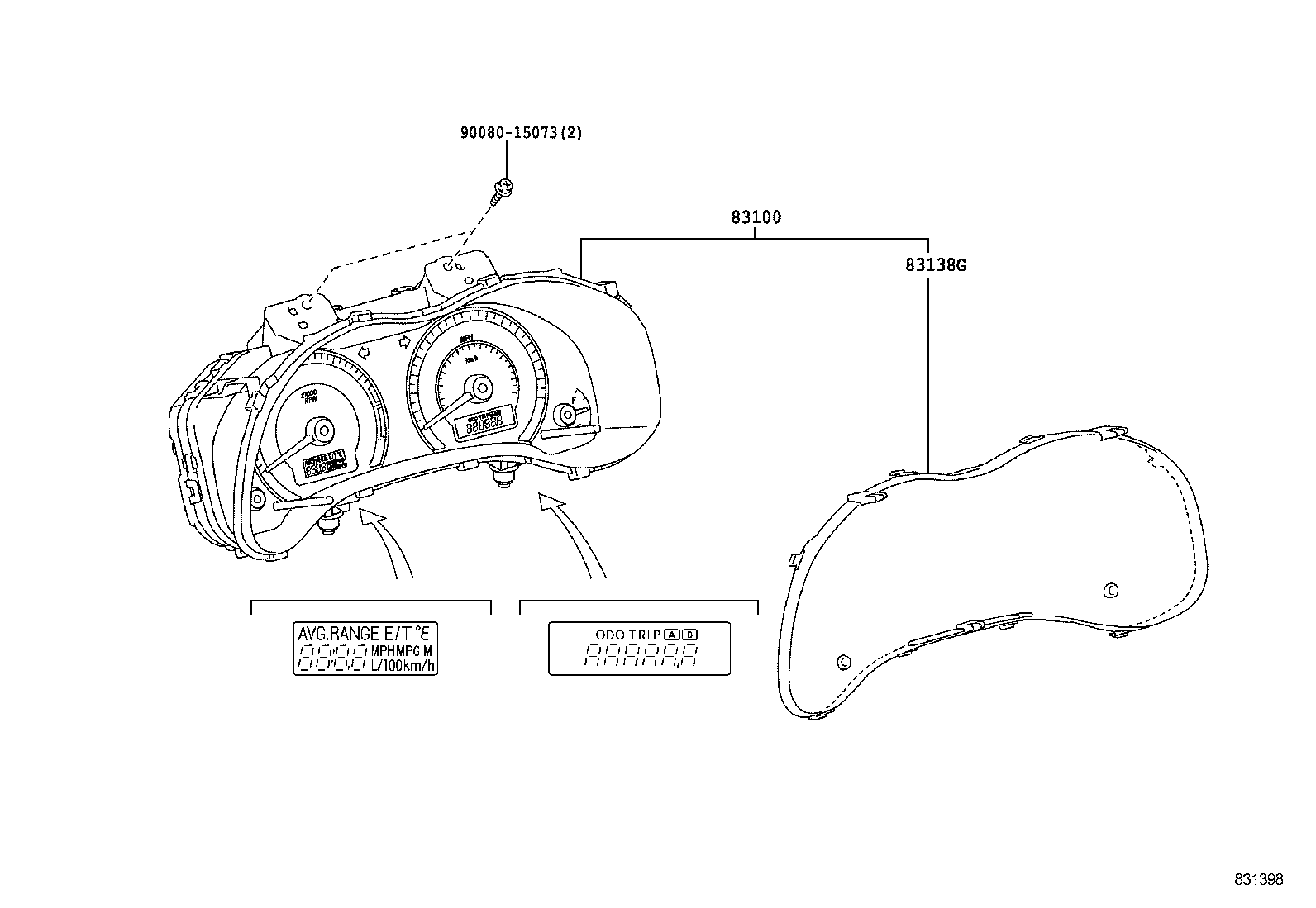

diagram 83100 83138G 9008015073
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-02W20

ZRE142..NAP..LE..CND

 1
83800-0ZK00

ZRE142..NAP..LE..CND

 1
83800-F2160

ZRE142..NAP..(CE,LE)..CND

 1
83138G - GLASS, COMBINATION METER
83852-02V80

AZE141,ZRE142..NAP..(LE,XRS)..CND

 1
83852-02V50

AZE141,ZRE142..NAP

 1
Common parts
90080-15073
