ZRE142L-DEPNKK (2010)
Toyota Corolla Nap
(1012- )NAP

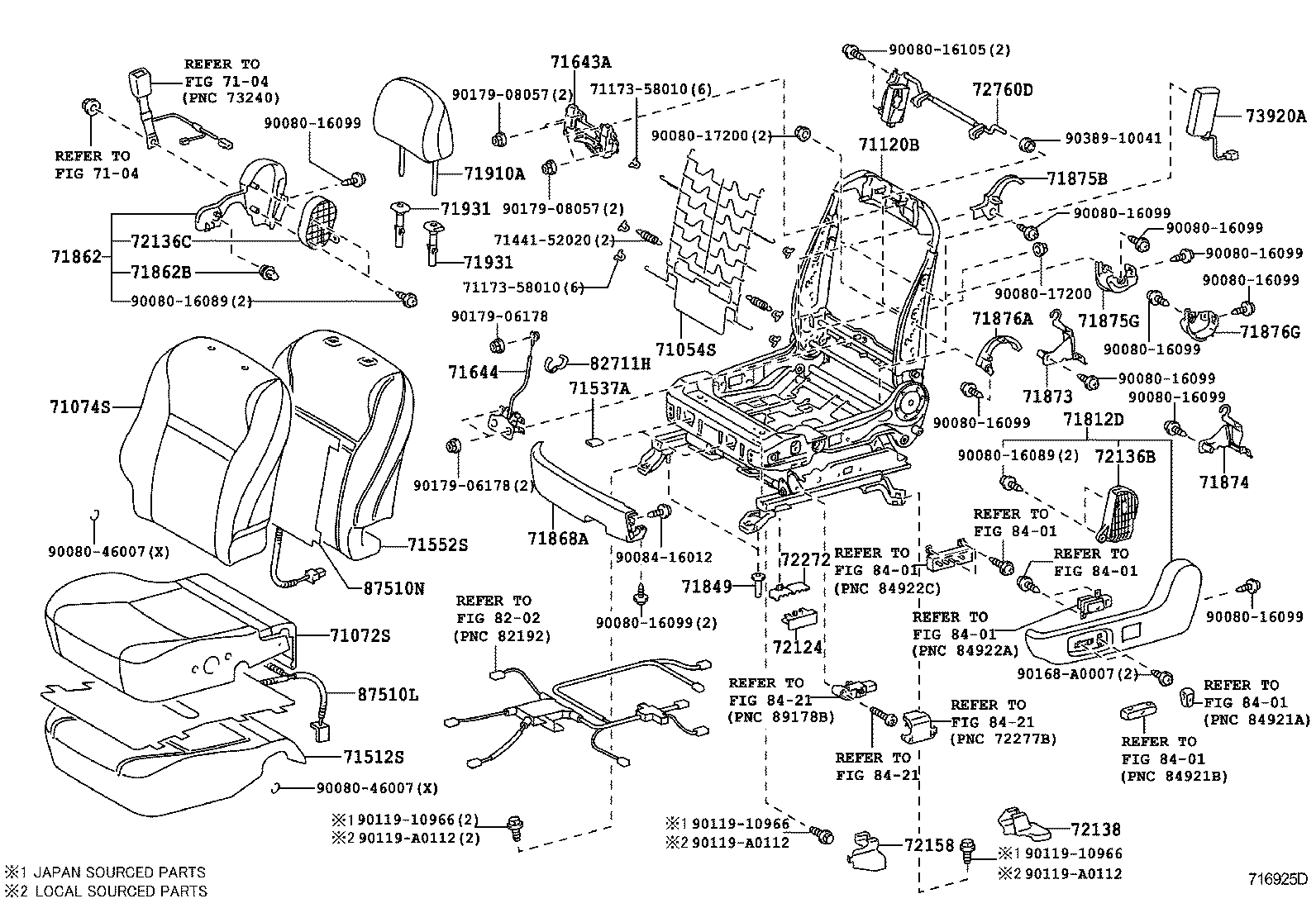

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-02170 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71053-02150 |
ZRE142..NAP..CND |
1 | ||
| 71053-02160 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71053-02170 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71053-02160 |
AZE141,ZRE142..NAP |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-02L10B1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
1 | ||
| 71072-02V90E1 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 71072-02K30B1 |
ZRE142..NAP..LE GRAY,TRIM1# |
1 | ||
| 71072-02V40 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71072-02V90B2 |
ZRE142..NAP..LE GRAY,TRIM1# |
1 | ||
| 71072-02L10E1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4# |
1 | ||
| 71072-02K30E1 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 71072-02L11E1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71072-02L11B1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71072-02V41E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71072-02V91E1 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71072-02V41B1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71072-02V91B2 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71072-02K70B1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71072-02K70E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-02R30B0 |
ZRE142..NAP..LE..CND GRAY,TRIM1# |
1 | ||
| 71074-02R40E1 |
ZRE142..NAP..LE..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71074-02R40B1 |
ZRE142..NAP..LE..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71074-02W30E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71074-02W30B0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71074-02R30E0 |
ZRE142..NAP..LE..CND GREGE,TRIM4# |
1 | ||
| 71074-0Z290 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-0Z280E1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4# |
1 | ||
| 71074-0Z340E1 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 71074-0Z280B1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
1 | ||
| 71074-0Z291E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71074-0Z340B2 |
ZRE142..NAP..LE GRAY,TRIM1# |
1 | ||
| 71074-0Z281B1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71074-0Z341B2 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71074-0Z281E1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71074-0Z291B1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71074-0Z341E1 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-02190 |
ZRE142..NAP..CND |
1 | ||
| 71120-02140 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71120-02150 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71120-02140 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71120-02150 |
AZE141,ZRE142..NAP |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-02250 |
AZE141,ZRE142..NAP |
1 | ||
| 71512-02260 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-02260 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71512-02250 |
AZE141,ZRE142..NAP |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
AZE141,ZRE142..NAP |
4 | ||
| 71537-AA020 |
AZE141,ZRE142..NAP |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02401 |
ZRE142..NAP..CND |
1 | ||
| 71552-02411 |
ZRE142..NAP..(CE,LE,STD) |
1 | ||
| 71552-02411 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71552-02411 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 71643-04010 |
AZE141,ZRE142..NAP |
2 | ||
| 71643-12011 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 71644-12030 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 71644-04010 |
AZE141,ZRE142..NAP |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02380B0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71812-02370B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 71812-02370E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 71812-02370B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71812-02380E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71812-02380B0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71812-02370E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71812-02380E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-02010 |
AZE141,ZRE142..NAP |
2 | ||
| 71848-02010 |
AZE141,ZRE142..NAP |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02170B0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71862-02160B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 71862-02160E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 71862-02170E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71862-02160E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71862-02160B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71862-02170E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71862-02170B0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-33020 |
AZE141,ZRE142..NAP |
1 | ||
| 67921-50050E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 67921-50050B3 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 67921-50050B3 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71769-33020 |
AZE141,ZRE142..NAP |
1 | ||
| 67921-50050E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06080 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71873-06080 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71873-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 71873-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06090 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71874-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 71874-06090 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-02130B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71876-AA090E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71875-02130E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71876-AA090B6 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-02130B1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1#,PASSENGER |
1 | ||
| 71876-AA090E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#,DRIVER |
1 | ||
| 71876-AA090B6 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1#,DRIVER |
1 | ||
| 71875-02130E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#,PASSENGER |
1 | ||
| 71875-02130E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
2 | ||
| 71875-02130B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
2 | ||
| 71875-AA060 |
AZE141,ZRE142..NAP |
1 | ||
| 71813-0E010 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-0E020B6 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1#,DRIVER |
1 | ||
| 71875-0E020E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#,DRIVER |
1 | ||
| 71876-02130B1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1#,PASSENGER |
1 | ||
| 71876-02130E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#,PASSENGER |
1 | ||
| 71875-0E020E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4#,DRIVER |
1 | ||
| 71876-02130E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
2 | ||
| 71876-02130B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
2 | ||
| 71876-02130E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71876-02130B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71875-0E020B6 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16,DRIVER |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71813-0E020 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DRIVER |
1 | ||
| 71876-AA060 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),PASSENGER |
1 | ||
| 71813-0E020 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71876-AA060 |
AZE141,ZRE142..NAP |
1 | ||
| 71876-AA060 |
AZE141,ZRE142..NAP |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02B80B1 |
ZRE142..NAP..LE GRAY,TRIM1# |
2 | ||
| 71910-02F50E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
2 | ||
| 71910-02F51E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
2 | ||
| 71910-02B80E1 |
ZRE142..NAP..LE GREGE,TRIM4# |
2 | ||
| 71910-02F50B0 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
2 | ||
| 71910-02F51B0 |
ZRE142..NAP..LE GRAY,TRIM16 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E0 |
ZRE142..NAP..(CE,LE,STD) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ZRE142..NAP..(CE,LE,STD) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
ZRE142..NAP..LE W/O(LOCK),GREGE,TRIM18,4# |
2 | ||
| 71930-44020B2 |
ZRE142..NAP..LE W(LOCK),GRAY,TRIM16 |
2 | ||
| 71930-44020E0 |
ZRE142..NAP..LE W(LOCK),GREGE,TRIM18,4# |
2 | ||
| 71931-47010P4 |
ZRE142..NAP..LE W/O(LOCK),GRAY,TRIM16 |
2 | ||
| 71931-47010E4 |
ZRE142..NAP..(CE,LE,STD) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ZRE142..NAP..(CE,LE,STD) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E0 |
ZRE142..NAP..(CE,LE,STD) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ZRE142..NAP..(CE,LE,STD) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
ZRE142..NAP..LE W/O(LOCK),GREGE,TRIM18,4# |
2 | ||
| 71930-44020B2 |
ZRE142..NAP..LE W(LOCK),GRAY,TRIM16 |
2 | ||
| 71930-44020E0 |
ZRE142..NAP..LE W(LOCK),GREGE,TRIM18,4# |
2 | ||
| 71931-47010P4 |
ZRE142..NAP..LE W/O(LOCK),GRAY,TRIM16 |
2 | ||
| 71931-47010E4 |
ZRE142..NAP..(CE,LE,STD) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ZRE142..NAP..(CE,LE,STD) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 72124-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 72136B - SPACER, SEAT TRACK, LOWER NO.3 | ||||
| 72136-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 72136-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 72136-02040 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 72136-02040 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72136C - SPACER, SEAT TRACK, LOWER NO.4 | ||||
| 72136-02050 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 72136-02090 |
AZE141,ZRE142..NAP |
1 | ||
| 72136-02090 |
AZE141,ZRE142..NAP |
1 | ||
| 72136-02050 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-02110 |
AZE141,ZRE142..NAP |
1 | ||
| 72138-02130 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY) |
1 | ||
| 72138-02130 |
ZRE142..NAP..LE FRONT SEAT SLIDE-240MM,D:POWER(8WAY) |
1 | ||
| 72138-02110 |
AZE141,ZRE142..NAP |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02130 |
AZE141,ZRE142..NAP |
1 | ||
| 72158-02140 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY) |
1 | ||
| 72158-02130 |
AZE141,ZRE142..NAP |
1 | ||
| 72158-02140 |
ZRE142..NAP..LE FRONT SEAT SLIDE-240MM,D:POWER(8WAY) |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-02080 |
AZE141,ZRE142..NAP |
2 | ||
| 72211-02080 |
AZE141,ZRE142..NAP |
2 | ||
| 72211-02080 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 72211-02080 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-02060 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72272-02060 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 72272-02060 |
AZE141,ZRE142..NAP |
2 | ||
| 72272-02060 |
AZE141,ZRE142..NAP |
2 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-06010E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 72459-06010E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 72459-06010B0 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 72459-06010B0 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 72493 - HANDLE, VERTICAL ADJUSTING, NO.2 | ||||
| 72493-02010B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 72493-02010B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 72493-02010E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 72493-02010E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-06020B0 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 72526-06020E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 72526-06020E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 72526-06020B0 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 72773 - PLATE, LUMBAR SUPPORT | ||||
| 72773-02010 |
AZE141,ZRE142..NAP |
1 | ||
| 72773-02010 |
AZE141,ZRE142..NAP |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02170 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 73920-02170 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 73920-02130 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 73920-02130 |
AZE141,ZRE142..NAP |
1 | ||
| 82711H - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
AZE141,ZRE142..NAP |
4 | ||
| 82711-2B660 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 82711-2B660 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-02130 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-02150 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-02240 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-02240 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 71173-58010 | ||||
| 90080-16089 | ||||
| 90080-17200 | ||||
| 90080-46007 | ||||
| 90084-16010 | ||||
| 90119-10966 | ||||
| 90119-A0112 | ||||
| 90168-50078 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||

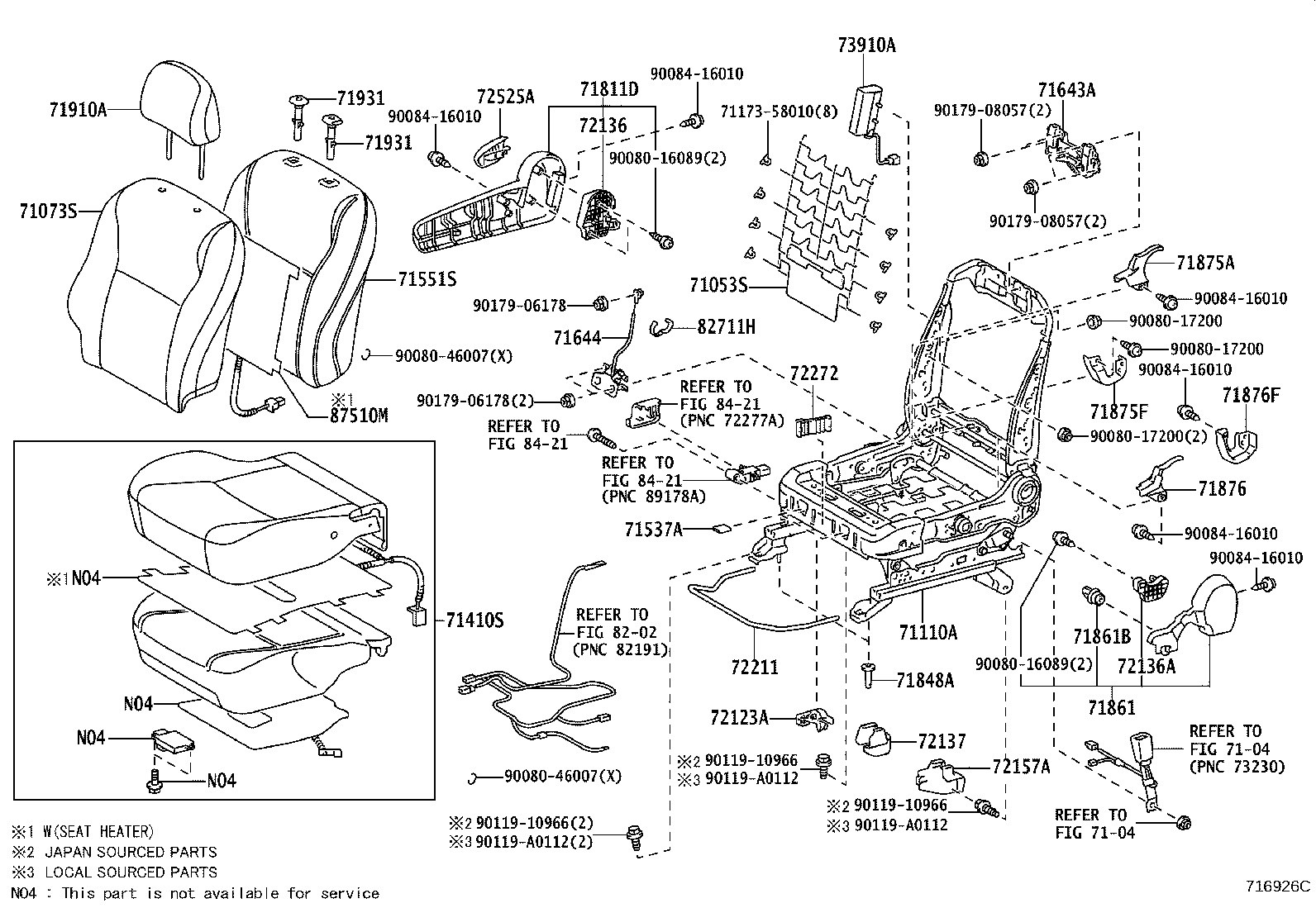

(1012- )NAP..LE
DRIVER SEAT-W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-02170 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71053-02150 |
ZRE142..NAP..CND |
1 | ||
| 71053-02160 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71053-02170 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71053-02160 |
AZE141,ZRE142..NAP |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-02L10B1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
1 | ||
| 71072-02V90E1 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 71072-02K30B1 |
ZRE142..NAP..LE GRAY,TRIM1# |
1 | ||
| 71072-02V40 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71072-02V90B2 |
ZRE142..NAP..LE GRAY,TRIM1# |
1 | ||
| 71072-02L10E1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4# |
1 | ||
| 71072-02K30E1 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 71072-02L11E1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71072-02L11B1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71072-02V41E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71072-02V91E1 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71072-02V41B1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71072-02V91B2 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71072-02K70B1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71072-02K70E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-02R30B0 |
ZRE142..NAP..LE..CND GRAY,TRIM1# |
1 | ||
| 71074-02R40E1 |
ZRE142..NAP..LE..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71074-02R40B1 |
ZRE142..NAP..LE..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71074-02W30E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71074-02W30B0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71074-02R30E0 |
ZRE142..NAP..LE..CND GREGE,TRIM4# |
1 | ||
| 71074-0Z290 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-0Z280E1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4# |
1 | ||
| 71074-0Z340E1 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 71074-0Z280B1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
1 | ||
| 71074-0Z291E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71074-0Z340B2 |
ZRE142..NAP..LE GRAY,TRIM1# |
1 | ||
| 71074-0Z281B1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71074-0Z341B2 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71074-0Z281E1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71074-0Z291B1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71074-0Z341E1 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-02190 |
ZRE142..NAP..CND |
1 | ||
| 71120-02140 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71120-02150 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71120-02140 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71120-02150 |
AZE141,ZRE142..NAP |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-02250 |
AZE141,ZRE142..NAP |
1 | ||
| 71512-02260 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-02260 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71512-02250 |
AZE141,ZRE142..NAP |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
AZE141,ZRE142..NAP |
4 | ||
| 71537-AA020 |
AZE141,ZRE142..NAP |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02401 |
ZRE142..NAP..CND |
1 | ||
| 71552-02411 |
ZRE142..NAP..(CE,LE,STD) |
1 | ||
| 71552-02411 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71552-02411 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 71643-04010 |
AZE141,ZRE142..NAP |
2 | ||
| 71643-12011 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 71644-12030 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 71644-04010 |
AZE141,ZRE142..NAP |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02380B0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71812-02370B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 71812-02370E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 71812-02370B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71812-02380E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71812-02380B0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71812-02370E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71812-02380E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-02010 |
AZE141,ZRE142..NAP |
2 | ||
| 71848-02010 |
AZE141,ZRE142..NAP |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02170B0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71862-02160B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 71862-02160E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 71862-02170E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71862-02160E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71862-02160B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71862-02170E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71862-02170B0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-33020 |
AZE141,ZRE142..NAP |
1 | ||
| 67921-50050E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 67921-50050B3 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 67921-50050B3 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71769-33020 |
AZE141,ZRE142..NAP |
1 | ||
| 67921-50050E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-02020E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71868-02020E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71868-02020B0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71868-02020B0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06080 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71873-06080 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71873-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 71873-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06090 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71874-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 71874-06090 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-02130B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71876-AA090E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71875-02130E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71876-AA090B6 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-02130B1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1#,PASSENGER |
1 | ||
| 71876-AA090E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#,DRIVER |
1 | ||
| 71876-AA090B6 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1#,DRIVER |
1 | ||
| 71875-02130E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#,PASSENGER |
1 | ||
| 71875-02130E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
2 | ||
| 71875-02130B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
2 | ||
| 71875-AA060 |
AZE141,ZRE142..NAP |
1 | ||
| 71813-0E010 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-0E020B6 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1#,DRIVER |
1 | ||
| 71875-0E020E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#,DRIVER |
1 | ||
| 71876-02130B1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1#,PASSENGER |
1 | ||
| 71876-02130E0 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#,PASSENGER |
1 | ||
| 71875-0E020E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4#,DRIVER |
1 | ||
| 71876-02130E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
2 | ||
| 71876-02130B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
2 | ||
| 71876-02130E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71876-02130B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71875-0E020B6 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16,DRIVER |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71813-0E020 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DRIVER |
1 | ||
| 71876-AA060 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),PASSENGER |
1 | ||
| 71813-0E020 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71876-AA060 |
AZE141,ZRE142..NAP |
1 | ||
| 71876-AA060 |
AZE141,ZRE142..NAP |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02B80B1 |
ZRE142..NAP..LE GRAY,TRIM1# |
2 | ||
| 71910-02F50E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
2 | ||
| 71910-02F51E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
2 | ||
| 71910-02B80E1 |
ZRE142..NAP..LE GREGE,TRIM4# |
2 | ||
| 71910-02F50B0 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
2 | ||
| 71910-02F51B0 |
ZRE142..NAP..LE GRAY,TRIM16 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E0 |
ZRE142..NAP..(CE,LE,STD) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ZRE142..NAP..(CE,LE,STD) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
ZRE142..NAP..LE W/O(LOCK),GREGE,TRIM18,4# |
2 | ||
| 71930-44020B2 |
ZRE142..NAP..LE W(LOCK),GRAY,TRIM16 |
2 | ||
| 71930-44020E0 |
ZRE142..NAP..LE W(LOCK),GREGE,TRIM18,4# |
2 | ||
| 71931-47010P4 |
ZRE142..NAP..LE W/O(LOCK),GRAY,TRIM16 |
2 | ||
| 71931-47010E4 |
ZRE142..NAP..(CE,LE,STD) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ZRE142..NAP..(CE,LE,STD) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E0 |
ZRE142..NAP..(CE,LE,STD) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ZRE142..NAP..(CE,LE,STD) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
ZRE142..NAP..LE W/O(LOCK),GREGE,TRIM18,4# |
2 | ||
| 71930-44020B2 |
ZRE142..NAP..LE W(LOCK),GRAY,TRIM16 |
2 | ||
| 71930-44020E0 |
ZRE142..NAP..LE W(LOCK),GREGE,TRIM18,4# |
2 | ||
| 71931-47010P4 |
ZRE142..NAP..LE W/O(LOCK),GRAY,TRIM16 |
2 | ||
| 71931-47010E4 |
ZRE142..NAP..(CE,LE,STD) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ZRE142..NAP..(CE,LE,STD) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 72124-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 72136B - SPACER, SEAT TRACK, LOWER NO.3 | ||||
| 72136-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 72136-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 72136-02040 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 72136-02040 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72136C - SPACER, SEAT TRACK, LOWER NO.4 | ||||
| 72136-02050 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 72136-02090 |
AZE141,ZRE142..NAP |
1 | ||
| 72136-02090 |
AZE141,ZRE142..NAP |
1 | ||
| 72136-02050 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-02110 |
AZE141,ZRE142..NAP |
1 | ||
| 72138-02130 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY) |
1 | ||
| 72138-02130 |
ZRE142..NAP..LE FRONT SEAT SLIDE-240MM,D:POWER(8WAY) |
1 | ||
| 72138-02110 |
AZE141,ZRE142..NAP |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02130 |
AZE141,ZRE142..NAP |
1 | ||
| 72158-02140 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY) |
1 | ||
| 72158-02130 |
AZE141,ZRE142..NAP |
1 | ||
| 72158-02140 |
ZRE142..NAP..LE FRONT SEAT SLIDE-240MM,D:POWER(8WAY) |
1 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-02060 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72272-02060 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 72272-02060 |
AZE141,ZRE142..NAP |
2 | ||
| 72272-02060 |
AZE141,ZRE142..NAP |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-0E010 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02170 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 73920-02170 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 73920-02130 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 73920-02130 |
AZE141,ZRE142..NAP |
1 | ||
| 82711H - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
AZE141,ZRE142..NAP |
4 | ||
| 82711-2B660 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 82711-2B660 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-02130 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-02150 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-02240 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-02240 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 71173-58010 | ||||
| 71441-52020 | ||||
| 90080-16089 | ||||
| 90080-16099 | ||||
| 90080-16105 | ||||
| 90080-17200 | ||||
| 90080-46007 | ||||
| 90084-16012 | ||||
| 90119-10966 | ||||
| 90119-A0112 | ||||
| 90168-A0007 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90389-10041 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(1012- )NAP
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-02150 |
ZRE142..NAP..CND |
1 | ||
| 71053-02160 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71053-02160 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71053-02160 |
AZE141,ZRE142..NAP |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0Z380B2 |
ZRE142..NAP..LE GRAY,TRIM1# |
1 | ||
| 71073-02R10B1 |
ZRE142..NAP..LE..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71073-02R10E1 |
ZRE142..NAP..LE..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71073-02R10B1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM1# |
1 | ||
| 71073-02R00B0 |
ZRE142..NAP..LE..CND GRAY,TRIM1# |
1 | ||
| 71073-02R00E0 |
ZRE142..NAP..LE..CND GREGE,TRIM4# |
1 | ||
| 71073-02R10E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71073-0Z380E1 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 71073-02S21E1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71073-0Z381E1 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71073-02S21B1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71073-0Z381B2 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71073-02S21E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM18,4# |
1 | ||
| 71073-02S20B1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
1 | ||
| 71073-02S20E1 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4# |
1 | ||
| 71073-02S20B1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
1 | ||
| 71073-02S20E1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4# |
1 | ||
| 71073-02S21B1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 71110-02100 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71110-02170 |
ZRE142..NAP..CND |
1 | ||
| 71110-02100 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71001-0ZY00E0 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 71002-02Y11B0 |
ZRE142..NAP..LE GRAY,TRIM1# |
1 | ||
| 71002-02Y51E0 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4# |
1 | ||
| 71002-02Y51B0 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
1 | ||
| 71002-02Y11B1 |
ZRE142..NAP..LE DR GRAY,TRIM18 |
1 | ||
| 71001-0ZY00B0 |
ZRE142..NAP..LE GRAY,TRIM1# |
1 | ||
| 71002-02Y11E0 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 71002-02Y51B1 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),DK GRAY,TRIM18 |
1 | ||
| 71002-02Y11B0 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71002-02Y51B0 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM16 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
AZE141,ZRE142..NAP |
4 | ||
| 71537-AA020 |
AZE141,ZRE142..NAP |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02551 |
ZRE142..NAP..CND |
1 | ||
| 71551-02561 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71551-02561 |
ZRE142..NAP..(CE,LE,STD) |
1 | ||
| 71551-02561 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 71643-04010 |
AZE141,ZRE142..NAP |
2 | ||
| 71643-12011 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 71644-12030 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 71644-04010 |
AZE141,ZRE142..NAP |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02300B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 71811-02300B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71811-02300E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 71811-02300E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-02010 |
AZE141,ZRE142..NAP |
2 | ||
| 71848-02010 |
AZE141,ZRE142..NAP |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02140E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 71861-02140E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71861-02140B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 71861-02140B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-33020 |
AZE141,ZRE142..NAP |
1 | ||
| 71769-33020 |
AZE141,ZRE142..NAP |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71813-0E010 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DRIVER |
1 | ||
| 71875-AA060 |
AZE141,ZRE142..NAP |
2 | ||
| 71875-AA060 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),PASSENGER |
1 | ||
| 71875-02130E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71875-02130B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-AA060 |
AZE141,ZRE142..NAP |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-02130E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 71876-02130B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-AA060 |
AZE141,ZRE142..NAP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02B80B1 |
ZRE142..NAP..LE GRAY,TRIM1# |
2 | ||
| 71910-02F50E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
2 | ||
| 71910-02F51E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
2 | ||
| 71910-02B80E1 |
ZRE142..NAP..LE GREGE,TRIM4# |
2 | ||
| 71910-02F50B0 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
2 | ||
| 71910-02F51B0 |
ZRE142..NAP..LE GRAY,TRIM16 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E0 |
ZRE142..NAP..(CE,LE,STD) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ZRE142..NAP..(CE,LE,STD) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
ZRE142..NAP..LE W/O(LOCK),GREGE,TRIM18,4# |
2 | ||
| 71930-44020B2 |
ZRE142..NAP..LE W(LOCK),GRAY,TRIM16 |
2 | ||
| 71930-44020E0 |
ZRE142..NAP..LE W(LOCK),GREGE,TRIM18,4# |
2 | ||
| 71931-47010P4 |
ZRE142..NAP..LE W/O(LOCK),GRAY,TRIM16 |
2 | ||
| 71931-47010E4 |
ZRE142..NAP..(CE,LE,STD) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ZRE142..NAP..(CE,LE,STD) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020E0 |
ZRE142..NAP..(CE,LE,STD) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ZRE142..NAP..(CE,LE,STD) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
ZRE142..NAP..LE W/O(LOCK),GREGE,TRIM18,4# |
2 | ||
| 71930-44020B2 |
ZRE142..NAP..LE W(LOCK),GRAY,TRIM16 |
2 | ||
| 71930-44020E0 |
ZRE142..NAP..LE W(LOCK),GREGE,TRIM18,4# |
2 | ||
| 71931-47010P4 |
ZRE142..NAP..LE W/O(LOCK),GRAY,TRIM16 |
2 | ||
| 71931-47010E4 |
ZRE142..NAP..(CE,LE,STD) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010P4 |
ZRE142..NAP..(CE,LE,STD) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 72123-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-02020 |
AZE141,ZRE142..NAP |
1 | ||
| 72136-02020 |
AZE141,ZRE142..NAP |
1 | ||
| 72136A - SPACER, SEAT TRACK, LOWER NO.2 | ||||
| 72136-02080 |
AZE141,ZRE142..NAP |
1 | ||
| 72136-02080 |
AZE141,ZRE142..NAP |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-02130 |
AZE141,ZRE142..NAP |
1 | ||
| 72137-02130 |
AZE141,ZRE142..NAP |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02140 |
AZE141,ZRE142..NAP |
1 | ||
| 72157-02140 |
AZE141,ZRE142..NAP |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-02080 |
AZE141,ZRE142..NAP |
2 | ||
| 72211-02080 |
AZE141,ZRE142..NAP |
2 | ||
| 72211-02080 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 72211-02080 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-02060 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72272-02060 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 72272-02060 |
AZE141,ZRE142..NAP |
2 | ||
| 72272-02060 |
AZE141,ZRE142..NAP |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-06020B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 72525-06020E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 72525-06020B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 72525-06020E0 |
ZRE142..NAP..LE GREGE,TRIM18,4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-02130 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 73910-02130 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 73910-02130 |
AZE141,ZRE142..NAP |
1 | ||
| 82711H - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
AZE141,ZRE142..NAP |
4 | ||
| 82711-2B660 |
ZRE142..NAP..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 82711-2B660 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
2 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-02240 |
ZRE142..NAP..LE..CND FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-02240 |
ZRE142..NAP..LE..CND SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 71173-58010 | ||||
| 90080-16089 | ||||
| 90080-17200 | ||||
| 90080-46007 | ||||
| 90084-16010 | ||||
| 90119-10966 | ||||
| 90119-A0112 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
