ZRE142L-DEPNKK (2010)

Toyota Corolla Nap

Production Dec 2010 - Aug 2013
Engine 2ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )NAP

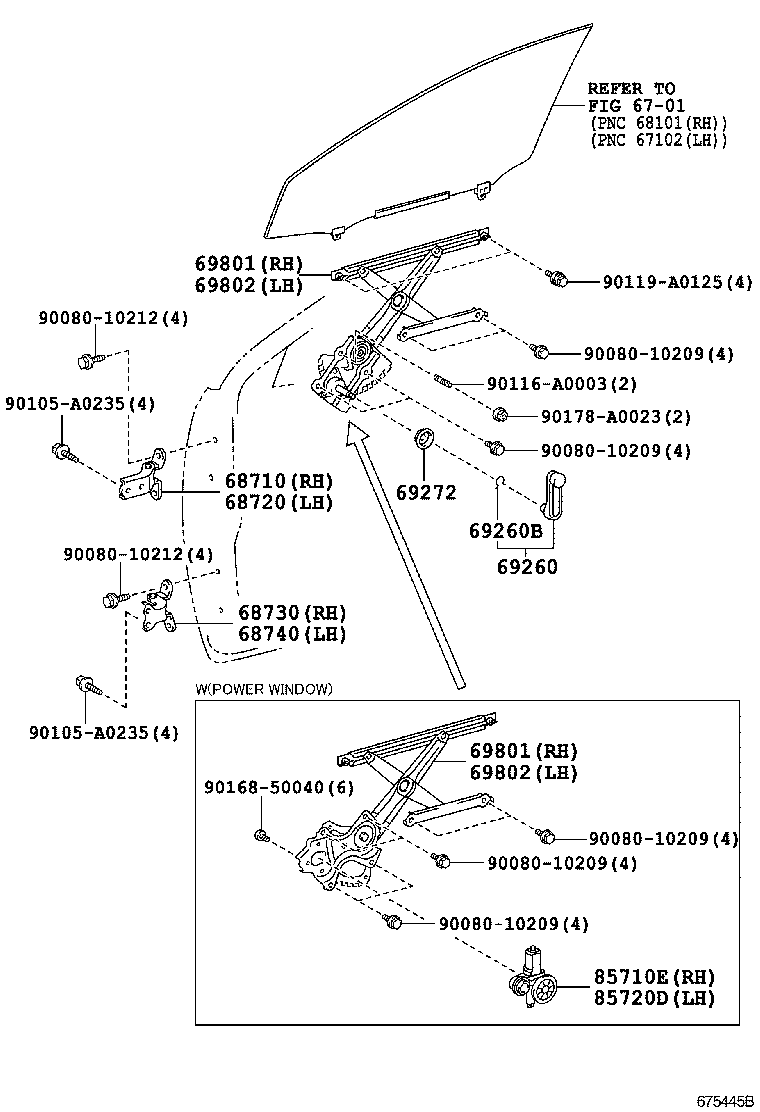

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 85710E 85720D 9008010209 9008010209 9008010209 9008010209 9008010209 9008010212 9008010212 90105A0235 90105A0235 90116A0003 90119A0125 9016850040 90178A0023
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02020

AZE141,ZRE142..NAP

 1
68710-02020

AZE141,ZRE142..NAP

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02020

AZE141,ZRE142..NAP

 1
68720-02020

AZE141,ZRE142..NAP

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-02080

AZE141,ZRE142..NAP

 1
68730-02080

AZE141,ZRE142..NAP

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-02080

AZE141,ZRE142..NAP

 1
68740-02080

AZE141,ZRE142..NAP

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-02170

ZRE142..NAP..LE

 1
69801-02170

ZRE142..NAP..LE

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-02170

ZRE142..NAP..LE

 1
69801-02170

ZRE142..NAP..LE

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-02180

ZRE142..NAP..LE

 1
69802-02180

ZRE142..NAP..LE

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-02180

ZRE142..NAP..LE

 1
69802-02180

ZRE142..NAP..LE

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-AE010

ZRE142..NAP..LE

 1
85710-AE010

ZRE142..NAP..LE

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-AE010

ZRE142..NAP..LE

 1
85720-AE010

ZRE142..NAP..LE

 1
Common parts
90080-10209
90080-10212
90105-A0235
90116-A0003
90119-A0125
90168-50040
90178-A0023
Linked diagrams
6701
