ZRE142L-DEPNKK (2010)

Toyota Corolla Nap

Production Dec 2010 - Aug 2013
Engine 2ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )NAP

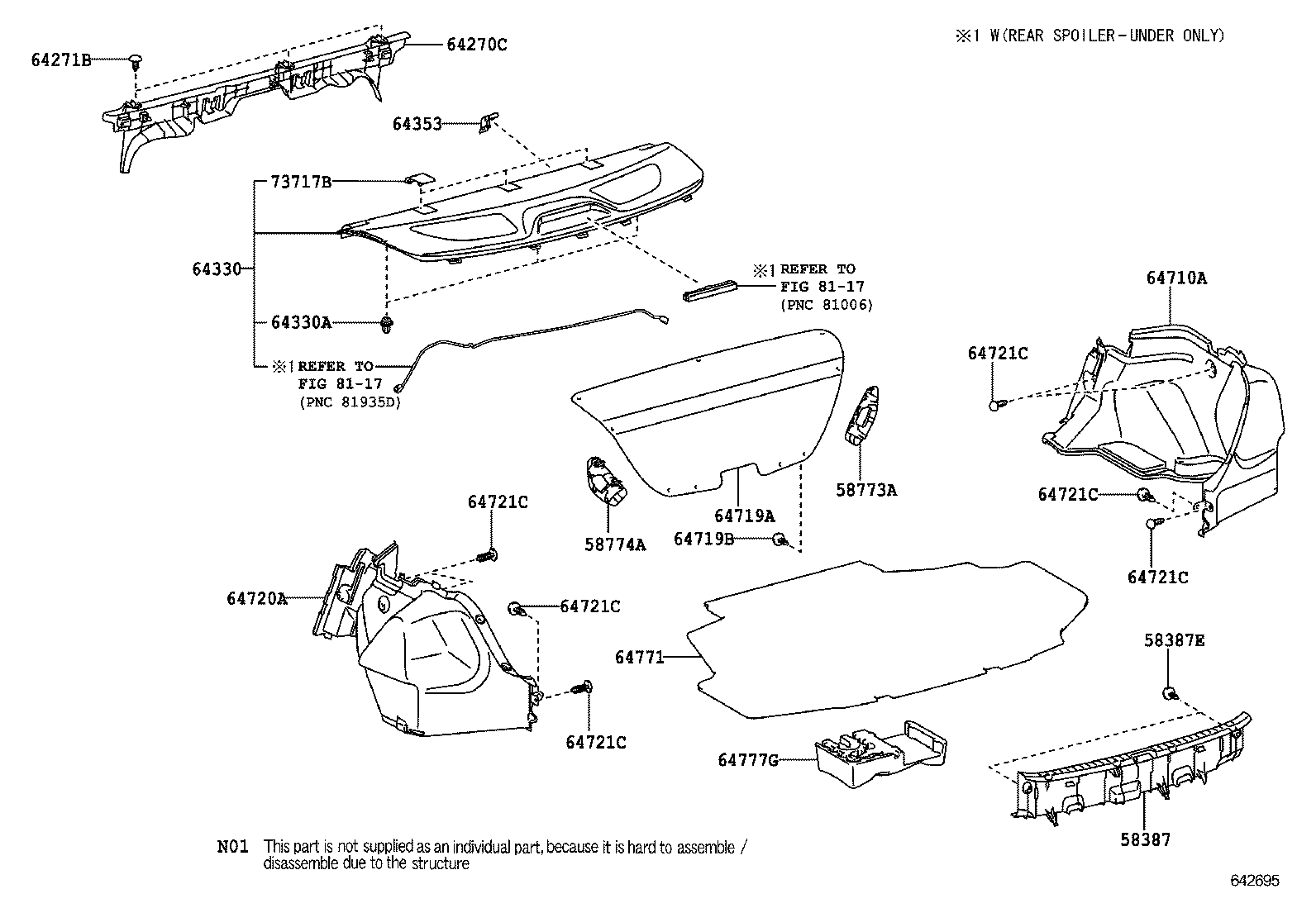

Click highlighted areas on diagram

diagram 58387 58387E 58773A 58774A 64270C 64271B 64330 64330A 64353 64710A 64719A 64719B 64720A 64721C 64721C 64721C 64721C 64721C 64721C 64771 64777G 73717B 8117 8117
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-02100B0

ZRE142..NAP;AZE141..NAP..5FC

DK.GRAY

 1
58387-02100B0

AZE141,ZRE142..NAP

DK.GRAY

 1
58387E - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 2
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 2
58773A - COVER, LUGGAGE COMPARTMENT SIDE, RH
58773-02100B0

AZE141,ZRE142..NAP

DK.GRAY

 1
58773-02100B0

ZRE142..NAP;AZE141..NAP..5FC

DK.GRAY

 1
58774A - COVER, LUGGAGE COMPARTMENT SIDE, LH
58774-02090B0

ZRE142..NAP;AZE141..NAP..5FC

DK.GRAY

 1
58774-02090B0

AZE141,ZRE142..NAP

DK.GRAY

 1
64270C - BOARD ASSY, ROOM PARTITION
64271-02120

AZE141,ZRE142..NAP

 1
64271-02120

AZE141,ZRE142..NAP

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 3
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 3
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-02720B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#

 1
64330-02720B0

ZRE142..NAP..(CE,LE,STD)

DK.GRAY,TRIM1#,4#

 1
64330-02720E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-A0006

AZE141,ZRE142..NAP

 3
90467-A0006

AZE141,ZRE142..NAP

 3
64353 - COVER, PACKAGE TRAY TRIM BELT HOLE
64353-02060B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#

 1
64353-02060B0

ZRE142..NAP..(CE,LE,STD)

DK.GRAY,TRIM1#,4#

 1
64353-02060E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#

 1
64710A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
64710-02220C0

ZRE142..NAP..(CE,LE,STD)

BLACK,TRIM1#,4#

 1
64710-02140C0

ZRE142..NAP..(CE,LE,STD)

BLACK,TRIM1#,4#

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-02100C0

ZRE142..NAP..(CE,LE,STD)

BLACK,TRIM1#,4#

 1
64719-02100C0

ZRE142..NAP..(CE,LE,STD)

BLACK,TRIM1#,4#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 9
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 9
64720A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
64720-02230C0

ZRE142..NAP..(CE,LE,STD)

BLACK,TRIM1#,4#

 1
64720-02140C0

ZRE142..NAP..(CE,LE,STD)

BLACK,TRIM1#,4#

 1
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
64771 - COVER, SPARE WHEEL
64771-02270C0

ZRE142..NAP..(CE,LE,STD)

BLACK,TRIM1#,4#

 1
64771-02110C0

ZRE142..NAP..(CE,LE,STD)

BLACK,TRIM1#,4#

 1
64777G - CUSHION, SPARE WHEEL
64777-02140

AZE141,ZRE142..NAP

 1
64777-02140

AZE141,ZRE142..NAP

 1
73717B - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-02100B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#,LH

 1
73717-02080B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#,CENTER

 1
73717-02090B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#,RH

 1
73717-02090B0

ZRE142..NAP..(CE,LE,STD)

DK.GRAY,TRIM1#,4#,RH

 1
73717-02080B0

ZRE142..NAP..(CE,LE,STD)

DK.GRAY,TRIM1#,4#,CENTER

 1
73717-02080E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#,CENTER

 1
73717-02100B0

ZRE142..NAP..(CE,LE,STD)

DK.GRAY,TRIM1#,4#,LH

 1
73717-02090E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#,RH

 1
73717-02100E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#,LH

 1
