ZRE142L-DEPNKK (2010)
Toyota Corolla Nap

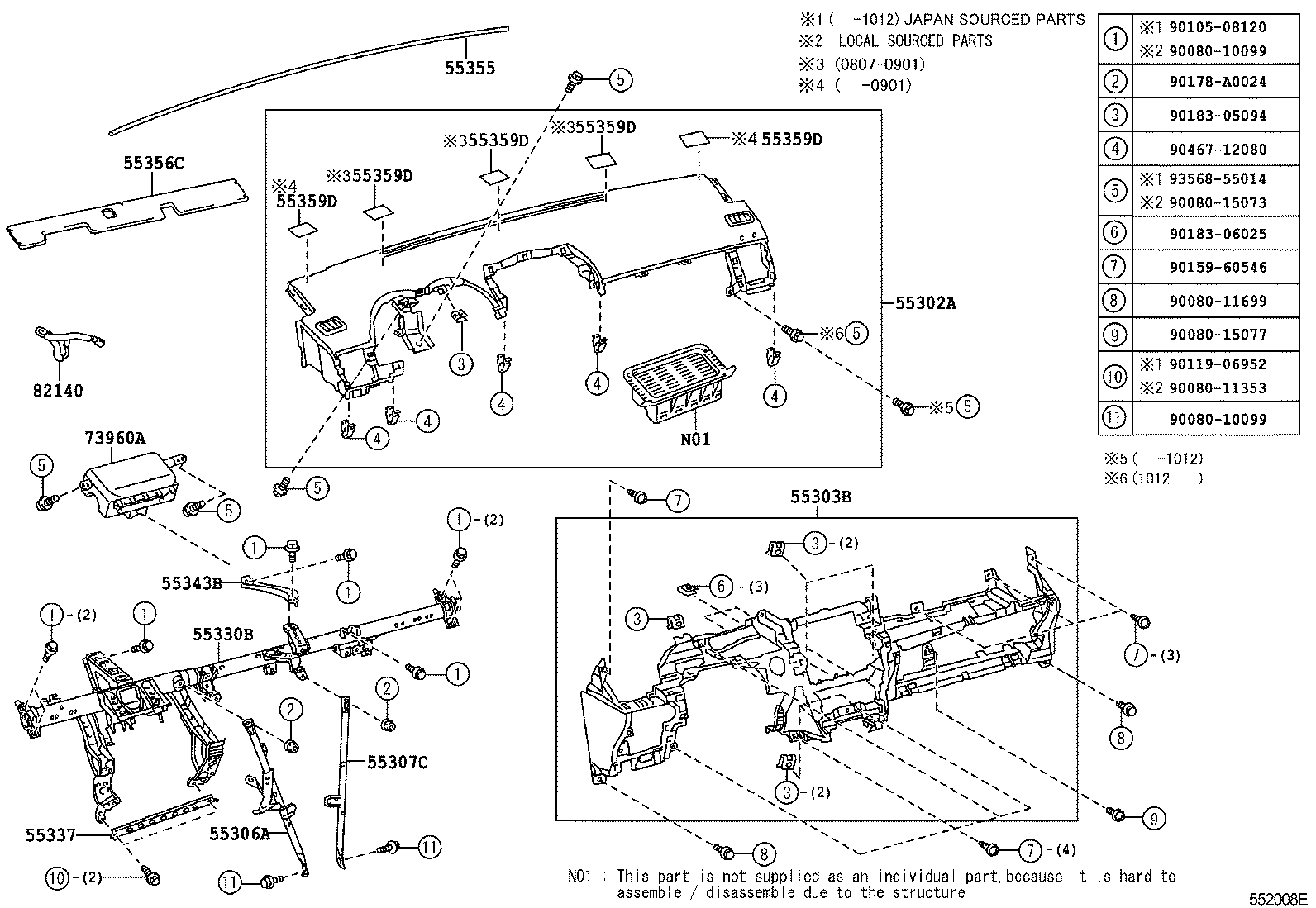

ILLUST NO. 1 OF 2(0801- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-02260B1 |
ZRE142..NAP..(CE,LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 55302-02260E0 |
ZRE142..NAP..(CE,LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 55302-02281B0 |
ZRE142..NAP..(CE,LE,STD) DK.GRAY,TRIM1#,4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02280E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55303-02280B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55303-02280E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55303-02280B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55303-02280B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02310 |
AZE141,ZRE142..NAP |
1 | ||
| 55306-02310 |
AZE141,ZRE142..NAP |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02180 |
AZE141,ZRE142..NAP |
1 | ||
| 55307-02180 |
AZE141,ZRE142..NAP |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02510 |
AZE141,ZRE142..NAP |
1 | ||
| 55330-02510 |
AZE141,ZRE142..NAP |
1 | ||
| 55337 - REINFORCEMENT, INSTRUMENT PANEL SUB | ||||
| 55337-02010 |
AZE141,ZRE142..NAP |
1 | ||
| 55337-02010 |
AZE141,ZRE142..NAP |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02130 |
AZE141,ZRE142..NAP |
1 | ||
| 55343-02130 |
AZE141,ZRE142..NAP |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02140 |
AZE141,ZRE142..NAP |
1 | ||
| 55355-02140 |
AZE141,ZRE142..NAP |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02120 |
AZE141,ZRE142..NAP |
1 | ||
| 55356-02120 |
AZE141,ZRE142..NAP |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-12110 |
AZE141,ZRE142..NAP |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-12110 |
AZE141,ZRE142..NAP |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-12110 |
AZE141,ZRE142..NAP |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-12110 |
AZE141,ZRE142..NAP |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-12110 |
AZE141,ZRE142..NAP |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02140 |
AZE141,ZRE142..NAP |
1 | ||
| 73960-02120 |
AZE141,ZRE142..NAP |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-02290 |
AZE141,ZRE142..NAP |
1 | ||
| 82140-02290 |
AZE141,ZRE142..NAP |
1 | ||
| Common parts | ||||
| 90080-10099 | ||||
| 90080-11353 | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90080-15077 | ||||
| 90105-08120 | ||||
| 90119-06952 | ||||
| 90159-60546 | ||||
| 90178-A0024 | ||||
| 90183-05094 | ||||
| 90183-06025 | ||||
| 90467-12080 | ||||
| 93568-55014 | ||||

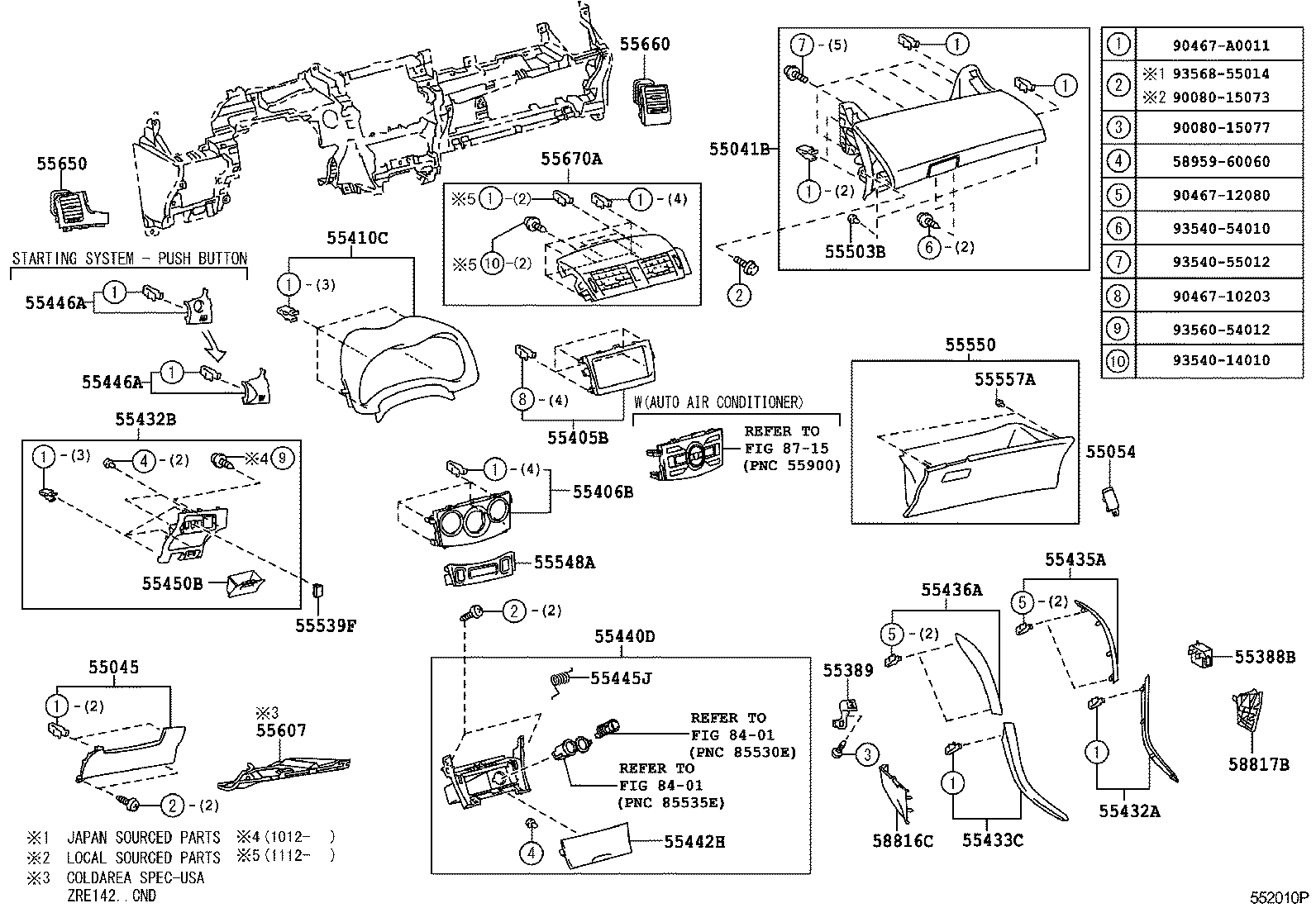

ILLUST NO. 2 OF 2(0801- )NAP
W(ASH TRAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-02120B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55041-02120E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55041-02120B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55041-02120B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55041-02120E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02250B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55045-02250E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55045-02250B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55045-02250B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55045-02250E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 55054-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 55388B - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-02040 |
AZE141,ZRE142..NAP |
1 | ||
| 55388-02040 |
AZE141,ZRE142..NAP |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-02040 |
AZE141,ZRE142..NAP |
1 | ||
| 55389-02040 |
AZE141,ZRE142..NAP |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-12B10 |
ZRE142..NAP..S..USA;AZE141,ZRE142..NAP..(LE,XRS) |
1 | ||
| 55405-12B20 |
ZRE142..NAP..LE;ZRE142..NAP..S..CND AUDIO-ENTRY AVN 6SPEAKER |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02250 |
ZRE142..NAP..S..CND;ZRE142..NAP..(CE,LE,STD) |
1 | ||
| 55406-02260 |
ZRE142..NAP..LE;AZE141,ZRE142..NAP..(S,XRS)..USA |
1 | ||
| 55406-02260 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 55406-02250 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02100B1 |
ZRE142..NAP..(CE,LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 55410-02100E0 |
ZRE142..NAP..(CE,LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 55410-02100B0 |
ZRE142..NAP..(CE,LE,STD) DK.GRAY,TRIM1#,4# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-02220 |
AZE141,ZRE142..NAP |
1 | ||
| 55432-02220 |
AZE141,ZRE142..NAP |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-02070B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55480-02140E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55480-02070E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55480-02140B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55480-02140B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-02140 |
AZE141,ZRE142..NAP |
1 | ||
| 55433-02140 |
AZE141,ZRE142..NAP |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-02220 |
AZE141,ZRE142..NAP |
1 | ||
| 55435-02220 |
AZE141,ZRE142..NAP |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-02180 |
AZE141,ZRE142..NAP |
1 | ||
| 55436-02180 |
AZE141,ZRE142..NAP |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-02120 |
ZRE142..NAP..LE |
1 | ||
| 55440-02360 |
ZRE142..NAP..LE..CND |
1 | ||
| 55440-12190 |
ZRE142..NAP..LE ASH TRAY-WITH(FR1) |
1 | ||
| 55440-12300 |
ZRE142..NAP..LE..CND ASH TRAY-WITH(FR1) |
1 | ||
| 55440-02130 |
ZRE142..NAP..LE..CND |
1 | ||
| 55440-12300 |
ZRE142..NAP..LE..CND INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & WOOD&ASH TRAY-WITH(FR1) |
1 | ||
| 55440-02360 |
ZRE142..NAP..LE..CND INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & WOOD |
1 | ||
| 55440-12100 |
ZRE142..NAP..LE..CND ASH TRAY-WITH(FR1) |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-02180 |
ZRE142..NAP..LE |
1 | ||
| 55442-12410 |
ZRE142..NAP..LE..CND ASH TRAY-WITH(FR1) |
1 | ||
| 55442-12210 |
ZRE142..NAP..LE ASH TRAY-WITH(FR1) |
1 | ||
| 55442-02470 |
ZRE142..NAP..LE..CND |
1 | ||
| 55442-02190 |
ZRE142..NAP..LE..CND |
1 | ||
| 55442-12410 |
ZRE142..NAP..LE..CND INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & WOOD&ASH TRAY-WITH(FR1) |
1 | ||
| 55442-02470 |
ZRE142..NAP..LE..CND INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & WOOD |
1 | ||
| 55442-12140 |
ZRE142..NAP..LE..CND ASH TRAY-WITH(FR1) |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-12130 |
AZE141,ZRE142..NAP ASH TRAY-WITH(FR1) |
1 | ||
| 55445-02140 |
AZE141,ZRE142..NAP |
1 | ||
| 55445-12130 |
AZE141,ZRE142..NAP ASH TRAY-WITH(FR1) |
1 | ||
| 55445-12130 |
ZRE142..NAP..LE..CND INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & WOOD&ASH TRAY-WITH(FR1) |
1 | ||
| 55445-02140 |
AZE141,ZRE142..NAP |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02180B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55446-02170B1 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),DK.GRAY,TRIM1# |
1 | ||
| 55446-02170B0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(W/SMART),GRAY,TRIM1# |
1 | ||
| 55446-02170E0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(W/SMART),GREGE,TRIM4# |
1 | ||
| 55446-02180E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55446-02180E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55446-02170E0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),GREGE,TRIM4# |
1 | ||
| 55446-02170 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 55446-02180B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55446-02170B1 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),DK.GRAY,TRIM18 |
1 | ||
| 55446-02180B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55446-02170B0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),GRAY,TRIM16 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02180B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55446-02170B1 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),DK.GRAY,TRIM1# |
1 | ||
| 55446-02170B0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(W/SMART),GRAY,TRIM1# |
1 | ||
| 55446-02170E0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(W/SMART),GREGE,TRIM4# |
1 | ||
| 55446-02180E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55446-02180E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55446-02170E0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),GREGE,TRIM4# |
1 | ||
| 55446-02170 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 55446-02180B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55446-02170B1 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),DK.GRAY,TRIM18 |
1 | ||
| 55446-02180B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55446-02170B0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),GRAY,TRIM16 |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02050E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55450-02050B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55450-02050E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55450-02050B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55450-02050B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
AZE141,ZRE142..NAP |
2 | ||
| 58959-60060 |
AZE141,ZRE142..NAP |
2 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-02130B0 |
AZE141,ZRE142..NAP DK.GRAY |
1 | ||
| 55539-02130E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55539-02130B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55539-02130B0 |
AZE141,ZRE142..NAP DK.GRAY |
1 | ||
| 55539-02130B0 |
AZE141,ZRE142..NAP..(CE,LE,XRS)..CND SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY |
1 | ||
| 55539-02130B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55539-02130E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55539-02130B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-02390 |
ZRE142..NAP..LE..CND |
1 | ||
| 55548-02160 |
ZRE142..NAP..LE |
1 | ||
| 55548-02170 |
ZRE142..NAP..LE..CND |
1 | ||
| 55548-02390 |
ZRE142..NAP..LE..CND INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & WOOD |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02250E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55550-02250B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55550-02251E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55550-02251B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55550-02251B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
AZE141,ZRE142..NAP |
2 | ||
| 55557-53030 |
AZE141,ZRE142..NAP |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02130 |
ZRE142..NAP..CND |
1 | ||
| 55607-02130 |
ZRE142..NAP |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02150B1 |
ZRE142..NAP..LE GRAY,TRIM1# |
1 | ||
| 55650-02150E0 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 55650-02152E0 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 55650-02152B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55650-02152B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02092B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55660-02090E0 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 55660-02092B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55660-02090B1 |
ZRE142..NAP..LE GRAY,TRIM1# |
1 | ||
| 55660-02092E0 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02190 |
ZRE142..NAP..LE;ZRE142..NAP..S..CND |
1 | ||
| 55670-02201 |
ZRE142..NAP..S..USA;AZE141,ZRE142..NAP..(LE,XRS) |
1 | ||
| 55670-02350 |
ZRE142..NAP..S..USA;AZE141,ZRE142..NAP..(LE,XRS) |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02100B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 58816-02100E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 58816-02100B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 58816-02100E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 58816-02100B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02100B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 58817-02100B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 58817-02100E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 58817-02100B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 58817-02100E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 74124-20130 | ||||
| 74133-12050 | ||||
| 90080-15073 | ||||
| 90080-15077 | ||||
| 90167-30006 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-A0011 | ||||
| 93540-14010 | ||||
| 93540-54010 | ||||
| 93540-55012 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8401 | ||||
| 8715 | ||||
ILLUST NO. 2 OF 2(0801- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-02120B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55041-02120E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55041-02120B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55041-02120B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55041-02120E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02250B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55045-02250E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55045-02250B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55045-02250B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55045-02250E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 55054-02030 |
AZE141,ZRE142..NAP |
1 | ||
| 55388B - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-02040 |
AZE141,ZRE142..NAP |
1 | ||
| 55388-02040 |
AZE141,ZRE142..NAP |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-02040 |
AZE141,ZRE142..NAP |
1 | ||
| 55389-02040 |
AZE141,ZRE142..NAP |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-12B10 |
ZRE142..NAP..S..USA;AZE141,ZRE142..NAP..(LE,XRS) |
1 | ||
| 55405-12B20 |
ZRE142..NAP..LE;ZRE142..NAP..S..CND AUDIO-ENTRY AVN 6SPEAKER |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02250 |
ZRE142..NAP..S..CND;ZRE142..NAP..(CE,LE,STD) |
1 | ||
| 55406-02260 |
ZRE142..NAP..LE;AZE141,ZRE142..NAP..(S,XRS)..USA |
1 | ||
| 55406-02260 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 55406-02250 |
ZRE142..NAP..LE AIR CONDITIONER-AUTO |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02100B1 |
ZRE142..NAP..(CE,LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 55410-02100E0 |
ZRE142..NAP..(CE,LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 55410-02100B0 |
ZRE142..NAP..(CE,LE,STD) DK.GRAY,TRIM1#,4# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-02220 |
AZE141,ZRE142..NAP |
1 | ||
| 55432-02220 |
AZE141,ZRE142..NAP |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-02070B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55480-02140E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55480-02070E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55480-02140B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55480-02140B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-02140 |
AZE141,ZRE142..NAP |
1 | ||
| 55433-02140 |
AZE141,ZRE142..NAP |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-02220 |
AZE141,ZRE142..NAP |
1 | ||
| 55435-02220 |
AZE141,ZRE142..NAP |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-02180 |
AZE141,ZRE142..NAP |
1 | ||
| 55436-02180 |
AZE141,ZRE142..NAP |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-02120 |
ZRE142..NAP..LE |
1 | ||
| 55440-02360 |
ZRE142..NAP..LE..CND |
1 | ||
| 55440-12190 |
ZRE142..NAP..LE ASH TRAY-WITH(FR1) |
1 | ||
| 55440-12300 |
ZRE142..NAP..LE..CND ASH TRAY-WITH(FR1) |
1 | ||
| 55440-02130 |
ZRE142..NAP..LE..CND |
1 | ||
| 55440-12300 |
ZRE142..NAP..LE..CND INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & WOOD&ASH TRAY-WITH(FR1) |
1 | ||
| 55440-02360 |
ZRE142..NAP..LE..CND INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & WOOD |
1 | ||
| 55440-12100 |
ZRE142..NAP..LE..CND ASH TRAY-WITH(FR1) |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-02180 |
ZRE142..NAP..LE |
1 | ||
| 55442-12410 |
ZRE142..NAP..LE..CND ASH TRAY-WITH(FR1) |
1 | ||
| 55442-12210 |
ZRE142..NAP..LE ASH TRAY-WITH(FR1) |
1 | ||
| 55442-02470 |
ZRE142..NAP..LE..CND |
1 | ||
| 55442-02190 |
ZRE142..NAP..LE..CND |
1 | ||
| 55442-12410 |
ZRE142..NAP..LE..CND INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & WOOD&ASH TRAY-WITH(FR1) |
1 | ||
| 55442-02470 |
ZRE142..NAP..LE..CND INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & WOOD |
1 | ||
| 55442-12140 |
ZRE142..NAP..LE..CND ASH TRAY-WITH(FR1) |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-12130 |
AZE141,ZRE142..NAP ASH TRAY-WITH(FR1) |
1 | ||
| 55445-02140 |
AZE141,ZRE142..NAP |
1 | ||
| 55445-12130 |
AZE141,ZRE142..NAP ASH TRAY-WITH(FR1) |
1 | ||
| 55445-12130 |
ZRE142..NAP..LE..CND INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & WOOD&ASH TRAY-WITH(FR1) |
1 | ||
| 55445-02140 |
AZE141,ZRE142..NAP |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02180B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55446-02170B1 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),DK.GRAY,TRIM1# |
1 | ||
| 55446-02170B0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(W/SMART),GRAY,TRIM1# |
1 | ||
| 55446-02170E0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(W/SMART),GREGE,TRIM4# |
1 | ||
| 55446-02180E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55446-02180E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55446-02170E0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),GREGE,TRIM4# |
1 | ||
| 55446-02170 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 55446-02180B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55446-02170B1 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),DK.GRAY,TRIM18 |
1 | ||
| 55446-02180B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55446-02170B0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),GRAY,TRIM16 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02180B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55446-02170B1 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),DK.GRAY,TRIM1# |
1 | ||
| 55446-02170B0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(W/SMART),GRAY,TRIM1# |
1 | ||
| 55446-02170E0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(W/SMART),GREGE,TRIM4# |
1 | ||
| 55446-02180E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55446-02180E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55446-02170E0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),GREGE,TRIM4# |
1 | ||
| 55446-02170 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 55446-02180B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55446-02170B1 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),DK.GRAY,TRIM18 |
1 | ||
| 55446-02180B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55446-02170B0 |
ZRE142..NAP..LE..CND STARTING SYSTEM-PUSH(WITH/SMART),GRAY,TRIM16 |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02050E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55450-02050B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55450-02050E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55450-02050B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55450-02050B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
AZE141,ZRE142..NAP |
2 | ||
| 58959-60060 |
AZE141,ZRE142..NAP |
2 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-02130B0 |
AZE141,ZRE142..NAP DK.GRAY |
1 | ||
| 55539-02130E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55539-02130B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55539-02130B0 |
AZE141,ZRE142..NAP DK.GRAY |
1 | ||
| 55539-02130B0 |
AZE141,ZRE142..NAP..(CE,LE,XRS)..CND SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY |
1 | ||
| 55539-02130B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55539-02130E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55539-02130B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-02390 |
ZRE142..NAP..LE..CND |
1 | ||
| 55548-02160 |
ZRE142..NAP..LE |
1 | ||
| 55548-02170 |
ZRE142..NAP..LE..CND |
1 | ||
| 55548-02390 |
ZRE142..NAP..LE..CND INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & WOOD |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02250E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55550-02250B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 55550-02251E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 55550-02251B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55550-02251B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
AZE141,ZRE142..NAP |
2 | ||
| 55557-53030 |
AZE141,ZRE142..NAP |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02130 |
ZRE142..NAP..CND |
1 | ||
| 55607-02130 |
ZRE142..NAP |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02150B1 |
ZRE142..NAP..LE GRAY,TRIM1# |
1 | ||
| 55650-02150E0 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 55650-02152E0 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 55650-02152B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55650-02152B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02092B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 55660-02090E0 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 55660-02092B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 55660-02090B1 |
ZRE142..NAP..LE GRAY,TRIM1# |
1 | ||
| 55660-02092E0 |
ZRE142..NAP..LE GREGE,TRIM4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02190 |
ZRE142..NAP..LE;ZRE142..NAP..S..CND |
1 | ||
| 55670-02201 |
ZRE142..NAP..S..USA;AZE141,ZRE142..NAP..(LE,XRS) |
1 | ||
| 55670-02350 |
ZRE142..NAP..S..USA;AZE141,ZRE142..NAP..(LE,XRS) |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02100B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 58816-02100E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 58816-02100B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 58816-02100E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 58816-02100B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02100B1 |
ZRE142..NAP..(CE,LE,STD) GRAY,TRIM1# |
1 | ||
| 58817-02100B0 |
ZRE142..NAP..LE DK.GRAY,TRIM18 |
1 | ||
| 58817-02100E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| 58817-02100B1 |
ZRE142..NAP..LE GRAY,TRIM16 |
1 | ||
| 58817-02100E0 |
ZRE142..NAP..(CE,LE,STD) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 90080-15073 | ||||
| 90080-15077 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-A0011 | ||||
| 93540-14010 | ||||
| 93540-54010 | ||||
| 93540-55012 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
