ZRE142L-DEPNKK (2010)
Toyota Corolla Nap
Production
Dec 2010
-
Aug 2013
Engine
2ZRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0801- )NAP

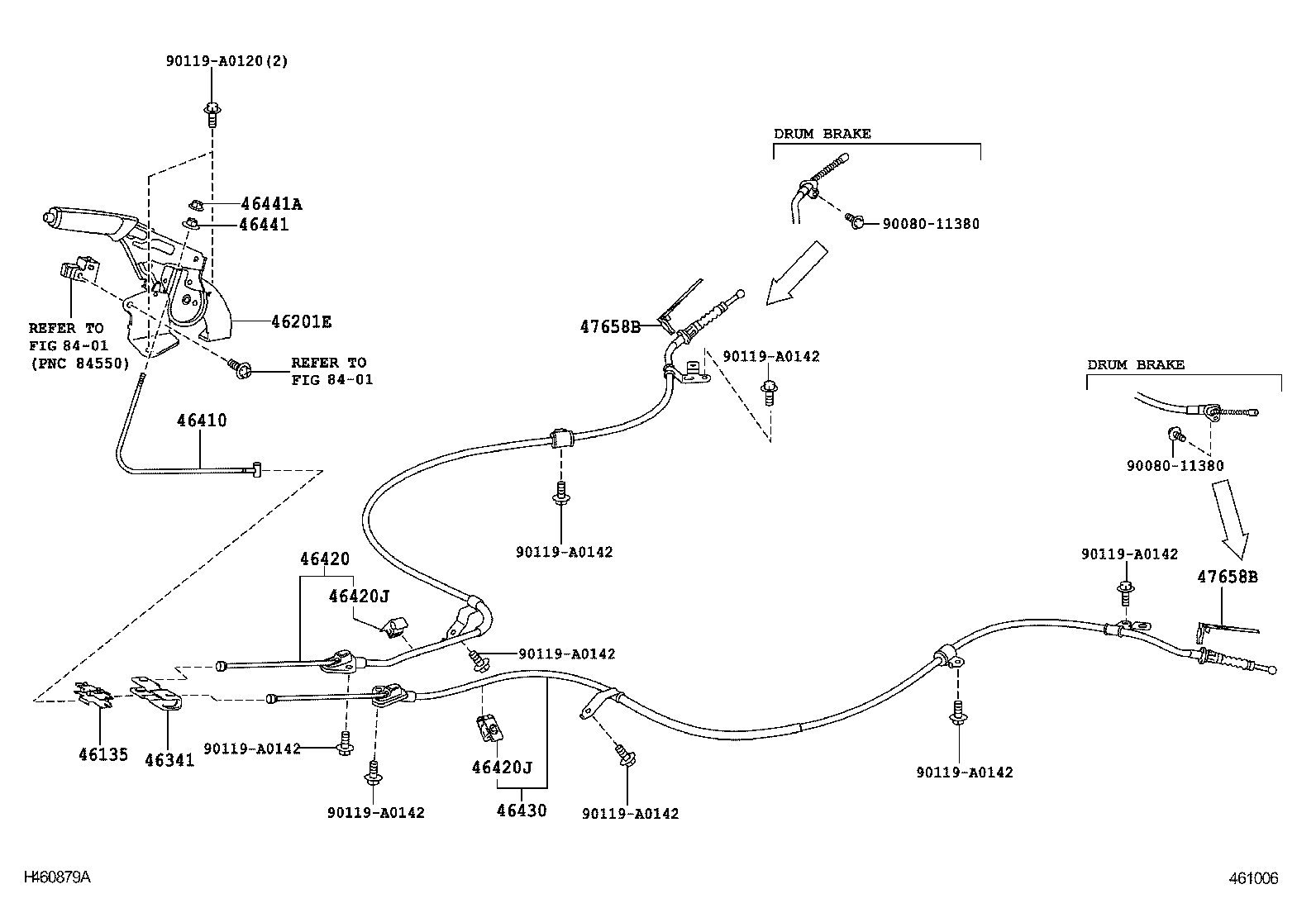

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-12010 |
AZE141,ZRE142..NAP |
1 | ||
| 46135-12010 |
AZE141,ZRE142..NAP |
1 | ||
| 46135-02070 |
AZE141,ZRE142..NAP |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-02310B0 |
ZRE142..NAP..(LE,S) DK.GRAY,TRIM1# |
1 | ||
| 46201-02310E0 |
ZRE142..NAP..LE ASH BROWN,TRIM4# |
1 | ||
| 46201-02310C0 |
ZRE142..NAP..LE BLACK,TRIM1#,4# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-02070 |
AZE141,ZRE142..NAP |
1 | ||
| 46341-02070 |
AZE141,ZRE142..NAP |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 46410-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-02190 |
ZRE142..NAP |
1 | ||
| 46420-02190 |
ZRE142..NAP |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46402-02020 |
AZE141,ZRE142..NAP |
2 | ||
| 46402-02020 |
AZE141,ZRE142..NAP |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46402-02020 |
AZE141,ZRE142..NAP |
2 | ||
| 46402-02020 |
AZE141,ZRE142..NAP |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-02190 |
ZRE142..NAP |
1 | ||
| 46430-02190 |
ZRE142..NAP |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
AZE141,ZRE142..NAP |
1 | ||
| 46441-12010 |
AZE141,ZRE142..NAP |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90178-A0073 |
AZE141,ZRE142..NAP |
1 | ||
| 90178-A0073 |
AZE141,ZRE142..NAP |
1 | ||
| Common parts | ||||
| 90080-11380 | ||||
| 90119-A0120 | ||||
| 90119-A0142 | ||||
| Linked diagrams | ||||
| 8401 | ||||
