Toyota Corolla nap ZRE142 STARTER

ZRE142L-DEPNKK (2010)

Toyota Corolla Nap

Production Dec 2010 - Aug 2013

Engine 2ZRFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0801-1108)2ZRFE..NAP

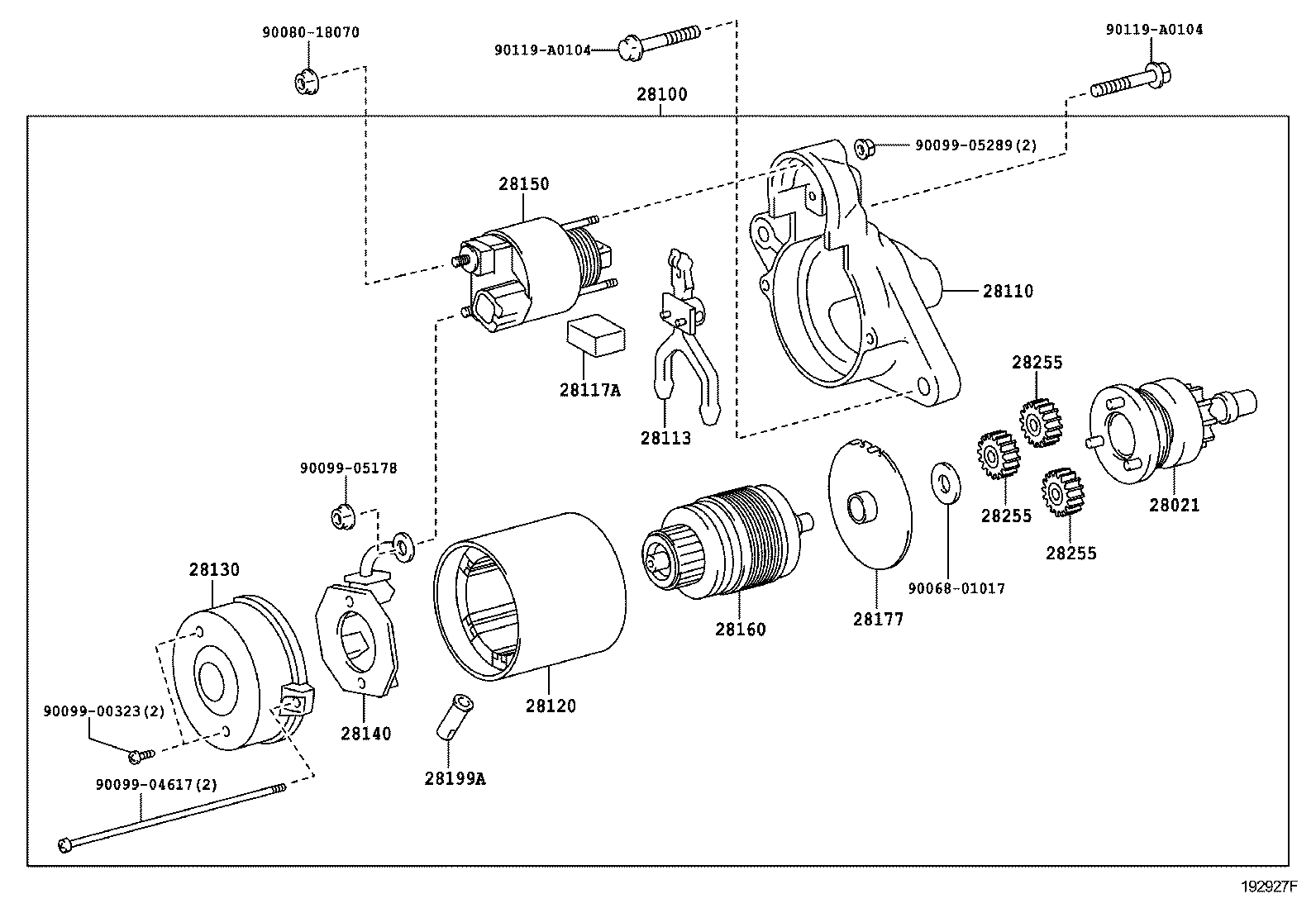

Click highlighted areas on diagram

12V 1.6KW

Part #	Description	Period	Qty
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-21060	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28021-37050	2ZRFE..ZRE142..NAP	12/2010 - 10/2012	1
28021-37050	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
28100 - STARTER ASSY
28100-0T051	2ZRFE..ZRE142..NAP 12V 1.6KW	08/2011 - 09/2012	1
28100-0T050	2ZRFE..ZRE142..NAP 12V 1.6KW	01/2008 - 12/2010	1
28100-0T260	2ZRFE..ZRE142..NAP 12V 1.6KW	10/2012 - 12/2999	1
28100-0T050	2ZRFE..ZRE142..NAP 12V 1.6KW	12/2010 - 08/2011	1
28110 - HOUSING ASSY, STARTER DRIVE
28226-0T050	2ZRFE..ZRE142..NAP	12/2010 - 08/2011	1
28110-37040	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28110-0T050	2ZRFE..ZRE142..NAP	01/2008 - 04/2009	1
28113 - LEVER, STARTER PINION DRIVE
28113-0T050	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
28113-0T050	2ZRFE..ZRE142..NAP	12/2010 - 08/2011	1
28117A - SEAL, RUBBER
28117-0H090	2AZFE,2ZRFE..AZE141,ZRE142..NAP	01/2008 - 12/2010	1
28117-0H090	2AZFE,2ZRFE..AZE141,ZRE142..NAP	12/2010 - 08/2011	1
28120 - YOKE ASSY, STARTER
28120-28060	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28120-0T050	2ZRFE..ZRE142..NAP	12/2010 - 10/2012	1
28120-0T050	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-37120	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28130-0T050	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
28130-0T050	2ZRFE..ZRE142..NAP	12/2010 - 08/2011	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-37050	2ZRFE..ZRE142..NAP	12/2010 - 10/2012	1
28140-37050	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-37050	2ZRFE..ZRE142..NAP	01/2008 - 04/2009	1
28150-37060	2ZRFE..ZRE142..NAP	12/2010 - 01/2012	1
28150-37050	2ZRFE..ZRE142..NAP	01/2012 - 10/2012	1
28160 - ARMATURE ASSY, STARTER
28160-37050	2ZRFE..ZRE142..NAP	12/2010 - 10/2012	1
28160-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	01/2008 - 12/2010	1
28160-21060	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28177 - PLATE(FOR STARTER ARMATURE)
28177-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	01/2008 - 12/2010	1
28177-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	12/2010 - 08/2011	1
28177-28040	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28199A - PROTECTOR, DUST STARTER
28199-0T050	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
28199-0T050	2ZRFE..ZRE142..NAP	12/2010 - 08/2011	1
28255 - GEAR, PLANET
28255-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	12/2010 - 08/2011	3
28255-28040	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	3
28255-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	01/2008 - 12/2010	3
28255 - GEAR, PLANET
28255-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	12/2010 - 08/2011	3
28255-28040	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	3
28255-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	01/2008 - 12/2010	3
28255 - GEAR, PLANET
28255-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	12/2010 - 08/2011	3
28255-28040	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	3
28255-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	01/2008 - 12/2010	3
Common parts
90068-01017
90080-18070
90099-00323
90099-04617
90099-05178
90099-05289
90119-A0104

(1108-1210)2ZRFE..NAP

Click highlighted areas on diagram

12V 1.6KW

Part #	Description	Period	Qty
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-21060	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28021-37050	2ZRFE..ZRE142..NAP	12/2010 - 10/2012	1
28021-37050	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
28100 - STARTER ASSY
28100-0T051	2ZRFE..ZRE142..NAP 12V 1.6KW	08/2011 - 09/2012	1
28100-0T050	2ZRFE..ZRE142..NAP 12V 1.6KW	01/2008 - 12/2010	1
28100-0T260	2ZRFE..ZRE142..NAP 12V 1.6KW	10/2012 - 12/2999	1
28100-0T050	2ZRFE..ZRE142..NAP 12V 1.6KW	12/2010 - 08/2011	1
28120 - YOKE ASSY, STARTER
28120-28060	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28120-0T050	2ZRFE..ZRE142..NAP	12/2010 - 10/2012	1
28120-0T050	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-37050	2ZRFE..ZRE142..NAP	12/2010 - 10/2012	1
28140-37050	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-37050	2ZRFE..ZRE142..NAP	01/2008 - 04/2009	1
28150-37060	2ZRFE..ZRE142..NAP	12/2010 - 01/2012	1
28150-37050	2ZRFE..ZRE142..NAP	01/2012 - 10/2012	1
28160 - ARMATURE ASSY, STARTER
28160-37050	2ZRFE..ZRE142..NAP	12/2010 - 10/2012	1
28160-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	01/2008 - 12/2010	1
28160-21060	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
Common parts
90080-18070
90119-A0104

(1210- )2ZRFE..NAP

Click highlighted areas on diagram

12V 1.6KW

Part #	Description	Period	Qty
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-21060	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28021-37050	2ZRFE..ZRE142..NAP	12/2010 - 10/2012	1
28021-37050	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
28100 - STARTER ASSY
28100-0T051	2ZRFE..ZRE142..NAP 12V 1.6KW	08/2011 - 09/2012	1
28100-0T050	2ZRFE..ZRE142..NAP 12V 1.6KW	01/2008 - 12/2010	1
28100-0T260	2ZRFE..ZRE142..NAP 12V 1.6KW	10/2012 - 12/2999	1
28100-0T050	2ZRFE..ZRE142..NAP 12V 1.6KW	12/2010 - 08/2011	1

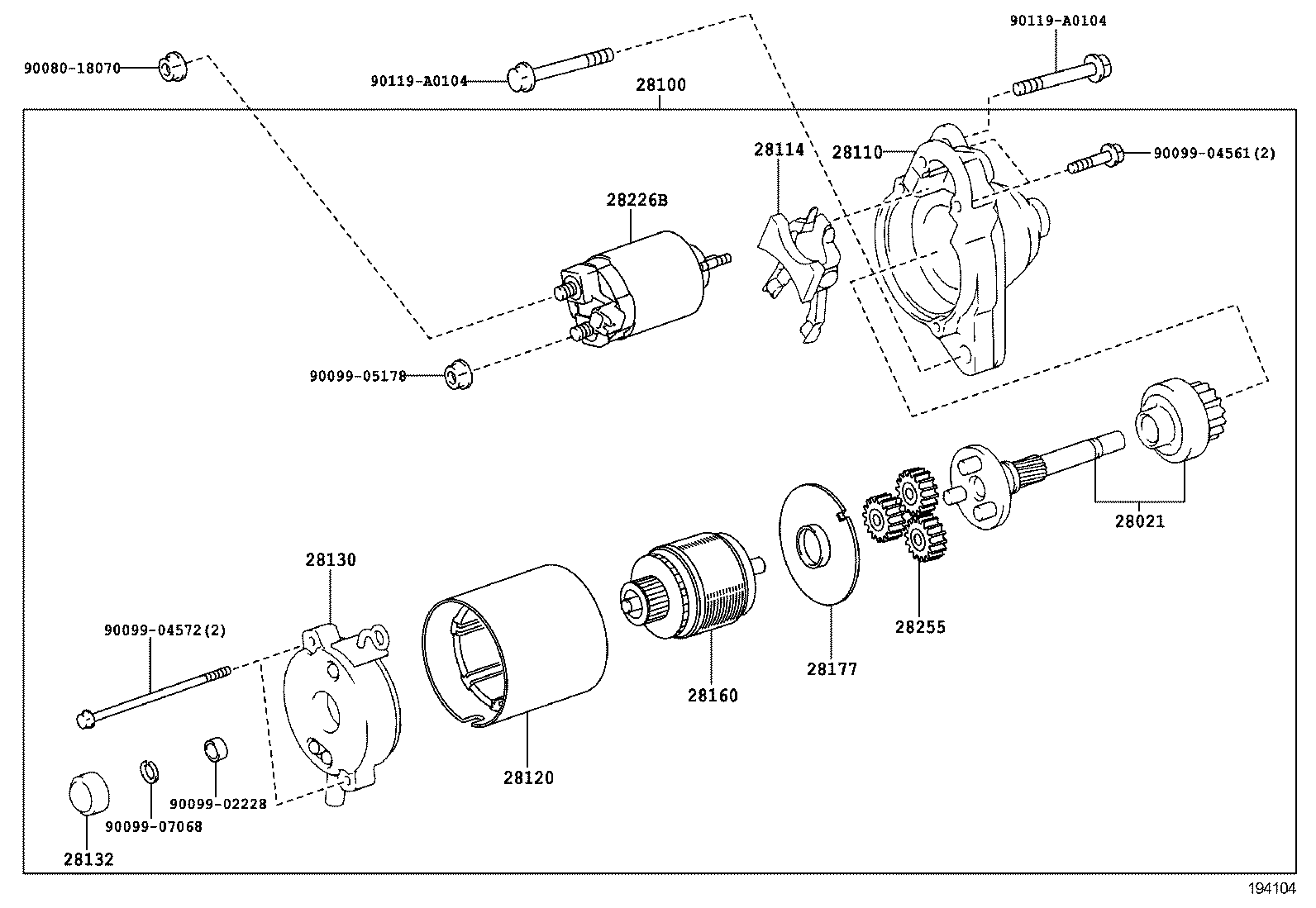

28110 - HOUSING ASSY, STARTER DRIVE
28226-0T050	2ZRFE..ZRE142..NAP	12/2010 - 08/2011	1
28110-37040	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28110-0T050	2ZRFE..ZRE142..NAP	01/2008 - 04/2009	1
28114 - PIN, STARTER DRIVE LEVER SET
28114-21060	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28120 - YOKE ASSY, STARTER
28120-28060	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28120-0T050	2ZRFE..ZRE142..NAP	12/2010 - 10/2012	1
28120-0T050	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-37120	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28130-0T050	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
28130-0T050	2ZRFE..ZRE142..NAP	12/2010 - 08/2011	1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28132-28040	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28160 - ARMATURE ASSY, STARTER
28160-37050	2ZRFE..ZRE142..NAP	12/2010 - 10/2012	1
28160-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	01/2008 - 12/2010	1
28160-21060	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28177 - PLATE(FOR STARTER ARMATURE)
28177-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	01/2008 - 12/2010	1
28177-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	12/2010 - 08/2011	1
28177-28040	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28226B - STARTER KIT, REPAIR SERVICE
28226-37120	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	1
28255 - GEAR, PLANET
28255-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	12/2010 - 08/2011	3
28255-28040	2ZRFE..ZRE142..NAP	10/2012 - 12/2999	3
28255-37050	2AZFE,2ZRFE..AZE141,ZRE142..NAP	01/2008 - 12/2010	3
Common parts
90080-18070
90099-02228
90099-04561
90099-04572
90099-05178
90099-07068
90119-A0104

ZRE142L-DEPNKK (2010)

(0801-1108)2ZRFE..NAP

(1108-1210)2ZRFE..NAP

(1210- )2ZRFE..NAP
