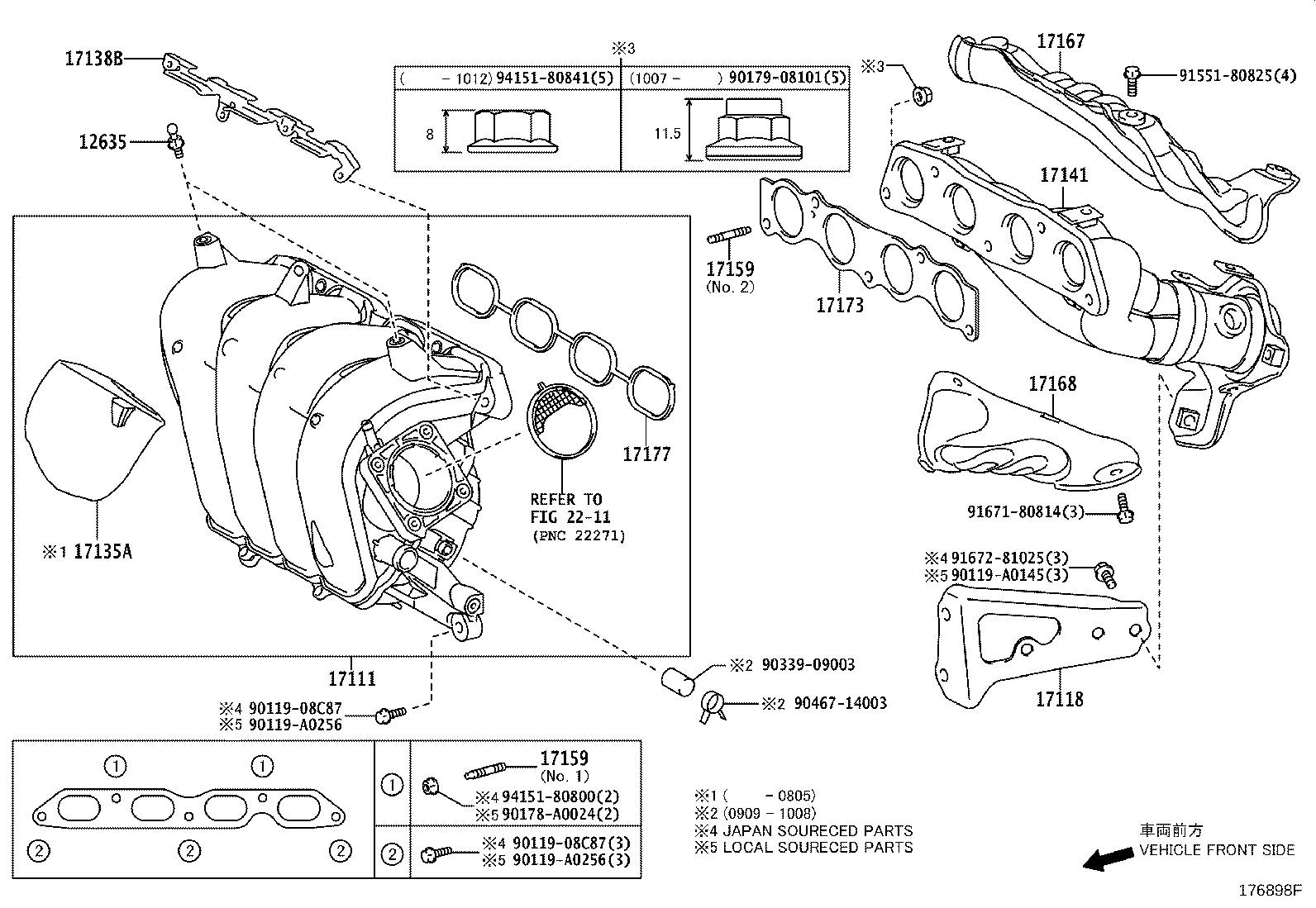

Toyota Corolla nap ZRE142 MANIFOLD

Part #	Description	Period	Qty
12635 - JOINT, ENGINE COVER
90109-06385	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	2
90109-06385	2ZRFE..ZRE142..NAP	12/2010 - 12/2999	2
17111 - MANIFOLD, INTAKE
17120-37020	2ZRFE..ZRE142..NAP (J)	01/2008 - 05/2008	1
17120-0T010	2ZRFE..ZRE142..NAP (L)	01/2008 - 07/2008	1
17120-37022	2ZRFE..ZRE142..NAP (J)	12/2010 - 12/2999	1
17120-0T012	2ZRFE..ZRE142..NAP (L)	12/2010 - 12/2999	1
17118 - STAY, MANIFOLD
17118-37010	2ZRFE..ZRE142..NAP (J)	12/2010 - 12/2999	1
17118-37010	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
17118-0T060	2ZRFE..ZRE142..NAP (L)	04/2012 - 12/2999	1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-37010	2ZRFE..ZRE142..NAP	01/2008 - 05/2008	1
17138B - STAY, INTAKE MANIFOLD
17138-0T010	2ZRFE..ZRE142..NAP (L)	12/2010 - 08/2013	1
17138-37010	2ZRFE..ZRE142..NAP	01/2008 - 08/2010	1
17138-37010	2ZRFE..ZRE142..NAP (J)	12/2010 - 05/2013	1
17138-37011	2ZRFE..ZRE142..NAP (J)	05/2013 - 08/2013	1
17141 - MANIFOLD, EXHAUST
17141-37130	2ZRFE..ZRE142..NAP (J)	12/2010 - 12/2999	1
17141-0T040	2ZRFE..ZRE142..NAP (L)	01/2008 - 12/2010	1
17141-0T080	2ZRFE..ZRE142..NAP (L)	12/2010 - 12/2999	1
17141-37051	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	2ZRFE..ZRE142..NAP NO.1	01/2008 - 12/2010	2
90126-08052	2ZRFE..ZRE142..NAP NO.2	12/2010 - 05/2013	5
90126-A0006	2ZRFE..ZRE142..NAP (L),NO.1	12/2012 - 12/2999	2
90126-08052	2ZRFE..ZRE142..NAP (J),NO.2	05/2013 - 12/2999	5
90126-A0019	2ZRFE..ZRE142..NAP (L),NO.2	05/2013 - 12/2999	5
90126-08026	2ZRFE..ZRE142..NAP NO.1	12/2010 - 12/2012	2
90126-08026	2ZRFE..ZRE142..NAP (J),NO.1	12/2012 - 12/2999	2
90126-08052	2ZRFE..ZRE142..NAP NO.2	01/2008 - 12/2010	5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	2ZRFE..ZRE142..NAP NO.1	01/2008 - 12/2010	2
90126-08052	2ZRFE..ZRE142..NAP NO.2	12/2010 - 05/2013	5
90126-A0006	2ZRFE..ZRE142..NAP (L),NO.1	12/2012 - 12/2999	2
90126-08052	2ZRFE..ZRE142..NAP (J),NO.2	05/2013 - 12/2999	5
90126-A0019	2ZRFE..ZRE142..NAP (L),NO.2	05/2013 - 12/2999	5
90126-08026	2ZRFE..ZRE142..NAP NO.1	12/2010 - 12/2012	2
90126-08026	2ZRFE..ZRE142..NAP (J),NO.1	12/2012 - 12/2999	2
90126-08052	2ZRFE..ZRE142..NAP NO.2	01/2008 - 12/2010	5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37110	2ZRFE..ZRE142..NAP (J)	12/2010 - 12/2999	1
17167-37011	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
17167-0T060	2ZRFE..ZRE142..NAP (L)	04/2012 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37100	2ZRFE..ZRE142..NAP (J)	04/2012 - 12/2999	1
17168-0T090	2ZRFE..ZRE142..NAP (L)	04/2012 - 12/2999	1
17168-37100	2ZRFE..ZRE142..NAP (J)	12/2010 - 04/2012	1
17168-37100	2ZRFE..ZRE142..NAP	01/2008 - 12/2010	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010	2ZRFE..ZRE142..NAP	01/2008 - 09/2010	1
17173-37010	2ZRFE..ZRE142..NAP (J)	12/2010 - 12/2999	1
17173-0T030	2ZRFE..ZRE142..NAP (L)	12/2010 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0T020	2ZRFE..ZRE142..NAP (L)	01/2008 - 12/2010	1
17177-0T020	2ZRFE..ZRE142..NAP (L)	12/2010 - 12/2999	1
17177-37030	2ZRFE..ZRE142..NAP (J)	01/2008 - 07/2008	1
17177-37030	2ZRFE..ZRE142..NAP (J)	12/2010 - 12/2999	1
Common parts
90119-08C87
90119-A0145
90119-A0256
90178-A0024
90179-08101
90339-09003
90467-14003
91551-80825
91671-80814
91672-81025
94151-80800
94151-80841
Linked diagrams
2211

ZRE142L-DEPNKK (2010)

(0801- )2ZRFE..NAP
