ZRE142L-DEPDKA (2008)

Toyota Corolla Nap

Production Jan 2008 - Dec 2010
Engine 2ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )AZE141..NAP ; (0801- )NAP..LE..USA; (0902- )NAP..STD

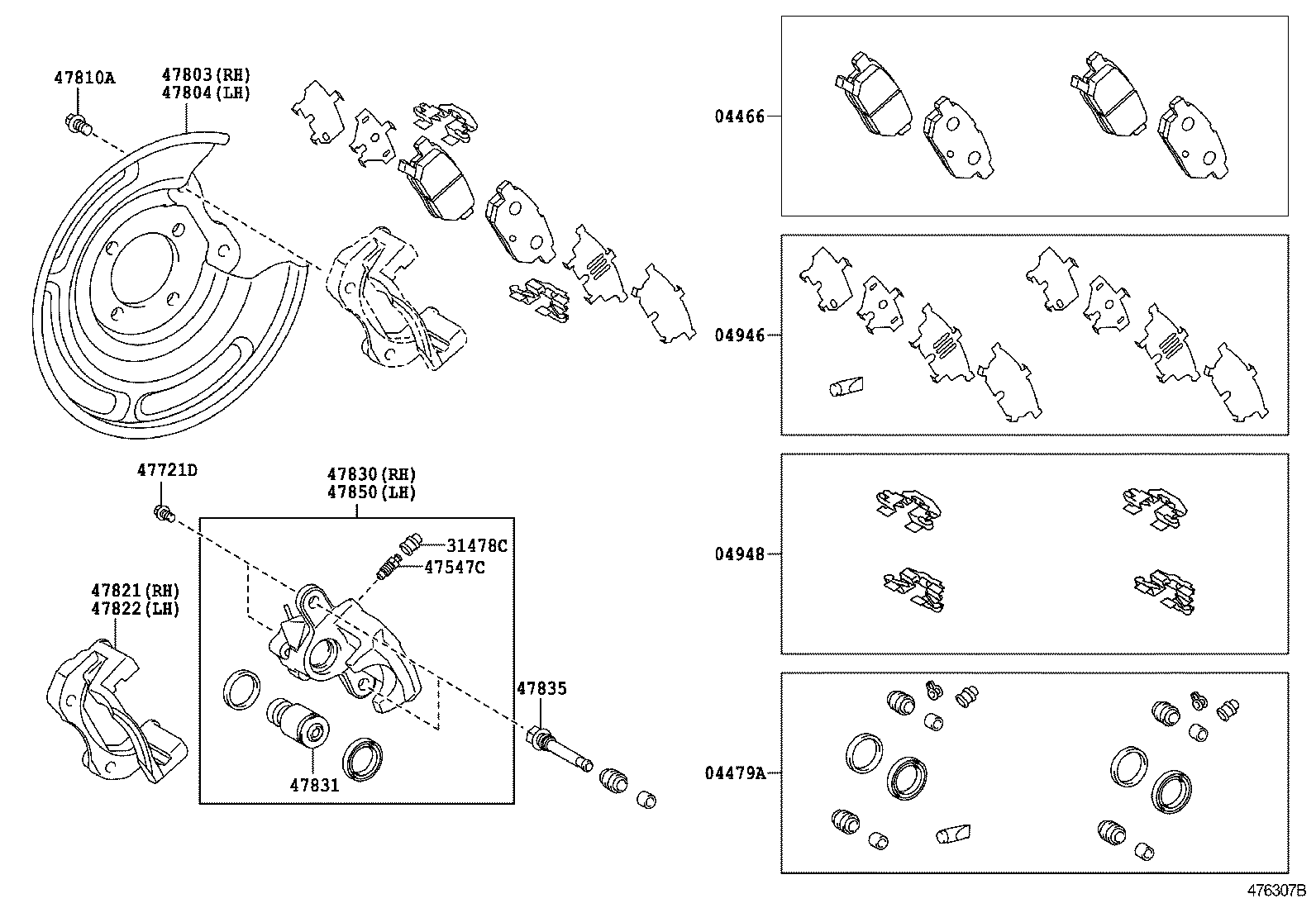

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 47547C 47721D 47803 47804 47810A 47821 47822 47830 47831 47835 47850
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-02210

ZRE142..NAP..STD

MARK AK NS254,MEXICO SPEC

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-02330

ZRE142..NAP..STD

MEXICO SPEC

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-02050

ZRE142..NAP..STD

MEXICO SPEC

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-02101

ZRE142..NAP..STD

MEXICO SPEC

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-02160

ZRE142..NAP..STD

MEXICO SPEC

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47847-02160

ZRE142..NAP..STD

MEXICO SPEC

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90016-AA104

ZRE142..NAP..STD

*8-1.25PX22-15,MEXICO SPEC

 4
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47803-02020

ZRE142..NAP..STD

MEXICO SPEC

 1
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47804-02020

ZRE142..NAP..STD

MEXICO SPEC

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-10510

ZRE142..NAP..STD

MEXICO SPEC

 4
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-02160

ZRE142..NAP..STD

MEXICO SPEC

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47821-02160

ZRE142..NAP..STD

MEXICO SPEC

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-02180

ZRE142..NAP..STD

MEXICO SPEC

 1
47831 - PISTON, REAR DISC BRAKE
47831-02180

ZRE142..NAP..STD

MEXICO SPEC

 2
47835 - PIN, REAR DISC BRAKE PAD GUIDE
47835-02160

ZRE142..NAP..STD

MEXICO SPEC

 4
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-02180

ZRE142..NAP..STD

MEXICO SPEC

 1
