ZRE142L-DEMDKK (2008)
Toyota Corolla Nap
ILLUST NO. 7 OF11(0801- )ZRE142..NAP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1E350 | ||||
| 82715-02620 | ||||
| 82715-02D30 | ||||
| 82715-02D40 | ||||
| 82715-02D50 | ||||
| 82715-02D60 | ||||
| 82715-02D70 | ||||
| 82715-02D80 | ||||
| 82715-02G50 | ||||
| 82715-12890 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12R10 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 90119-A0120 | ||||
| 90119-A0160 | ||||
| 90119-A0260 | ||||
| 91671-80616 | ||||
ILLUST NO. 1 OF11(0801-1012)NAP

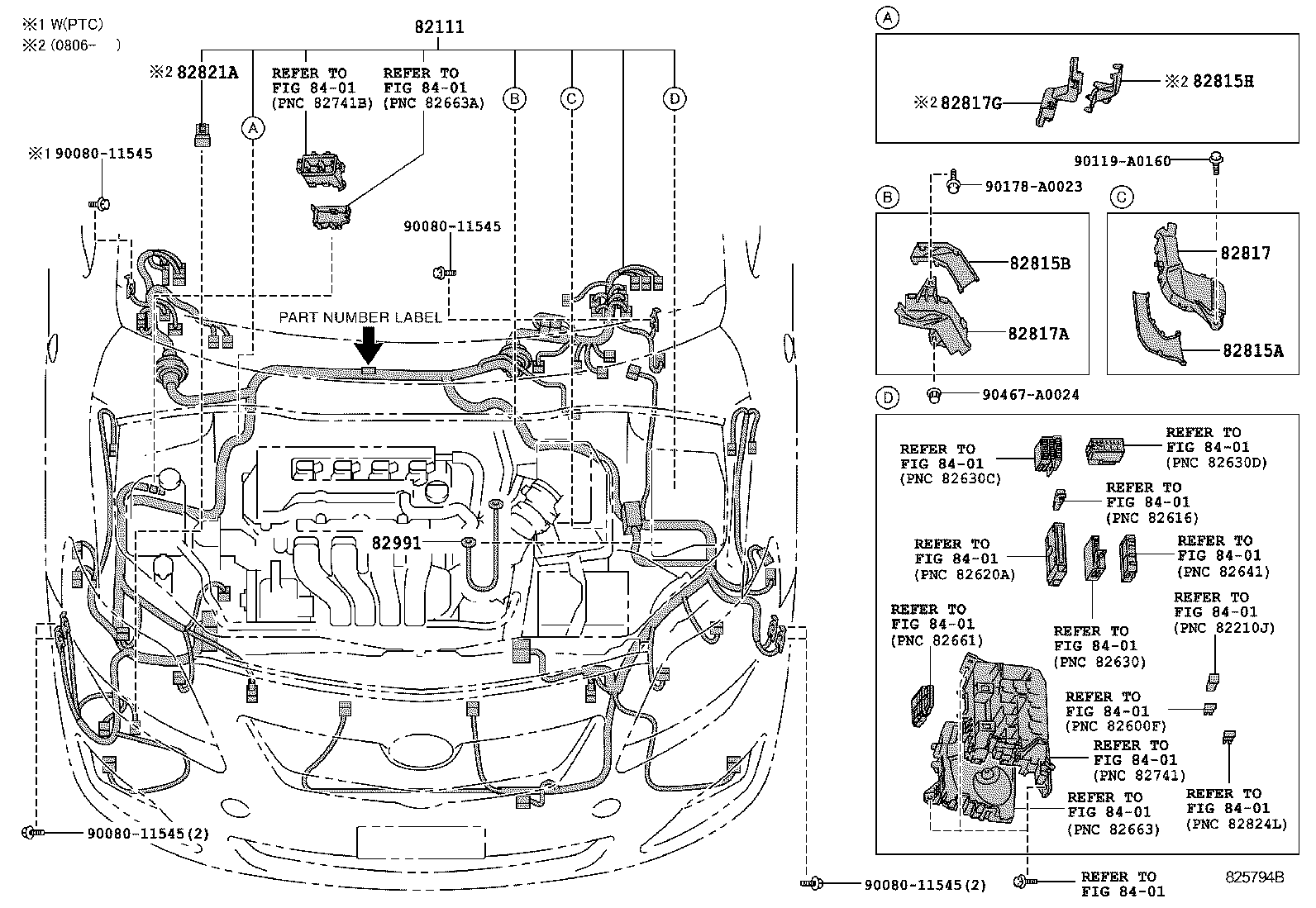

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0Z320 |
ZRE142..NAP..5F..CND |
1 | ||
| 82111-0Z480 |
ZRE142..NAP..5F..CND VSC-WITH (W/CUT OFF SW) |
1 | ||
| 82111-0ZV70 |
ZRE142..NAP..5F..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 82111-0ZW40 |
ZRE142..NAP..5F..CND |
1 | ||
| 82111-0Z320 |
ZRE142..NAP..5F..CND PART NUMBER LABEL=82111-0Z320 |
1 | ||
| 82111-0Z480 |
ZRE142..NAP..5F..CND PART NUMBER LABEL=82111-0Z480 |
1 | ||
| 82111-0ZV70 |
ZRE142..NAP..5F..CND PART NUMBER LABEL=82111-0ZV70 |
1 | ||
| 82111-0ZW40 |
ZRE142..NAP..5F..CND PART NUMBER LABEL=82111-0ZW40 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12250 |
AZE141,ZRE142..NAP |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12270 |
AZE141,ZRE142..NAP |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-02040 |
AZE141,ZRE142..NAP |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12D50 |
AZE141,ZRE142..NAP |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12D70 |
AZE141,ZRE142..NAP |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-02100 |
AZE141,ZRE142..NAP |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-35050 |
AZE141,ZRE142..NAP |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12110 |
AZE141,ZRE142..NAP |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90119-A0160 | ||||
| 90178-A0023 | ||||
| 90467-A0024 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF11(0801- )NAP
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0ZY40 |
ZRE142..NAP..CE AIR CONDITIONER-MANUAL |
1 | ||
| 82141-0ZZ30 |
ZRE142..NAP..CE |
1 | ||
| 82145-0Z510 |
ZRE142..NAP..CE |
1 | ||
| 82145-0Z420 |
ZRE142..NAP..CE AIR CONDITIONER-MANUAL |
1 | ||
| 82145-0Z511 |
ZRE142..NAP..CE |
1 | ||
| 82141-0ZZ30 |
ZRE142..NAP..CE |
1 | ||
| 82145-0Z420 |
ZRE142..NAP..CE AIR CONDITIONER-MANUAL |
1 | ||
| 82145-0Z510 |
ZRE142..NAP..CE |
1 | ||
| 82145-0Z511 |
ZRE142..NAP..CE |
1 | ||
| 82145-0ZM20 |
ZRE142..NAP..CE AIR CONDITIONER-MANUAL |
1 | ||
| 82145-0ZM10 |
ZRE142..NAP..CE WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)&AIR CONDITIONER-MANUAL;WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-MANUAL;POWER WINDOW-WITH(DRIVER ONETOUCH DOWN)&AIR CONDITIONER-MANUAL |
1 | ||
| 82145-0ZM10 |
ZRE142..NAP..CE POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)&AIR CONDITIONER-MANUAL |
1 | ||
| 82145-0ZM20 |
ZRE142..NAP..CE AIR CONDITIONER-MANUAL |
1 | ||
| 82145-0ZM10 |
ZRE142..NAP..CE WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)&AIR CONDITIONER-MANUAL |
1 | ||
| 82145-0ZM10 |
ZRE142..NAP..CE WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-MANUAL |
1 | ||
| 82141-0ZY40 |
ZRE142..NAP..CE AIR CONDITIONER-MANUAL |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-02190 |
AZE141,ZRE142..NAP |
1 | ||
| 82345A - DIODE | ||||
| 82345-12050 |
ZRE142..NAP |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-02310 |
AZE141,ZRE142..NAP |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-02340 |
AZE141,ZRE142..NAP |
2 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-02340 |
AZE141,ZRE142..NAP |
2 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-02350 |
AZE141,ZRE142..NAP |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-12450 |
ZRE142..NAP |
1 | ||
| 82666-12450 |
ZRE142..NAP |
2 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-02680 |
AZE141,ZRE142..NAP |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90159-60546 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF11(0801- )NAP
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-02J70 |
ZRE142..NAP..(CE,STD) |
1 | ||
| 82151-02J90 |
ZRE142..NAP..(CE,STD) POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN) |
1 | ||
| 82151-02K10 |
ZRE142..NAP..(CE,STD) AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 82151-02J90 |
ZRE142..NAP..(CE,STD) WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN) |
1 | ||
| 82151-02K30 |
ZRE142..NAP..CE WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)&AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 82151-02J80 |
ZRE142..NAP..(CE,STD) WIRELESS DOOR LOCK-WITH |
1 | ||
| 82151-02K30 |
ZRE142..NAP..(CE,STD) POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)&AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 82151-02K20 |
ZRE142..NAP..(CE,STD) WIRELESS DOOR LOCK-WITH&AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-02J70 |
ZRE142..NAP..(CE,STD) POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN) |
1 | ||
| 82152-02J60 |
ZRE142..NAP..(CE,STD) WIRELESS DOOR LOCK-WITH |
1 | ||
| 82152-02J70 |
ZRE142..NAP..(CE,STD) WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN) |
1 | ||
| 82152-02J90 |
ZRE142..NAP..(CE,STD) AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 82152-02J50 |
ZRE142..NAP..(CE,STD) |
1 | ||
| 82152-02K10 |
ZRE142..NAP..CE WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)&AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 82152-02K00 |
ZRE142..NAP..(CE,STD) WIRELESS DOOR LOCK-WITH&AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 82152-02K10 |
ZRE142..NAP..(CE,STD) POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)&AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02570 |
ZRE142..NAP..(CE,STD) WIRELESS DOOR LOCK-WITH |
1 | ||
| 82153-02580 |
AZE141,ZRE142..NAP..(CE,S,STD,XRS) POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN) |
1 | ||
| 82153-02580 |
ZRE142..NAP..(CE,STD) WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02410 |
ZRE142..NAP..(CE,STD) WIRELESS DOOR LOCK-WITH |
1 | ||
| 82154-02420 |
AZE141,ZRE142..NAP..(CE,S,STD,XRS) POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN) |
1 | ||
| 82154-02420 |
ZRE142..NAP..(CE,STD) WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN) |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-02690 |
AZE141,ZRE142..NAP |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-02700 |
AZE141,ZRE142..NAP |
1 | ||
| 82819C - GROMMET, WIRING HARNESS | ||||
| 82819-12740 |
ZRE142..NAP..(CE,STD) |
2 | ||
| 82819C - GROMMET, WIRING HARNESS | ||||
| 82819-12740 |
ZRE142..NAP..(CE,STD) |
2 | ||
ILLUST NO. 5 OF11(0801-1012)NAP
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-02V20 |
ZRE142..NAP..(CE,S)..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 82161-02V00 |
ZRE142..NAP..CND |
1 | ||
| 82161-02V60 |
ZRE142..NAP..(CE,S)..CND WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 82161-02V20 |
ZRE142..NAP..(CE,S)..CND |
1 | ||
| 82161-0Z610 |
AZE141,ZRE142..NAP..(CE,S,STD,XRS) |
1 | ||
| 82161-02V60 |
ZRE142..NAP..(CE,S)..CND WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN) |
1 | ||
| 82161-02V00 |
ZRE142..NAP..CND PART NUMBER LABEL=82161-02V00 |
1 | ||
| 82161-02V20 |
ZRE142..NAP..(CE,S)..CND PART NUMBER LABEL=82161-02V20 |
1 | ||
| 82161-02V60 |
ZRE142..NAP..(CE,S)..CND PART NUMBER LABEL=82161-02V60 |
1 | ||
| 82161-02V20 |
ZRE142..NAP..(CE,S)..CND PART NUMBER LABEL=82161-02V20 |
1 | ||
| 82161-0Z610 |
AZE141,ZRE142..NAP..(CE,S,STD,XRS) PART NUMBER LABEL=82161-0Z610 |
1 | ||
| 82161-02V60 |
ZRE142..NAP..(CE,S)..CND PART NUMBER LABEL=82161-02V60 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-02740 |
ZRE142..NAP..CND |
1 | ||
| 82162-02760 |
ZRE142..NAP..(CE,S)..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 82162-02780 |
ZRE142..NAP..(CE,S)..CND WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 82162-02780 |
ZRE142..NAP..(CE,S)..CND WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN) |
1 | ||
| 82162-02760 |
ZRE142..NAP..(CE,S)..CND |
1 | ||
| 82162-02740 |
ZRE142..NAP..CND PART NUMBER LABEL=82162-02740 |
1 | ||
| 82162-02760 |
ZRE142..NAP..(CE,S)..CND PART NUMBER LABEL=82162-02760 |
1 | ||
| 82162-02780 |
ZRE142..NAP..(CE,S)..CND PART NUMBER LABEL=82162-02780 |
1 | ||
| 82162-02760 |
ZRE142..NAP..(CE,S)..CND PART NUMBER LABEL=82162-02760 |
1 | ||
| 82162-02780 |
ZRE142..NAP..(CE,S)..CND PART NUMBER LABEL=82162-02780 |
1 | ||

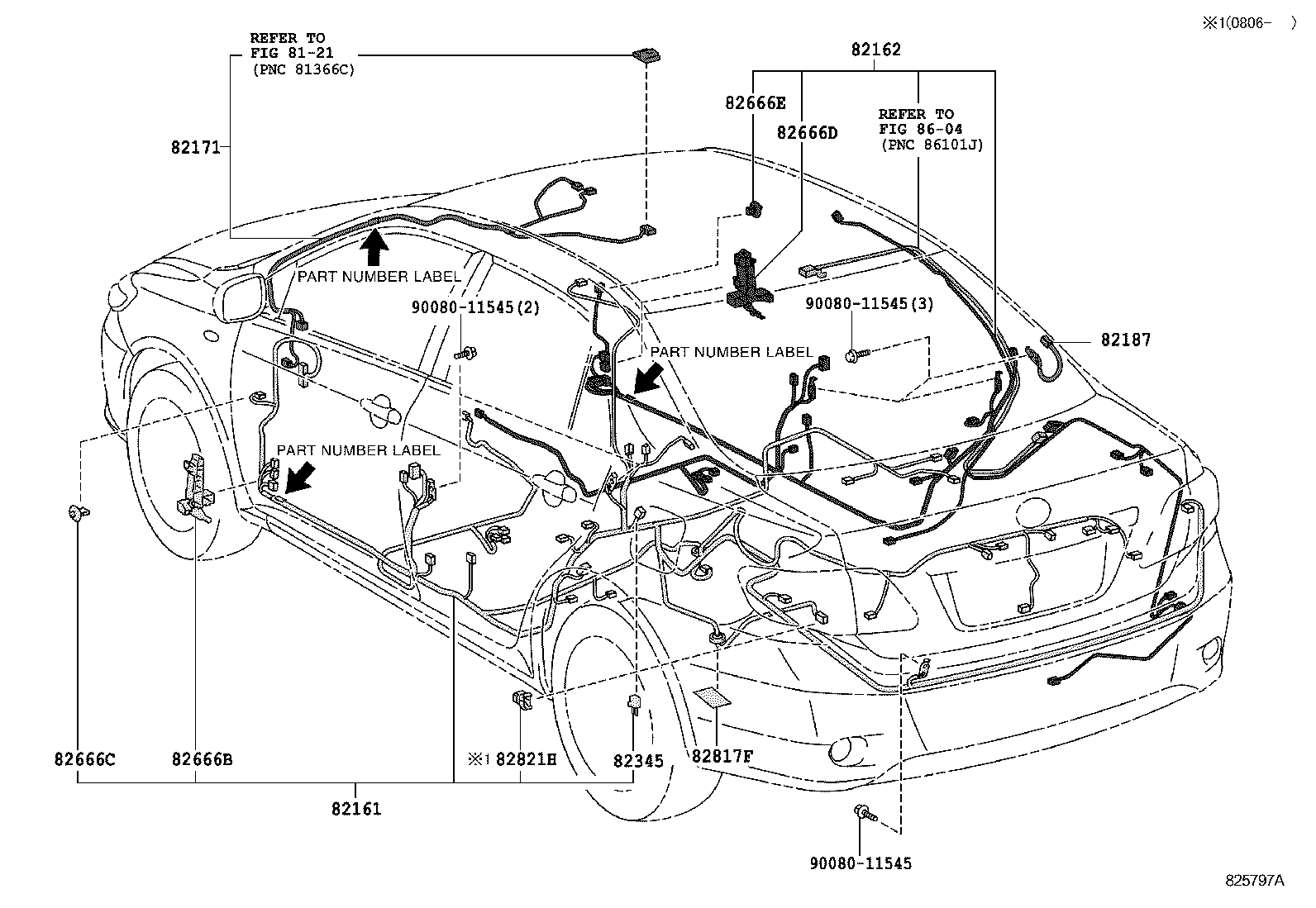

| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02F30 |
AZE141,ZRE142..NAP MOON ROOF-TILT & SLIDE MOON ROOF |
1 | ||
| 82171-02F50 |
AZE141,ZRE142..NAP |
1 | ||
| 82171-02P70 |
AZE141,ZRE142..NAP MOON ROOF-TILT & SLIDE MOON ROOF |
1 | ||
| 82171-02F50 |
AZE141,ZRE142..NAP PART NUMBER LABEL=82171-02F50 |
1 | ||
| 82171-02P70 |
AZE141,ZRE142..NAP PART NUMBER LABEL=82171-02P70 |
1 | ||
| 82171-02F30 |
AZE141,ZRE142..NAP PART NUMBER LABEL=82171-02F30 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-02150 |
AZE141,ZRE142..NAP |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AZE141,ZRE142..NAP |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-02320 |
AZE141,ZRE142..NAP |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-20280 |
AZE141,ZRE142..NAP |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-02330 |
AZE141,ZRE142..NAP |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-20280 |
AZE141,ZRE142..NAP |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-1A640 |
AZE141,ZRE142..NAP |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-48040 |
AZE141,ZRE142..NAP |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8604 | ||||
ILLUST NO. 6 OF11(0801- )NAP
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-02030 |
AZE141,ZRE142..NAP |
1 | ||
ILLUST NO. 8 OF11(0801- )NAP
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-A7013 |
ZRE142..NAP |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-A7013 |
ZRE142..NAP |
1 | ||
| Common parts | ||||
| 82711-35060 | ||||
| 90080-11399 | ||||
| 90080-11545 | ||||
| 90119-A0120 | ||||

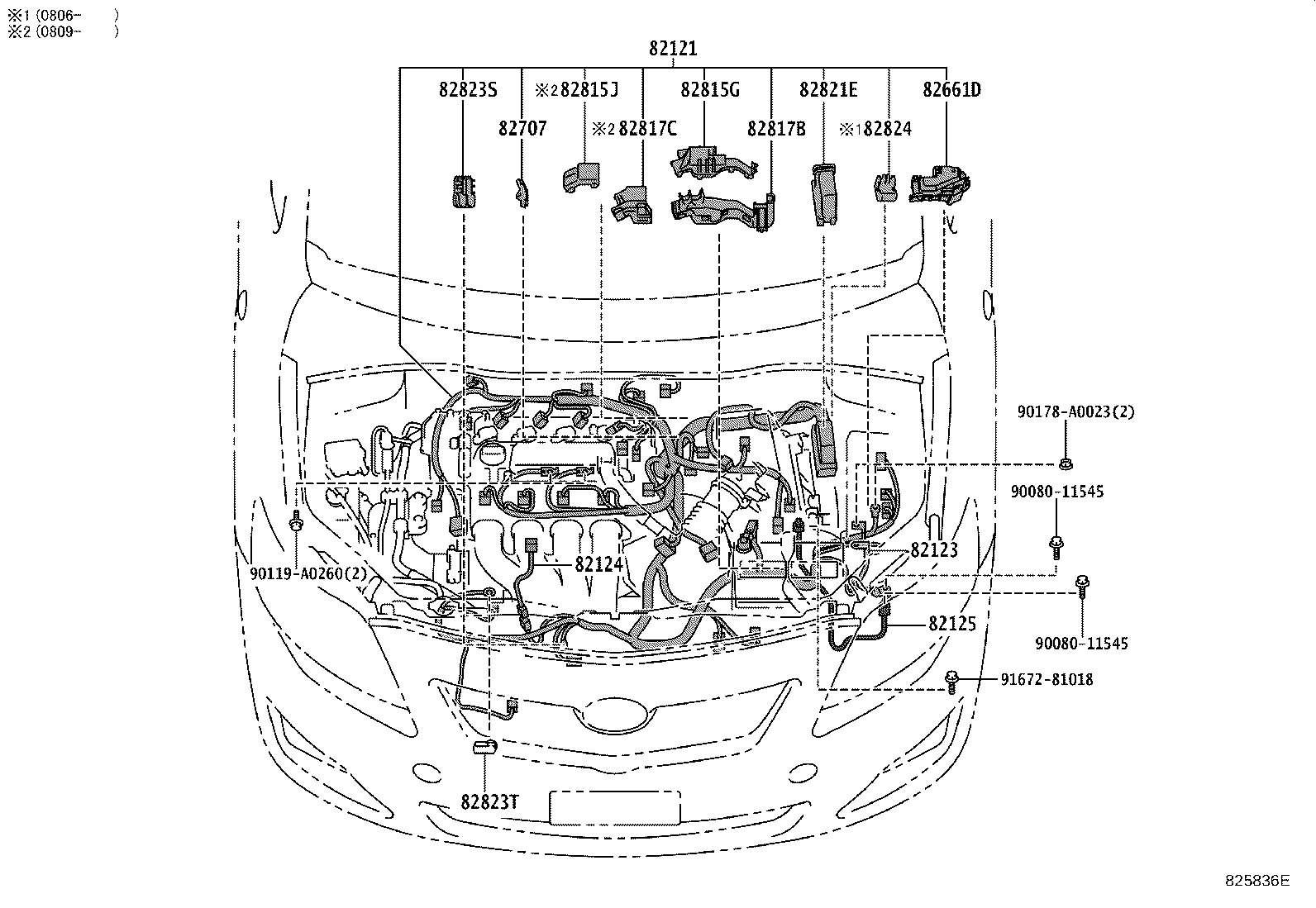

ILLUST NO. 2 OF11(0801-1012)ZRE142..NAP
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-02M40 |
ZRE142..NAP..5F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02330 |
AZE141,ZRE142..NAP |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02090 |
ZRE142..NAP (L),TOYOTA |
1 | ||
| 82124-02070 |
ZRE142..NAP YAZAKI |
1 | ||
| 82124-12160 |
ZRE142..NAP (J),TOYOTA |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-02180 |
ZRE142..NAP..5F |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12280 |
AZE141,ZRE142..NAP |
1 | ||
| 82707 - SUPPORT SUB-ASSY, WIRING HARNESS | ||||
| 82712-12070 |
ZRE142..NAP |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-12380 |
ZRE142..NAP |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-02310 |
ZRE142..NAP |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12G50 |
ZRE142..NAP |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-02860 |
ZRE142..NAP |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-12560 |
AZE141,ZRE142..NAP |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12110 |
AZE141,ZRE142..NAP |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
AZE141,ZRE142..NAP |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-34100 |
AZE141,ZRE142..NAP |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90119-A0260 | ||||
| 90178-A0023 | ||||
| 91672-81018 | ||||
ILLUST NO. 9 OF11(0801- )NAP
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-11020 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-12717 | ||||
ILLUST NO.10 OF11(0801- )NAP
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52330 | ||||
| 90980-10801 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12012 | ||||
| 90980-12038 | ||||
| 90980-12404 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
ILLUST NO.11 OF11(0801- )NAP
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-12686 | ||||
| 90980-12687 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
