ZRE142L-DEMDKK (2008)

Toyota Corolla Nap

Production Jan 2008 - Dec 2010
Engine 2ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0801-1012)NAP

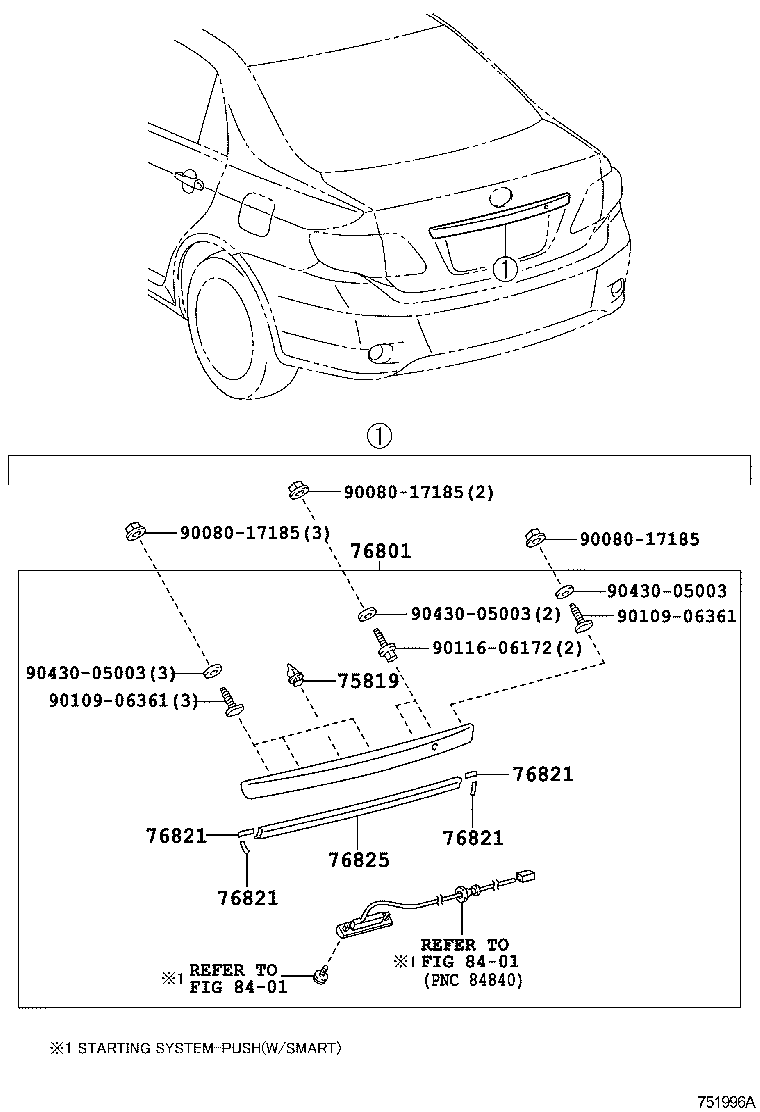

Click highlighted areas on diagram

diagram 75819 76801 76821 76821 76821 76821 76825 8401 8401 9008017185 9008017185 9008017185 9010906361 9010906361 9011606172 9043005003 9043005003 9043005003
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

AZE141,ZRE142..NAP

 1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-02350C0

AZE141,ZRE142..NAP

BLACK MC.,209

 1
76801-02350H0

ZRE142..NAP..(CE,LE,STD)

TURQUOISE M.M.,779

 1
76801-02350J0

AZE141,ZRE142..NAP

BLUE ME.,8T7

 1
76801-02350B0

AZE141,ZRE142..NAP

SILVER ME.,1F7

 1
76801-02350D0

AZE141,ZRE142..NAP

RED M.M.,3R3

 1
76801-02350A0

AZE141,ZRE142..NAP

SUPER WHITE 2,040

 1
76801-02350E0

ZRE142..NAP..(CE,LE,STD)

BEIGE M. M.,4Q2

 1
76801-02350B1

AZE141,ZRE142..NAP

GRAY ME.,1G3

 1
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-02100

AZE141,ZRE142..NAP

 4
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-02100

AZE141,ZRE142..NAP

 4
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-02100

AZE141,ZRE142..NAP

 4
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-02100

AZE141,ZRE142..NAP

 4
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-02060

AZE141,ZRE142..NAP

 1
Common parts
90080-17185
90109-06361
90116-06172
90430-05003
Linked diagrams
8401
