ZRE142L-DEMDKK (2008)

Toyota Corolla Nap

Production Jan 2008 - Dec 2010
Engine 2ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0801-1112)NAP

Click highlighted areas on diagram

DOOR TRIM

diagram 67491A 67491A 67492A 67492A 67601 67601B 67601E 67602 67625 67626 6777112060 6777112060 68171B 68172A 7401 8602 9008015074 9008016113 9018906018 9046804181 9046804181
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-02250

ZRE142..NAP..(CE,STD)

 1
67491-02260

ZRE142..NAP..(CE,STD)

AUDIO-AM/FM CD CHANGER 6SPEAKER

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-02250

ZRE142..NAP..(CE,STD)

 1
67491-02260

ZRE142..NAP..(CE,STD)

AUDIO-AM/FM CD CHANGER 6SPEAKER

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-02250

ZRE142..NAP..(CE,STD)

 1
67492-02260

ZRE142..NAP..(CE,STD)

AUDIO-AM/FM CD CHANGER 6SPEAKER

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-02250

ZRE142..NAP..(CE,STD)

 1
67492-02260

ZRE142..NAP..(CE,STD)

AUDIO-AM/FM CD CHANGER 6SPEAKER

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-02J60E0

ZRE142..NAP..(CE,STD)

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#

 1
67610-02J50E0

ZRE142..NAP..(CE,STD)

GREGE,TRIM4#

 1
67610-02J50B0

ZRE142..NAP..(CE,STD)

GRAY,TRIM1#

 1
67610-02J60B0

ZRE142..NAP..(CE,STD)

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-A0005

AZE141,ZRE142..NAP

 20
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
74223-02090B1

ZRE142..NAP..(CE,LE,STD)

GRAY,TRIM1#

 2
74223-02090E0

ZRE142..NAP..(CE,LE,STD)

GREGE,TRIM4#

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-02J50B0

ZRE142..NAP..(CE,STD)

GRAY,TRIM1#

 1
67620-02J50E0

ZRE142..NAP..(CE,STD)

GREGE,TRIM4#

 1
67620-02J60E0

ZRE142..NAP..(CE,STD)

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#

 1
67620-02J60B0

ZRE142..NAP..(CE,STD)

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#

 1
67625 - BRACKET, FRONT DOOR TRIM, RH
67625-02120

AZE141,ZRE142..NAP

 1
67626 - BRACKET, FRONT DOOR TRIM, LH
67625-02120

AZE141,ZRE142..NAP

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-02180

AZE141,ZRE142..NAP

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-02170

AZE141,ZRE142..NAP

 1
Common parts
67771-12060
90080-15074
90080-16113
90189-06018
90468-04181
Linked diagrams
7401
8602

ILLUST NO. 1 OF 2(0801-1012)NAP

Click highlighted areas on diagram

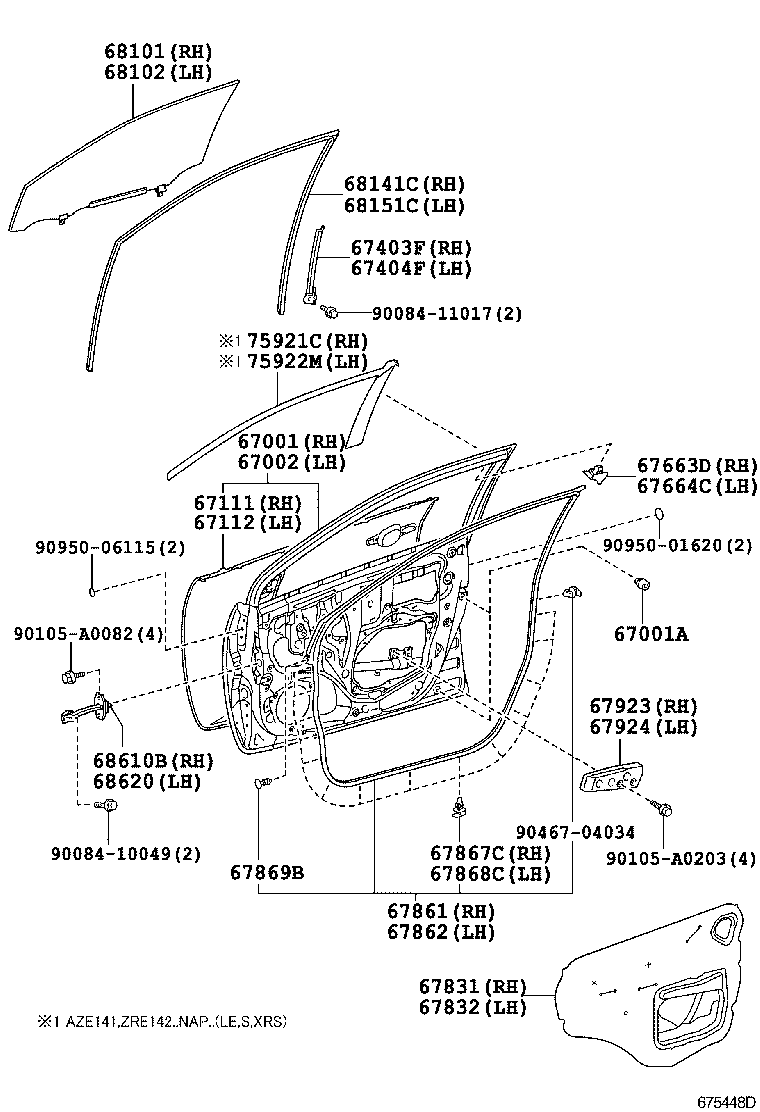

DOOR PANEL

diagram 67001 67001A 67002 67111 67112 67403F 67404F 67663D 67664C 67831 67832 67861 67862 67867C 67868C 67869B 67923 67924 68101 68102 68141C 68151C 68610B 68620 75921C 75922M 9008410049 9008411017 90105A0082 90105A0203 9046704034 9095001620 9095006115
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-02340

AZE141,ZRE142..NAP

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09124

AZE141,ZRE142..NAP

 4
90541-09143

AZE141,ZRE142..NAP

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-02330

AZE141,ZRE142..NAP

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-02180

AZE141,ZRE142..NAP

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-02180

AZE141,ZRE142..NAP

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-02110

AZE141,ZRE142..NAP

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-02110

AZE141,ZRE142..NAP

 1
67663D - GARNISH, DOOR FRAME, RH
67663-0E010

AZE141,ZRE142..NAP

 1
67664C - GARNISH, DOOR FRAME, LH
67664-0E010

AZE141,ZRE142..NAP

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-02240

AZE141,ZRE142..NAP

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-02240

AZE141,ZRE142..NAP

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-02220

AZE141,ZRE142..NAP

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-02220

AZE141,ZRE142..NAP

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-02020

AZE141,ZRE142..NAP

 14
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-02020

AZE141,ZRE142..NAP

 14
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030

AZE141,ZRE142..NAP

 2
67923 - CUSHION, FRONT DOOR STIFFENER, NO.1
67923-02070

AZE141,ZRE142..NAP

 1
67924 - CUSHION, FRONT DOOR STIFFENER, NO.2
67924-02080

AZE141,ZRE142..NAP

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-02280

AZE141,ZRE142..NAP

*HSEA,T=3.5,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-02280

AZE141,ZRE142..NAP

*HSEA,T=3.5,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-02260

AZE141,ZRE142..NAP

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-02240

AZE141,ZRE142..NAP

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-02160

AZE141,ZRE142..NAP

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-02160

AZE141,ZRE142..NAP

 1
Common parts
90084-10049
90084-11017
90105-A0082
90105-A0203
90467-04034
90950-01620
90950-06115
