ZRE142L-DEMDKK (2008)

Toyota Corolla Nap

Production Jan 2008 - Dec 2010
Engine 2ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0801-1012)NAP

Click highlighted areas on diagram

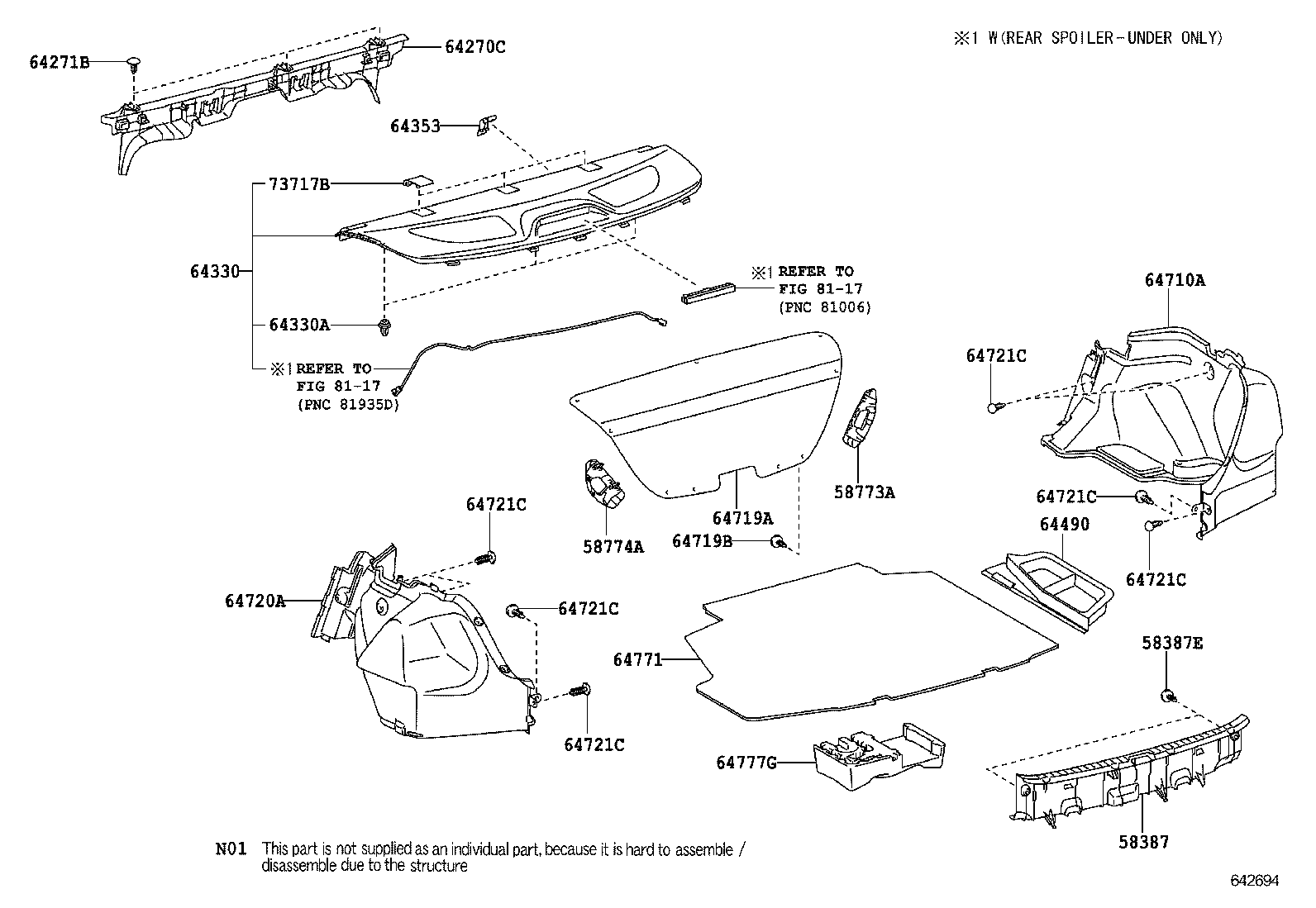

diagram 58387 58387E 58773A 58774A 64270C 64271B 64330 64330A 64353 64490 64710A 64719A 64719B 64720A 64721C 64721C 64721C 64721C 64721C 64721C 64771 64777G 73717B 8117 8117
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-02100B0

ZRE142..NAP;AZE141..NAP..5FC

DK.GRAY

 1
58387E - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 2
58773A - COVER, LUGGAGE COMPARTMENT SIDE, RH
58773-02100B0

ZRE142..NAP;AZE141..NAP..5FC

DK.GRAY

 1
58774A - COVER, LUGGAGE COMPARTMENT SIDE, LH
58774-02090B0

ZRE142..NAP;AZE141..NAP..5FC

DK.GRAY

 1
64270C - BOARD ASSY, ROOM PARTITION
64271-02120

AZE141,ZRE142..NAP

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 3
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-02720B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#

 1
64330-02720E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-A0006

AZE141,ZRE142..NAP

 3
64353 - COVER, PACKAGE TRAY TRIM BELT HOLE
64353-02060B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#

 1
64353-02060E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#

 1
64490 - TRAY ASSY, LUGGAGE COMPARTMENT SIDE
64490-02030

AZE141,ZRE142..NAP

 1
64710A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
64710-02140C0

ZRE142..NAP..(CE,LE,STD)

BLACK,TRIM1#,4#

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-02100C0

ZRE142..NAP..(CE,LE,STD)

BLACK,TRIM1#,4#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 9
64720A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
64720-02140C0

ZRE142..NAP..(CE,LE,STD)

BLACK,TRIM1#,4#

 1
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C0

AZE141,ZRE142..NAP

BLACK

 8
64771 - COVER, SPARE WHEEL
64771-02110C0

ZRE142..NAP..(CE,LE,STD)

BLACK,TRIM1#,4#

 1
64777G - CUSHION, SPARE WHEEL
64777-02140

AZE141,ZRE142..NAP

 1
73717B - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-02100B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#,LH

 1
73717-02080B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#,CENTER

 1
73717-02090B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#,RH

 1
73717-02080E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#,CENTER

 1
73717-02090E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#,RH

 1
73717-02100E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#,LH

 1
