ZRE142L-DEMDKK (2008)
Toyota Corolla Nap
Production
Jan 2008
-
Dec 2010
Engine
2ZRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0801-1105)AZE141..NAP ; (0801-1107)ZRE142..NAP

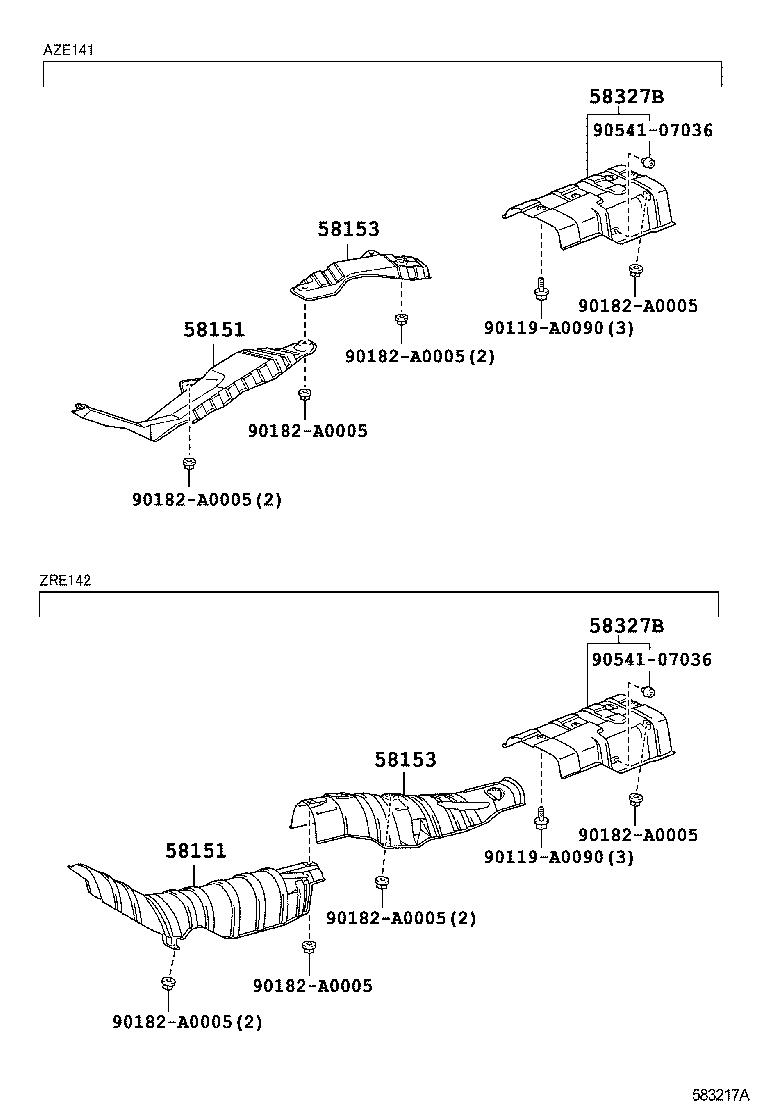

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-02150 |
ZRE142..NAP |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-02150 |
ZRE142..NAP |
1 | ||
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58153-02150 |
AZE141,ZRE142..NAP |
1 | ||
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58153-02150 |
AZE141,ZRE142..NAP |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-02050 |
AZE141,ZRE142..NAP |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-02050 |
AZE141,ZRE142..NAP |
1 | ||
| Common parts | ||||
| 90119-A0090 | ||||
| 90182-A0005 | ||||
| 90541-07036 | ||||
