ZRE142L-DEMDKK (2008)

Toyota Corolla Nap

Production Jan 2008 - Dec 2010
Engine 2ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0801-1012)NAP

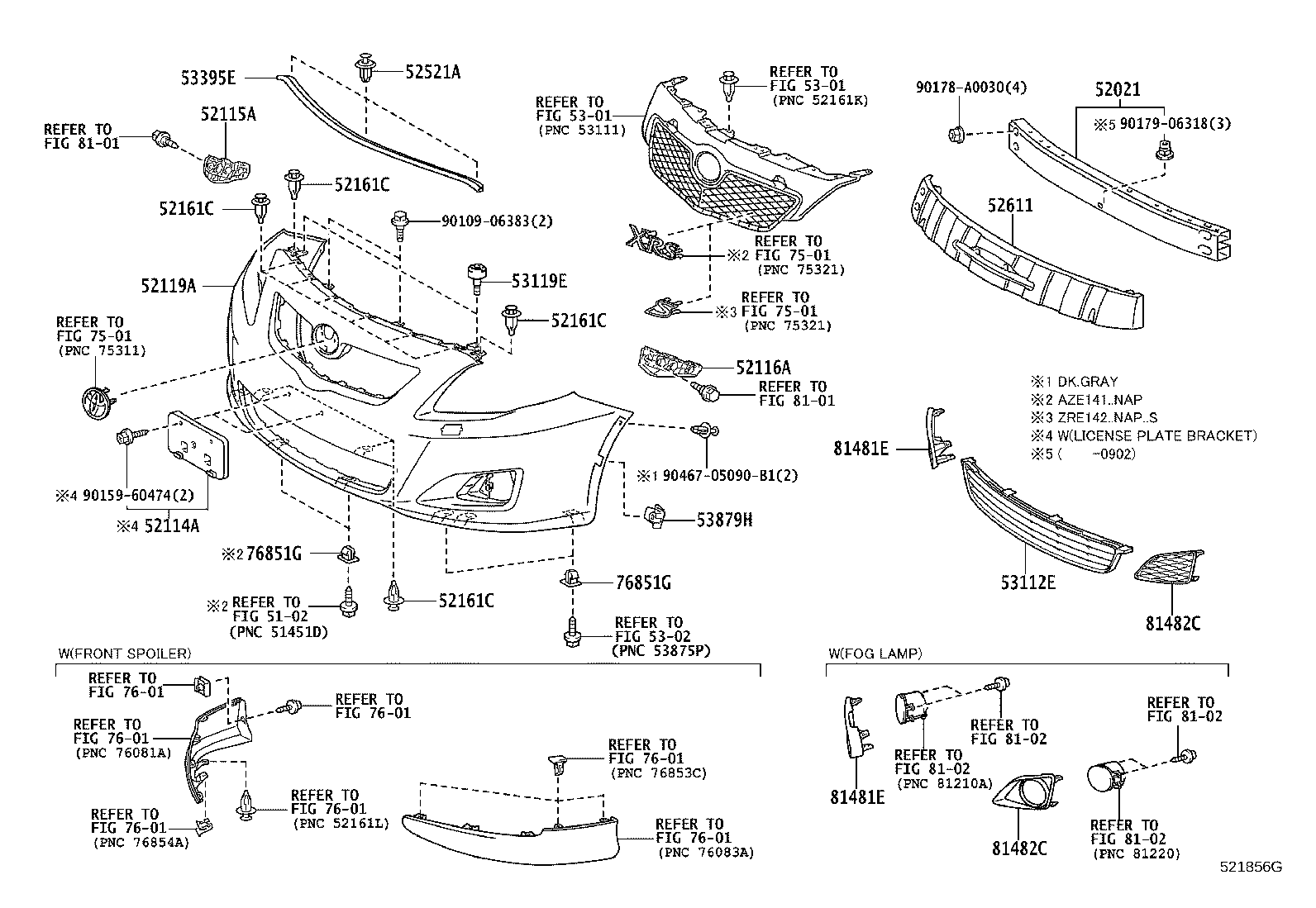

Click highlighted areas on diagram

diagram 5102 52021 52114A 52115A 52116A 52119A 52161C 52161C 52161C 52161C 52521A 52611 5301 5301 5302 53112E 53119E 53395E 53879H 7501 7501 7501 7601 7601 7601 7601 7601 7601 7601 76851G 76851G 8101 8101 8102 8102 8102 8102 81481E 81481E 81482C 81482C 9010906383 9015960474 90178A0030 9017906318 9046705090B1
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-02150

AZE141,ZRE142..NAP..CND

 1
52021-02151

AZE141,ZRE142..NAP

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-02040

AZE141,ZRE142..NAP..CND

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02130

AZE141,ZRE142..NAP

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02130

AZE141,ZRE142..NAP

 1
52119A - COVER, FRONT BUMPER
52119-02990

ZRE142..NAP..(CE,LE,STD)

 1
52161C - PIECE, FRONT BUMPER
52161-02020

AZE141,ZRE142..NAP

 10
52161C - PIECE, FRONT BUMPER
52161-02020

AZE141,ZRE142..NAP

 10
52161C - PIECE, FRONT BUMPER
52161-02020

AZE141,ZRE142..NAP

 10
52161C - PIECE, FRONT BUMPER
52161-02020

AZE141,ZRE142..NAP

 10
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05063C0

AZE141,ZRE142..NAP

BLACK

 3
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-02170

AZE141,ZRE142..NAP

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-02120

AZE141,ZRE142..NAP

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-42020

AZE141,ZRE142..NAP

 2
53395E - SEAL, HOOD TO FRONT END PANEL
53395-02040

AZE141,ZRE142..NAP

 1
53879H - RETAINER, FRONT FENDER LINER
53879-58010

AZE141,ZRE142..NAP

 2
76851G - GROMMET, SCREW, NO.1
90189-06193

ZRE142..NAP

 4
76851G - GROMMET, SCREW, NO.1
90189-06193

ZRE142..NAP

 4
81481E - COVER, FOG LAMP, RH
81481-02090

ZRE142..NAP..(CE,LE,STD)

 1
81481E - COVER, FOG LAMP, RH
81481-02090

ZRE142..NAP..(CE,LE,STD)

 1
81482C - COVER, FOG LAMP, LH
81482-02080

ZRE142..NAP..(CE,LE,STD)

 1
81482C - COVER, FOG LAMP, LH
81482-02080

ZRE142..NAP..(CE,LE,STD)

 1
Common parts
90109-06383
90159-60474
90178-A0030
90179-06318
90467-05090B1
Linked diagrams
5102
5301
5302
7501
7601
8101
8102
