ZRE142L-DEMDKK (2008)
Toyota Corolla Nap
ILLUST NO. 2 OF 2(0801- )ZRE142..NAP
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-02440 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 44050-02270 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 44050-02260 |
ZRE142..NAP..CND |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
AZE141,ZRE142..NAP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
AZE141,ZRE142..NAP |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-02200 |
ZRE142..NAP..CND |
1 | ||
| 44590-02210 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 44590-02140 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| Common parts | ||||
| 44521-02050 | ||||
| 90080-11509 | ||||
| 90119-A0291 | ||||
| 90179-08189 | ||||
ILLUST NO. 2 OF 2(0801- )NAP
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-02440 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 44050-02270 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 44050-02260 |
ZRE142..NAP..CND |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
AZE141,ZRE142..NAP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
AZE141,ZRE142..NAP |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-02200 |
ZRE142..NAP..CND |
1 | ||
| 44590-02210 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 44590-02140 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| Common parts | ||||
| 44521-02050 | ||||
| 90080-11509 | ||||
| 90119-A0291 | ||||
| 90179-08189 | ||||

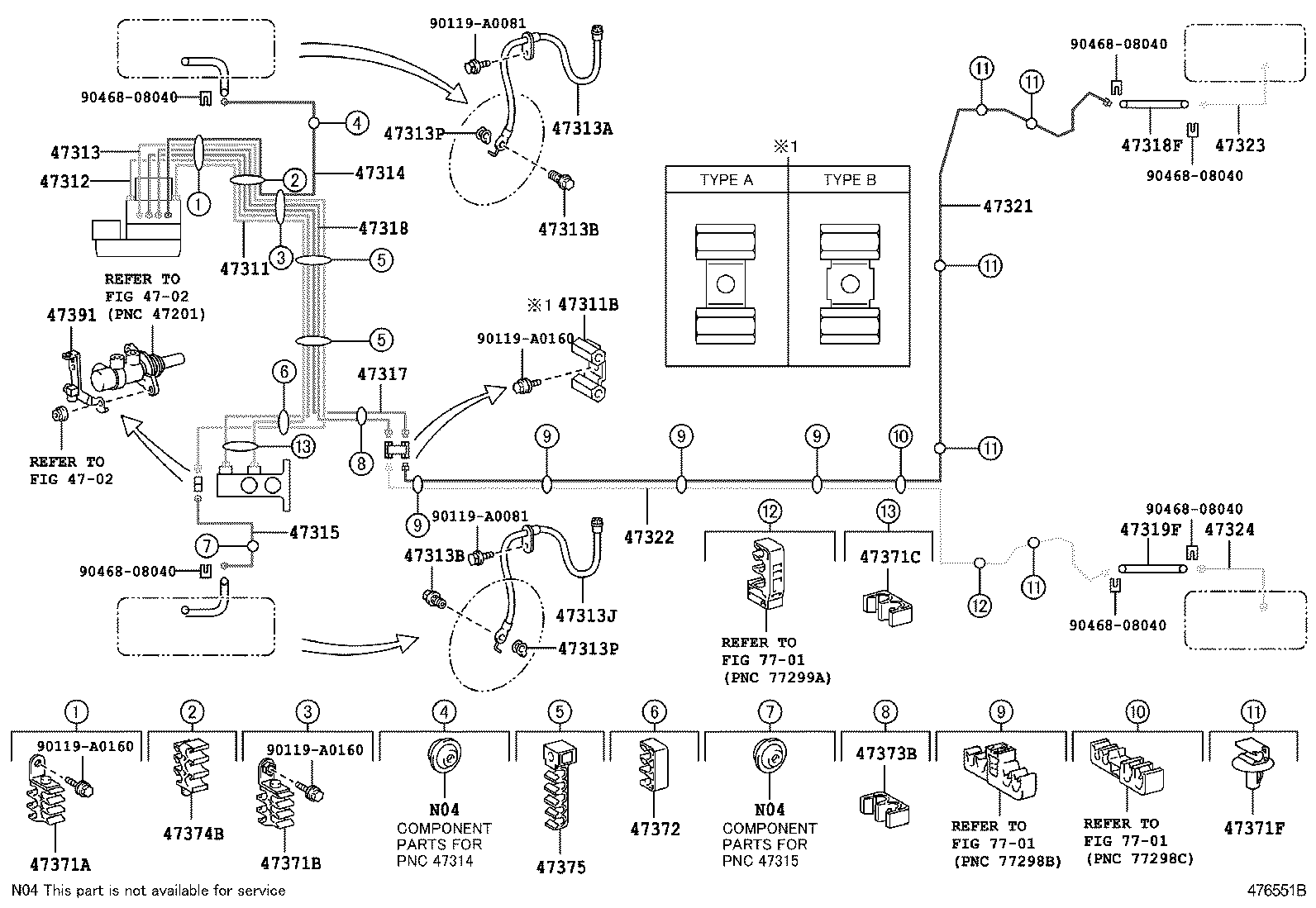

ILLUST NO. 1 OF 2(0801- )ZRE142..NAP
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02530 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47311-02540 |
ZRE142..NAP..CND |
1 | ||
| 47311-02700 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
AZE141,ZRE142..NAP TYPE A:REFER ILLUST. |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02600 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47312-02420 |
ZRE142..NAP..CND |
1 | ||
| 47312-02410 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02490 |
ZRE142..NAP..CND |
1 | ||
| 47313-02480 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47313-02650 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-A2025 |
AZE141,ZRE142..NAP |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AZE141,ZRE142..NAP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AZE141,ZRE142..NAP |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-A2026 |
AZE141,ZRE142..NAP |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AZE141,ZRE142..NAP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AZE141,ZRE142..NAP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-02490 |
ZRE142..NAP..CND |
1 | ||
| 47314-02480 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47314-02650 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02260 |
AZE141,ZRE142..NAP |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02410 |
ZRE142..NAP..CND |
1 | ||
| 47317-02570 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47317-02400 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02430 |
ZRE142..NAP..CND |
1 | ||
| 47318-02590 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47318-02420 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-A2029 |
ZRE142..NAP |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-A2029 |
ZRE142..NAP |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02230 |
AZE141,ZRE142..NAP |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02230 |
AZE141,ZRE142..NAP |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-02110 |
ZRE142..NAP |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-02110 |
ZRE142..NAP |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-04053 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47371-12240 |
ZRE142..NAP..CND |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-04050 |
ZRE142..NAP..CND |
1 | ||
| 90949-04054 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D17 |
AZE141,ZRE142..NAP |
5 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00857 |
ZRE142..NAP..CND |
1 | ||
| 90464-00914 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00904 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 90464-00904 |
ZRE142..NAP..CND |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D33 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 90949-01C51 |
ZRE142..NAP..CND |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D28 |
ZRE142..NAP..CND |
2 | ||
| 90949-01D73 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
2 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-12050 |
AZE141,ZRE142..NAP |
1 | ||
| Common parts | ||||
| 90119-A0081 | ||||
| 90119-A0160 | ||||
| 90468-08040 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

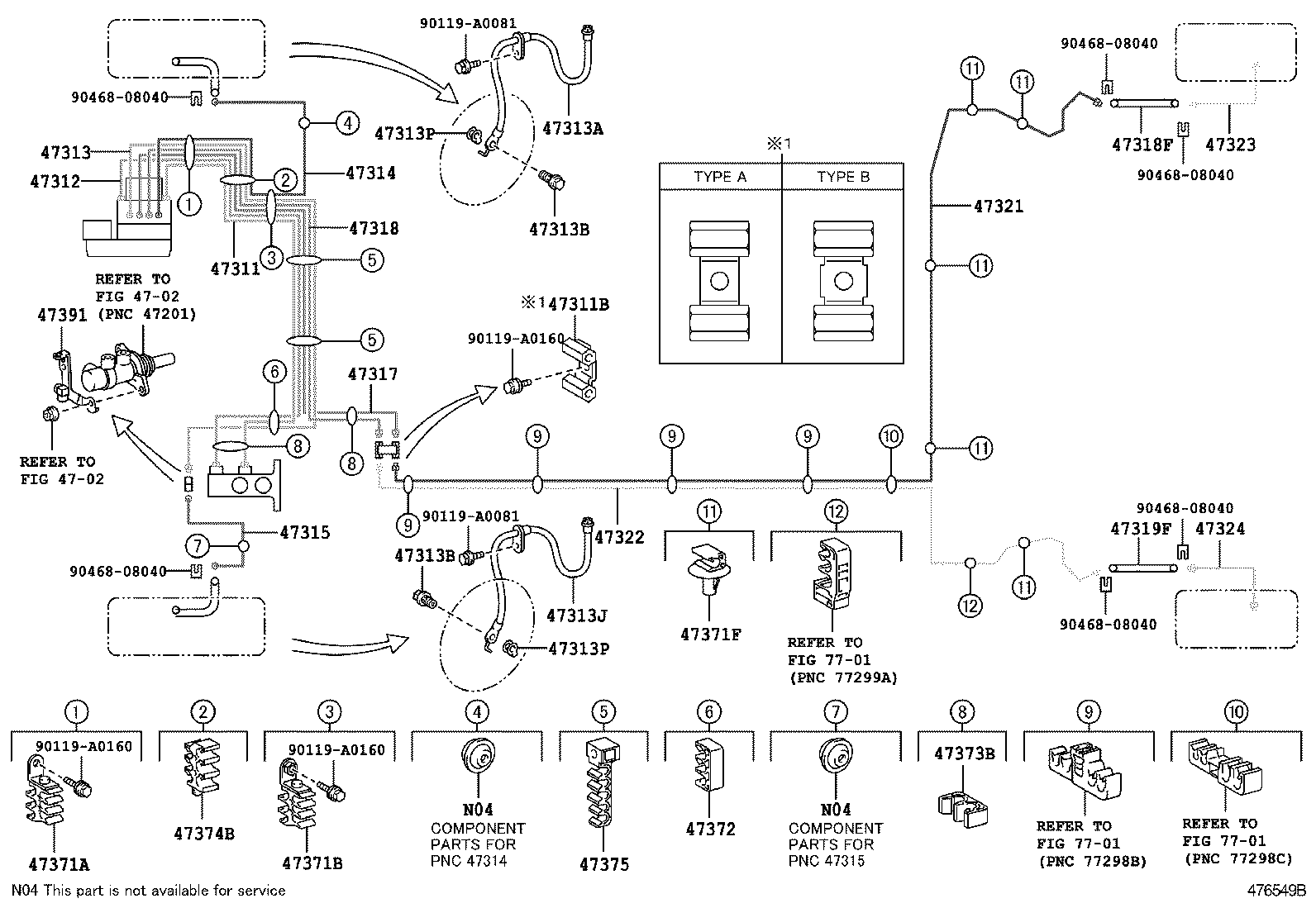

ILLUST NO. 1 OF 2(0801-0902)ZRE142..NAP
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02530 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47311-02540 |
ZRE142..NAP..CND |
1 | ||
| 47311-02700 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
AZE141,ZRE142..NAP TYPE A:REFER ILLUST. |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02600 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47312-02420 |
ZRE142..NAP..CND |
1 | ||
| 47312-02410 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02490 |
ZRE142..NAP..CND |
1 | ||
| 47313-02480 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47313-02650 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-A2025 |
AZE141,ZRE142..NAP |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AZE141,ZRE142..NAP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AZE141,ZRE142..NAP |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-A2026 |
AZE141,ZRE142..NAP |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AZE141,ZRE142..NAP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AZE141,ZRE142..NAP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-02490 |
ZRE142..NAP..CND |
1 | ||
| 47314-02480 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47314-02650 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02260 |
AZE141,ZRE142..NAP |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02410 |
ZRE142..NAP..CND |
1 | ||
| 47317-02570 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47317-02400 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02430 |
ZRE142..NAP..CND |
1 | ||
| 47318-02590 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47318-02420 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-A2029 |
ZRE142..NAP |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-A2029 |
ZRE142..NAP |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02230 |
AZE141,ZRE142..NAP |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02230 |
AZE141,ZRE142..NAP |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-02110 |
ZRE142..NAP |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-02110 |
ZRE142..NAP |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-04053 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47371-12240 |
ZRE142..NAP..CND |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-04050 |
ZRE142..NAP..CND |
1 | ||
| 90949-04054 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D17 |
AZE141,ZRE142..NAP |
5 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00857 |
ZRE142..NAP..CND |
1 | ||
| 90464-00914 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00904 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 90464-00904 |
ZRE142..NAP..CND |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D33 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 90949-01C51 |
ZRE142..NAP..CND |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D28 |
ZRE142..NAP..CND |
2 | ||
| 90949-01D73 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
2 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-12050 |
AZE141,ZRE142..NAP |
1 | ||
| Common parts | ||||
| 90119-A0081 | ||||
| 90119-A0160 | ||||
| 90468-08040 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
ILLUST NO. 1 OF 2(0902- )ZRE142..NAP
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02530 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47311-02540 |
ZRE142..NAP..CND |
1 | ||
| 47311-02700 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
AZE141,ZRE142..NAP TYPE A:REFER ILLUST. |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02600 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47312-02420 |
ZRE142..NAP..CND |
1 | ||
| 47312-02410 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02490 |
ZRE142..NAP..CND |
1 | ||
| 47313-02480 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47313-02650 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-A2025 |
AZE141,ZRE142..NAP |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AZE141,ZRE142..NAP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AZE141,ZRE142..NAP |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-A2026 |
AZE141,ZRE142..NAP |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AZE141,ZRE142..NAP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AZE141,ZRE142..NAP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-02490 |
ZRE142..NAP..CND |
1 | ||
| 47314-02480 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47314-02650 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02260 |
AZE141,ZRE142..NAP |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02410 |
ZRE142..NAP..CND |
1 | ||
| 47317-02570 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47317-02400 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02430 |
ZRE142..NAP..CND |
1 | ||
| 47318-02590 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47318-02420 |
ZRE142..NAP VSC-WITH (W/CUT OFF SW) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-A2029 |
ZRE142..NAP |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-A2029 |
ZRE142..NAP |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02230 |
AZE141,ZRE142..NAP |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02230 |
AZE141,ZRE142..NAP |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-02110 |
ZRE142..NAP |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-02110 |
ZRE142..NAP |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-04053 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47371-12240 |
ZRE142..NAP..CND |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-04050 |
ZRE142..NAP..CND |
1 | ||
| 90949-04054 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90464-00920 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D17 |
AZE141,ZRE142..NAP |
5 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00857 |
ZRE142..NAP..CND |
1 | ||
| 90464-00914 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00904 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 90464-00904 |
ZRE142..NAP..CND |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D33 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
1 | ||
| 90949-01C51 |
ZRE142..NAP..CND |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D28 |
ZRE142..NAP..CND |
2 | ||
| 90949-01D73 |
ZRE142..NAP..CND VSC-WITH (W/CUT OFF SW) V2P |
2 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-12050 |
AZE141,ZRE142..NAP |
1 | ||
| Common parts | ||||
| 90119-A0081 | ||||
| 90119-A0160 | ||||
| 90468-08040 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
