ZRE142L-DEMDKK (2008)

Toyota Corolla Nap

Production Jan 2008 - Dec 2010
Engine 2ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0801-1012)NAP..LE,S,XRS ; (0902-1012)NAP..STD ;(1012- )NAP..LE ; (1112- )NA

Click highlighted areas on diagram

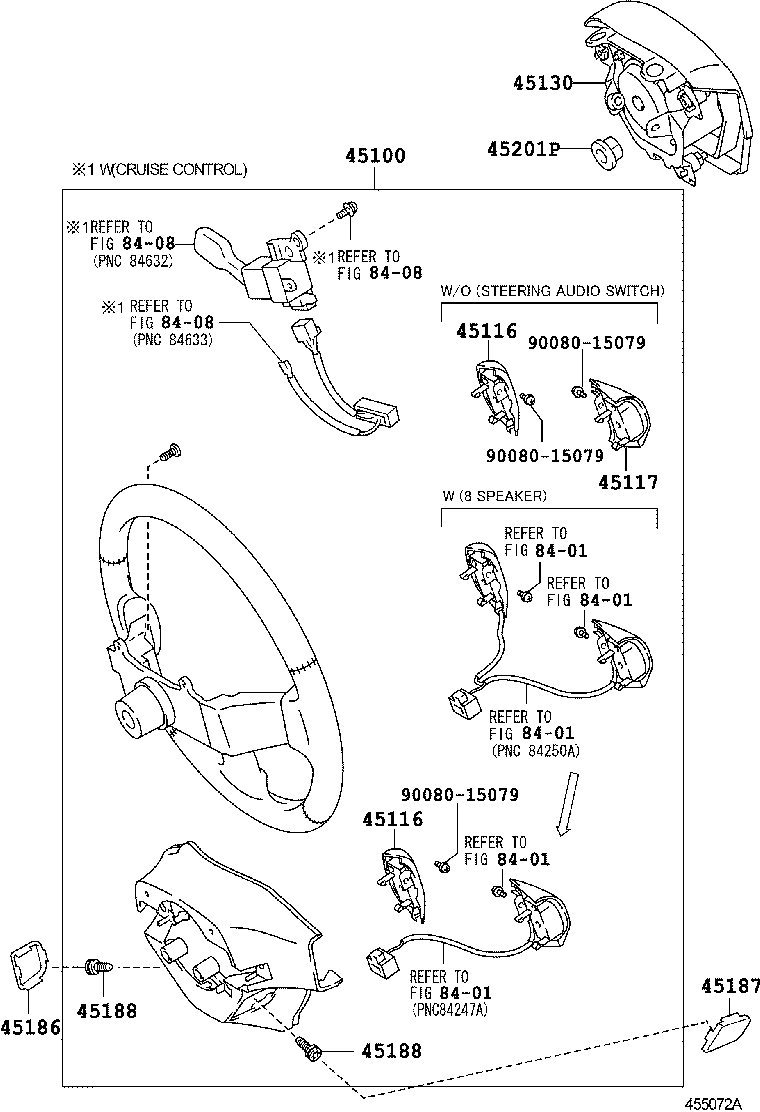

3-SPOKE,TYPE B

diagram 45100 45116 45116 45117 45130 45186 45187 45188 45188 45201P 8401 8401 8401 8401 8401 8408 8408 8408 9008015079 9008015079 9008015079
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-02E40B1

ZRE142..NAP..STD;ZRE142..NAP..(CE,LE)..CND

3-SPOKE,URETHANE,MD.GRAY,TRIM1#,TYPE A:REFER ILLUST.

 1
45100-02E40E0

ZRE142..NAP..STD;ZRE142..NAP..(CE,LE)..CND

3-SPOKE,URETHANE,ASH BROWN,TRIM4#,TYPE A:REFER ILLUST.

 1
45100-02E50E0

ZRE142..NAP..STD;ZRE142..NAP..(CE,LE)..CND

3-SPOKE,URETHANE,CRUISE CONTROL-WITH(ELECTRIC TYPE),ASH BROWN,TRIM4#,TYPE A:REFERILLUST.

 1
45100-02E50B1

ZRE142..NAP..STD;ZRE142..NAP..(CE,LE)..CND

3-SPOKE,URETHANE,CRUISE CONTROL-WITH(ELECTRIC TYPE),MD.GRAY,TRIM1#,TYPE A:REFER ILLUST.

 1
45130 - BUTTON ASSY, HORN
45130-02390E0

ZRE142..NAP..STD;ZRE142..NAP..(CE,LE)..CND

ASH BROWN,TRIM4#,TYPE A:REFER ILLUST.

 1
45130-02390B1

ZRE142..NAP..STD;ZRE142..NAP..(CE,LE)..CND

MD.GRAY,TRIM1#,TYPE A:REFER ILLUST.

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-02100E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#

 1
45186-02100B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#

 1
45186-02110B1

ZRE142..NAP..(CE,LE,STD)

CRUISE CONTROL-WITH(ELECTRIC TYPE),MD.GRAY,TRIM1#

 1
45186-02110E0

ZRE142..NAP..(CE,LE,STD)

CRUISE CONTROL-WITH(ELECTRIC TYPE),ASH BROWN,TRIM4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-02040E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#

 1
45187-02040B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-07010

AZE141,ZRE142..NAP

L=18.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-07010

AZE141,ZRE142..NAP

L=18.5

 2
45201P - NUT, STEERING WHEEL SET
90080-17234

AZE141,ZRE142..NAP

 1
Common parts
90080-15079
Linked diagrams
8401
8408

(0801-0902)NAP..LE..USA ; (0801-1012)NAP..LE..CND ; (0801- )NAP..CE,STD

Click highlighted areas on diagram

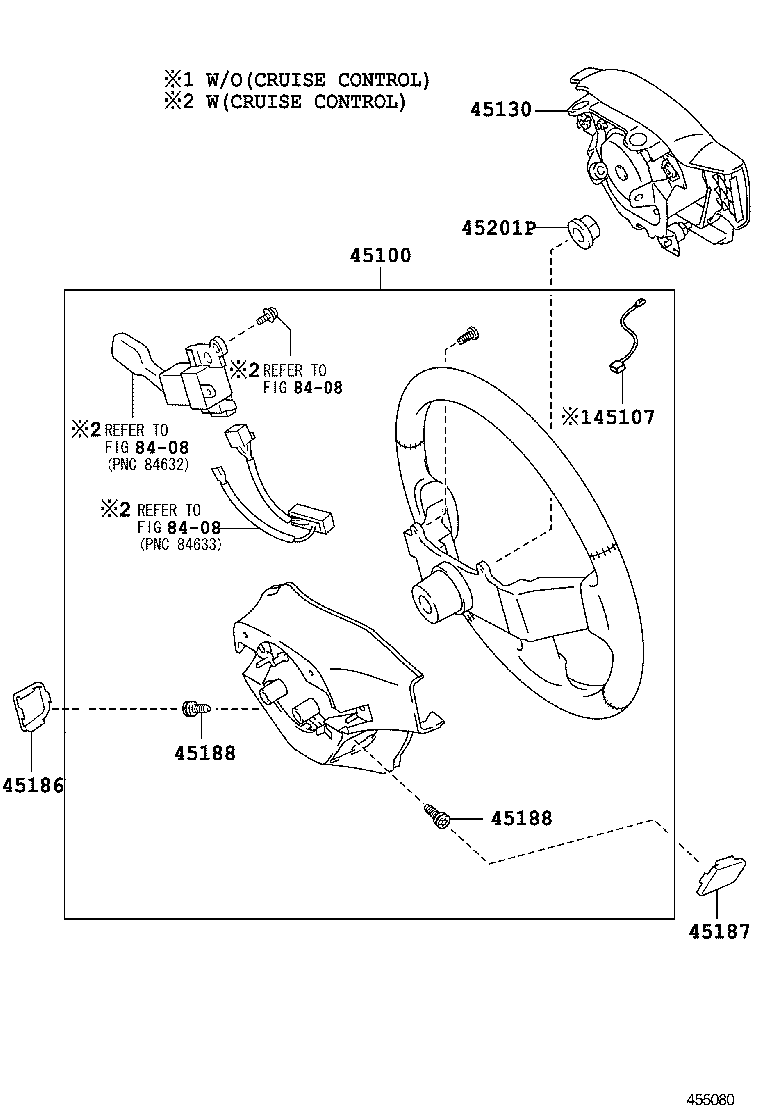

3-SPOKE,TYPE A

diagram 45100 45107 45130 45186 45187 45188 45188 45201P 8408 8408 8408
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-02E40B1

ZRE142..NAP..STD;ZRE142..NAP..(CE,LE)..CND

3-SPOKE,URETHANE,MD.GRAY,TRIM1#,TYPE A:REFER ILLUST.

 1
45100-02E40E0

ZRE142..NAP..STD;ZRE142..NAP..(CE,LE)..CND

3-SPOKE,URETHANE,ASH BROWN,TRIM4#,TYPE A:REFER ILLUST.

 1
45100-02E50E0

ZRE142..NAP..STD;ZRE142..NAP..(CE,LE)..CND

3-SPOKE,URETHANE,CRUISE CONTROL-WITH(ELECTRIC TYPE),ASH BROWN,TRIM4#,TYPE A:REFERILLUST.

 1
45100-02E50B1

ZRE142..NAP..STD;ZRE142..NAP..(CE,LE)..CND

3-SPOKE,URETHANE,CRUISE CONTROL-WITH(ELECTRIC TYPE),MD.GRAY,TRIM1#,TYPE A:REFER ILLUST.

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-0C010

ZRE142..NAP..STD;ZRE142..NAP..(CE,LE)..CND

 1
45130 - BUTTON ASSY, HORN
45130-02390E0

ZRE142..NAP..STD;ZRE142..NAP..(CE,LE)..CND

ASH BROWN,TRIM4#,TYPE A:REFER ILLUST.

 1
45130-02390B1

ZRE142..NAP..STD;ZRE142..NAP..(CE,LE)..CND

MD.GRAY,TRIM1#,TYPE A:REFER ILLUST.

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-02100E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#

 1
45186-02100B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#

 1
45186-02110B1

ZRE142..NAP..(CE,LE,STD)

CRUISE CONTROL-WITH(ELECTRIC TYPE),MD.GRAY,TRIM1#

 1
45186-02110E0

ZRE142..NAP..(CE,LE,STD)

CRUISE CONTROL-WITH(ELECTRIC TYPE),ASH BROWN,TRIM4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-02040E0

ZRE142..NAP..(CE,LE,STD)

ASH BROWN,TRIM4#

 1
45187-02040B1

ZRE142..NAP..(CE,LE,STD)

MD.GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-07010

AZE141,ZRE142..NAP

L=18.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-07010

AZE141,ZRE142..NAP

L=18.5

 2
45201P - NUT, STEERING WHEEL SET
90080-17234

AZE141,ZRE142..NAP

 1
Linked diagrams
8408
