ZRE142L-DEMDKK (2008)

Toyota Corolla Nap

Production Jan 2008 - Dec 2010
Engine 2ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )ZRE142..NAP..5F

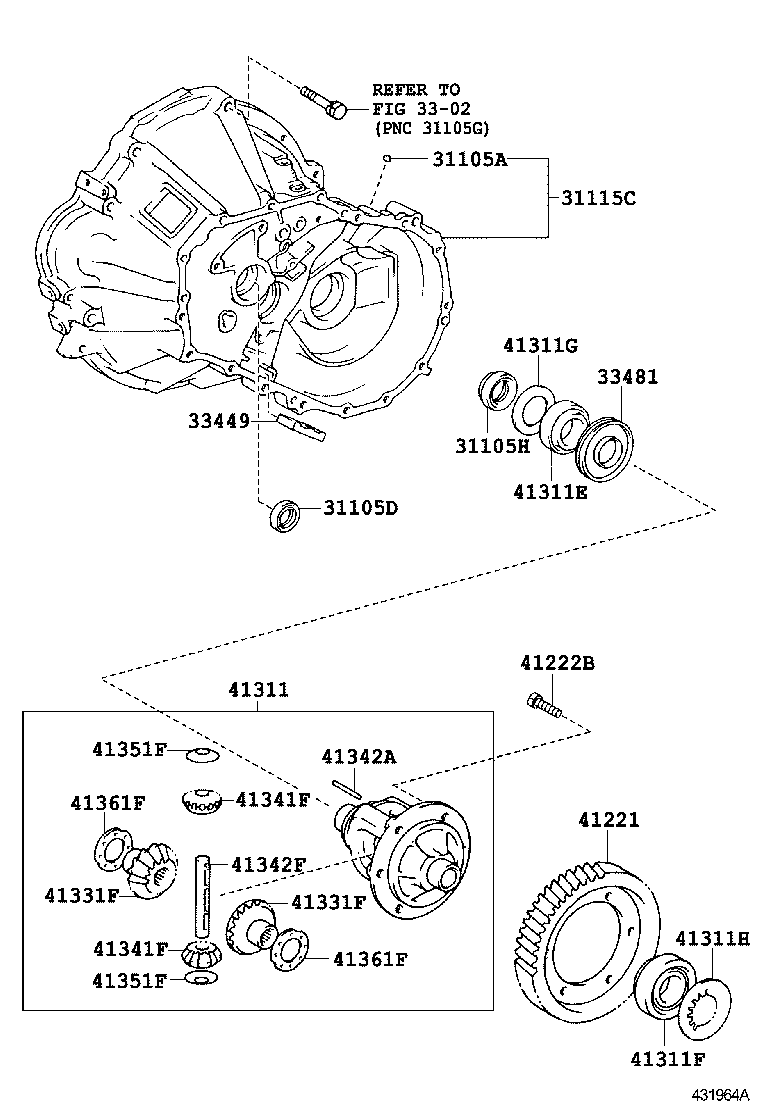

Click highlighted areas on diagram

C59

diagram 31105A 31105D 31105H 31115C 3302 33449 33481 41221 41222B 41311 41311E 41311F 41311G 41311H 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

ZRE142..NAP..5F

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25028

ZRE142..NAP..5F

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-35065

ZRE142..NAP..5F

 1
90311-35057

ZRE142..NAP..5F

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31105-12220

ZRE142..NAP..5F

 1
33449 - MAGNET, TRANSMISSION
33449-12020

ZRE142..NAP..5F

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-20160

ZRE142..NAP..5F

N=35

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12480

ZRE142..NAP..5F

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-11040

ZRE142..NAP..5F

 8
41311 - CASE, FRONT DIFFERENTIAL
41301-32061

ZRE142..NAP..5F

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40129

ZRE142..NAP..5F

 1
90366-40097

ZRE142..NAP..5F

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-40094

ZRE142..NAP..5F

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

ZRE142..NAP..5F

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41018

ZRE142..NAP..5F

T=2.30,MARK EE

 1
90564-41014

ZRE142..NAP..5F

T=2.10,MARK AA

 1
90564-41016

ZRE142..NAP..5F

T=2.20,MARK CC

 1
90564-41020

ZRE142..NAP..5F

T=2.40,MARK GG

 1
90564-41015

ZRE142..NAP..5F

T=2.15,MARK BB

 1
90564-41026

ZRE142..NAP..5F

T=2.70,MARK NN

 1
90564-41023

ZRE142..NAP..5F

T=2.55,MARK KK

 1
90564-41024

ZRE142..NAP..5F

T=2.60,MARK LL

 1
90564-41022

ZRE142..NAP..5F

T=2.50,MARK JJ

 1
90564-41032

ZRE142..NAP..5F

T=3.00,MARK UU

 1
90564-41030

ZRE142..NAP..5F

T=2.90,MARK SS

 1
90564-41019

ZRE142..NAP..5F

T=2.35,MARK FF

 1
90564-41028

ZRE142..NAP..5F

T=2.80,MARK QQ

 1
90564-41025

ZRE142..NAP..5F

T=2.65,MARK MM

 1
90564-41029

ZRE142..NAP..5F

T=2.85,MARK RR

 1
90564-41021

ZRE142..NAP..5F

T=2.45,MARK HH

 1
90564-41027

ZRE142..NAP..5F

T=2.75,MARK PP

 1
90564-41017

ZRE142..NAP..5F

T=2.25,MARK DD

 1
90564-41031

ZRE142..NAP..5F

T=2.95,MARK TT

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

ZRE142..NAP..5F

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

ZRE142..NAP..5F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

ZRE142..NAP..5F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

ZRE142..NAP..5F

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AZE141,ZRE142..NAP

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020

ZRE142..NAP..5F

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ZRE142..NAP

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ZRE142..NAP

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22150

ZRE142..NAP..5F

T=1.05,MARK 15

 2
41361-22020

ZRE142..NAP..5F

T=1.00,MARK 02

 2
41361-22040

ZRE142..NAP..5F

T=1.20,MARK 04

 2
41361-22160

ZRE142..NAP..5F

T=1.15,MARK 16

 2
41361-22030

ZRE142..NAP..5F

T=1.10,MARK 03

 2
41361-22140

ZRE142..NAP..5F

T=0.95,MARK 14

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22150

ZRE142..NAP..5F

T=1.05,MARK 15

 2
41361-22020

ZRE142..NAP..5F

T=1.00,MARK 02

 2
41361-22040

ZRE142..NAP..5F

T=1.20,MARK 04

 2
41361-22160

ZRE142..NAP..5F

T=1.15,MARK 16

 2
41361-22030

ZRE142..NAP..5F

T=1.10,MARK 03

 2
41361-22140

ZRE142..NAP..5F

T=0.95,MARK 14

 2
