ZRE142L-DEMDKK (2008)

Toyota Corolla Nap

Production Jan 2008 - Dec 2010
Engine 2ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )ZRE142..NAP..5F

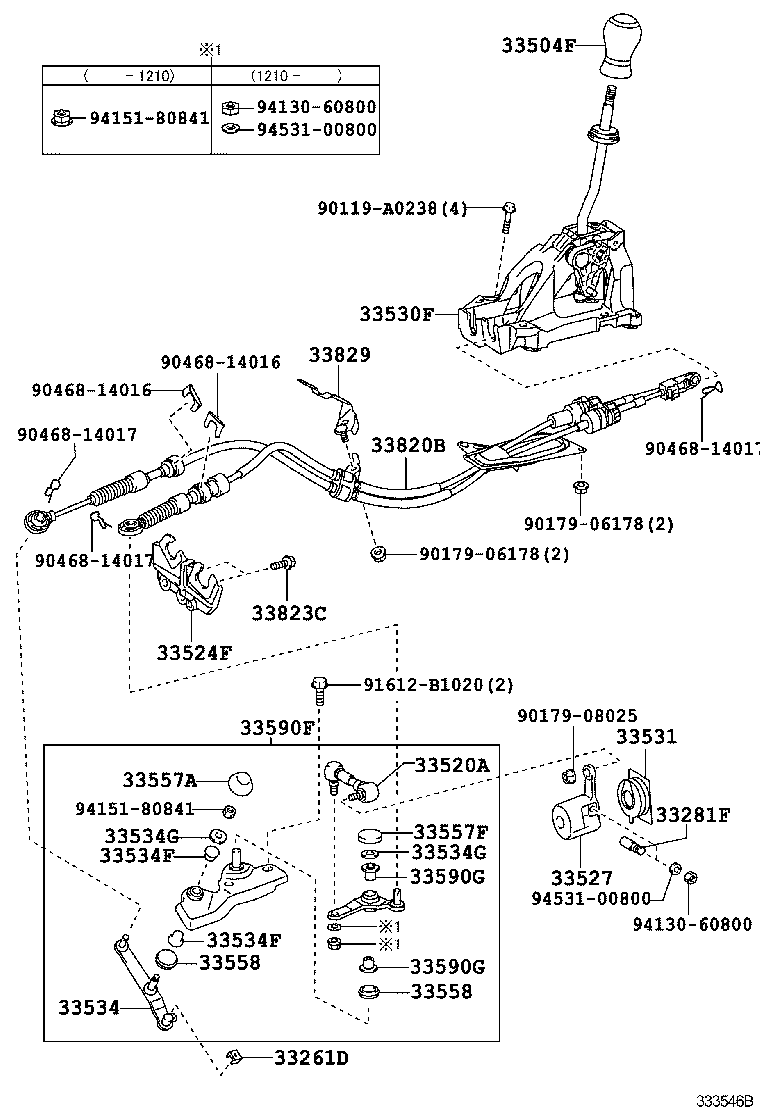

Click highlighted areas on diagram

diagram 33261D 33281F 33504F 33520A 33524F 33527 33530F 33531 33534 33534F 33534F 33534G 33534G 33557A 33557F 33558 33558 33590F 33590G 33590G 33820B 33823C 33829 90119A0238 9017906178 9017906178 9017908025 9046814016 9046814016 9046814017 9046814017 9046814017 91612B1020 9413060800 9413060800 9415180841 9415180841 9453100800 9453100800
Part # Description Qty Price
33261D - BUSH (FOR SHIFT & SELECT LEVER)
33557-33010

ZRE142..NAP..5F

 1
33281F - PIN, LEVER LOCK (FOR FLOOR SHIFT)
33281-16020

ZRE142..NAP..5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12380B0

ZRE142..NAP..5F

DK.GRAY,TRIM1#

 1
33504-12380E0

ZRE142..NAP..5F..(CE,STD)

ASH BROWN,TRIM4#

 1
33520A - SHAFT ASSY, FLOOR SHIFT CONTROL
33520-52050

ZRE142..NAP..5F

 1
33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT
33524-52050

ZRE142..NAP..5F

 1
33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)
33527-52011

ZRE142..NAP..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-12A40

AZE141,ZRE142..NAP..5F

 1
33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER)
33531-17010

ZRE142..NAP..5F

 1
33534 - BELLCRANK, SELECTING
33534-12120

ZRE142..NAP..5F

 1
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022

AZE141,ZRE142..NAP..5F

 2
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022

AZE141,ZRE142..NAP..5F

 2
33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
90201-08028

ZRE142..NAP..5F

 2
33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
90201-08028

ZRE142..NAP..5F

 2
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-32010

AZE141,ZRE142..NAP..5F

 1
33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33557-20010

ZRE142..NAP..5F

 1
33558 - COVER, SELECTING BELLCRANK DUST, NO.2
33558-10030

ZRE142..NAP..5F

 2
33558 - COVER, SELECTING BELLCRANK DUST, NO.2
33558-10030

ZRE142..NAP..5F

 2
33590F - CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)
33590-12070

ZRE142..NAP..5F

 1
33590G - BUSH (FOR SELECTING BELL CRANK)
33546-20020

ZRE142..NAP..5F

 2
33590G - BUSH (FOR SELECTING BELL CRANK)
33546-20020

ZRE142..NAP..5F

 2
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-02581

ZRE142..NAP..5F

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91612-61030

ZRE142..NAP..5F

 2
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-02070

AZE141,ZRE142..NAP..5F

 1
Common parts
90119-A0238
90179-06178
90179-08025
90468-14016
90468-14017
91612-B1020
94130-60800
94151-80841
94531-00800
