ZRE142L-DEMDKK (2008)

Toyota Corolla Nap

Production Jan 2008 - Dec 2010
Engine 2ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

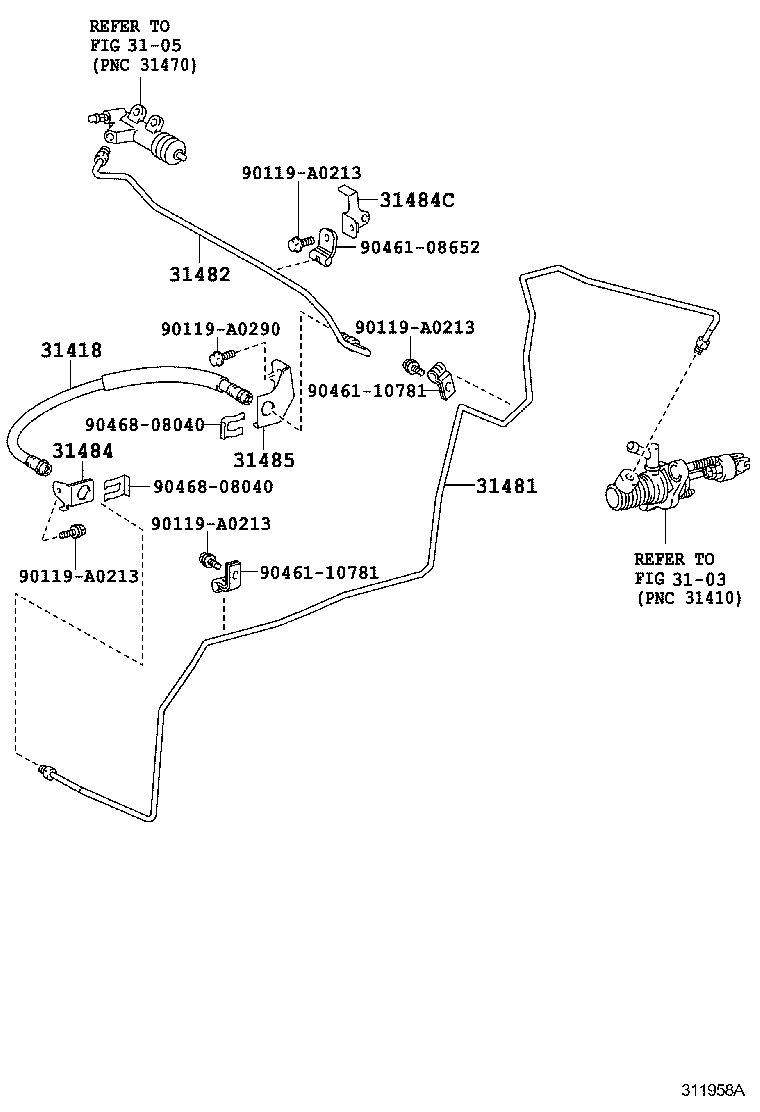

ILLUST NO. 2 OF 2(0801- )ZRE142..NAP..5F

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482 31484 31484C 31485 90119A0213 90119A0213 90119A0213 90119A0213 90119A0290 9046108652 9046110781 9046110781 9046808040 9046808040
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-A2021

ZRE142..NAP..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-02280

AZE141,ZRE142..NAP..5F

 1
31481-02480

AZE141,ZRE142..NAP..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-02270

ZRE142..NAP..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-02130

AZE141,ZRE142..NAP..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-52150

ZRE142..NAP..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-02110

ZRE142..NAP..5F

 1
Common parts
90119-A0213
90119-A0290
90461-08652
90461-10781
90468-08040
Linked diagrams
3103
3105

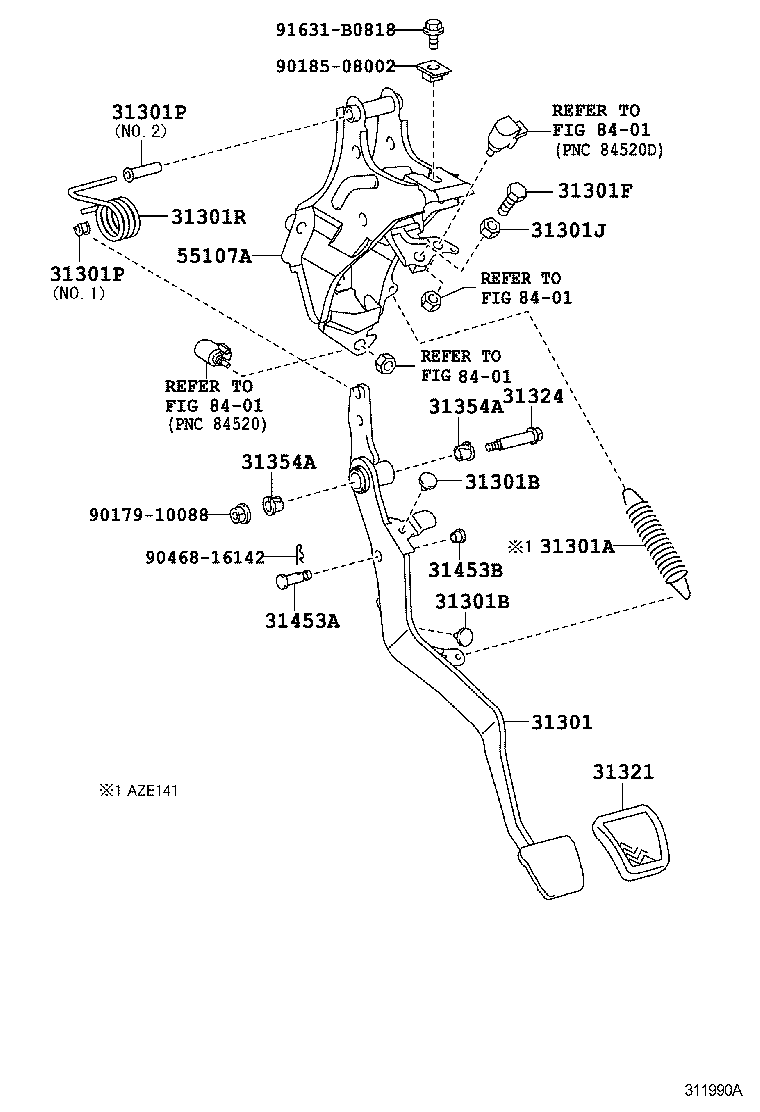

ILLUST NO. 1 OF 2(0801- )NAP..5F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301F 31301J 31301P 31301P 31301R 31321 31324 31354A 31354A 31453A 31453B 55107A 8401 8401 8401 8401 9017910088 9018508002 9046816142 91631B0818
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-02250

AZE141,ZRE142..NAP..5F

 1
31301-02420

AZE141,ZRE142..NAP..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AZE141,ZRE142..NAP..5F

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AZE141,ZRE142..NAP..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AZE141,ZRE142..NAP..5F

 1
90101-10055

AZE141,ZRE142..NAP..5F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94120-41000

AZE141,ZRE142..NAP..5F

 1
46441-12020

AZE141,ZRE142..NAP..5F

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-05019

AZE141,ZRE142..NAP..5F

NO.2

 1
90386-05017

AZE141,ZRE142..NAP..5F

NO.1

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-05019

AZE141,ZRE142..NAP..5F

NO.2

 1
90386-05017

AZE141,ZRE142..NAP..5F

NO.1

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03138

ZRE142..NAP..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-42010

AZE141,ZRE142..NAP..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90109-10174

AZE141,ZRE142..NAP..5F

 1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-13015

AZE141,ZRE142..NAP..5F

 2
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-13015

AZE141,ZRE142..NAP..5F

 2
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08256

AZE141,ZRE142..NAP..5F

L=36.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AZE141,ZRE142..NAP..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-02340

AZE141,ZRE142..NAP..5F

 1
55107-02200

AZE141,ZRE142..NAP..5F

 1
Common parts
90179-10088
90185-08002
90468-16142
91631-B0818
Linked diagrams
8401
