ZRE142L-DEMDKK (2008)
Toyota Corolla Nap
Production
Jan 2008
-
Dec 2010
Engine
2ZRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

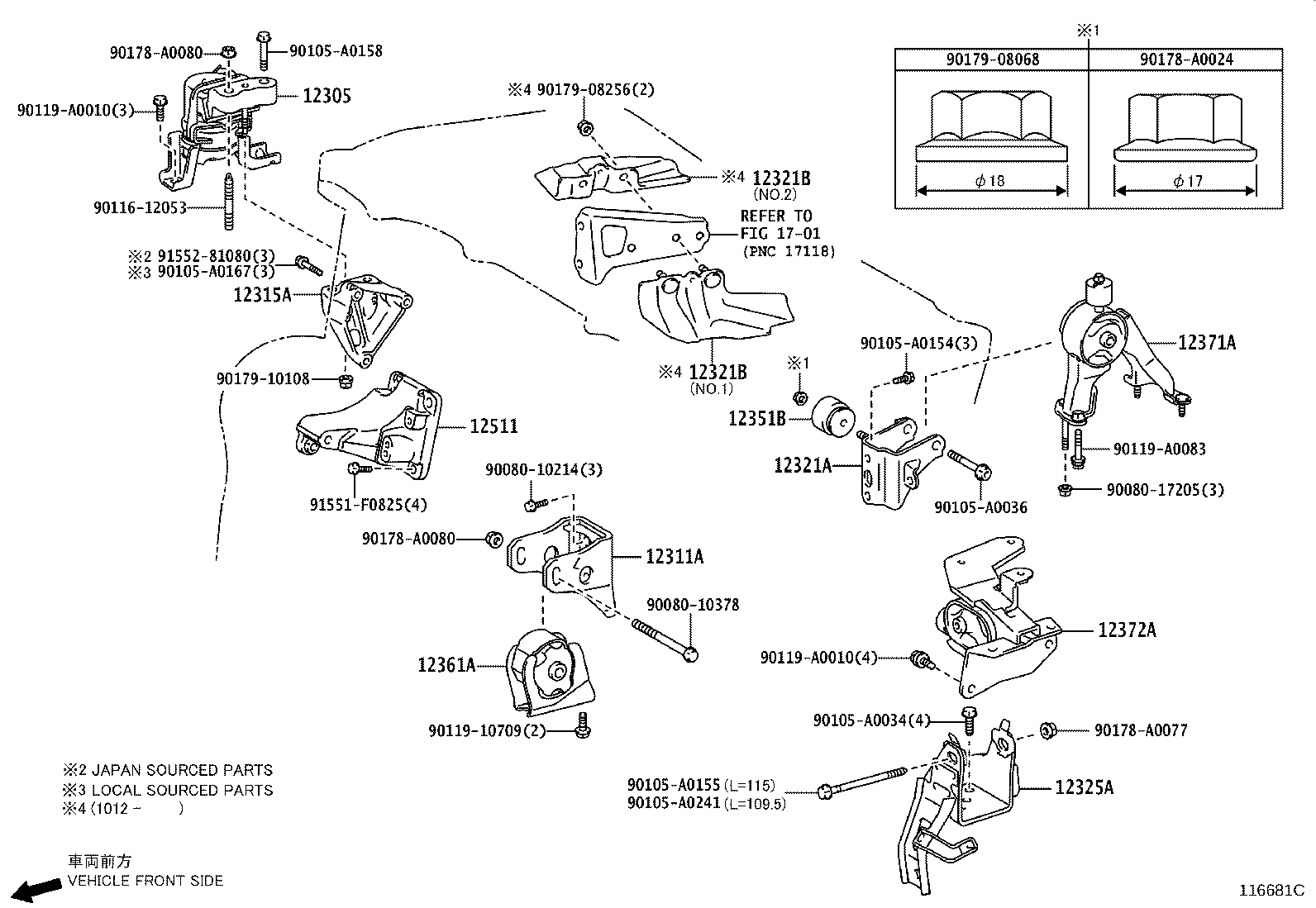

(0801- )2ZRFE..NAP..5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0T050 |
2ZRFE..ZRE142..NAP |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0T060 |
2ZRFE..ZRE142..NAP..5F |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37030 |
2ZRFE..ZRE142..NAP |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0T060 |
2ZRFE..ZRE142..NAP..5F |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T070 |
2ZRFE..ZRE142..NAP..5F |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-11130 |
2ZRFE..ZRE142..NAP..5F |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0T050 |
2ZRFE..ZRE142..NAP..5F |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0T030 |
2ZRFE..ZRE142..NAP..5F |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T050 |
2ZRFE..ZRE142..NAP..5F |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-37010 |
2ZRFE..ZRE142..NAP |
1 | ||
| Common parts | ||||
| 90080-10214 | ||||
| 90080-10378 | ||||
| 90080-17205 | ||||
| 90105-A0034 | ||||
| 90105-A0036 | ||||
| 90105-A0154 | ||||
| 90105-A0155 | ||||
| 90105-A0158 | ||||
| 90105-A0167 | ||||
| 90105-A0241 | ||||
| 90116-12053 | ||||
| 90119-10709 | ||||
| 90119-A0010 | ||||
| 90119-A0083 | ||||
| 90178-A0024 | ||||
| 90178-A0077 | ||||
| 90178-A0080 | ||||
| 90179-08068 | ||||
| 90179-08256 | ||||
| 90179-10108 | ||||
| 91551-F0825 | ||||
| 91552-81080 | ||||
| Linked diagrams | ||||
| 1701 | ||||
