AZE141L-DEMSKK (2008)
Toyota Corolla Nap
Production
Jan 2008
-
Dec 2010
Engine
2AZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0801- )AZE141..NAP

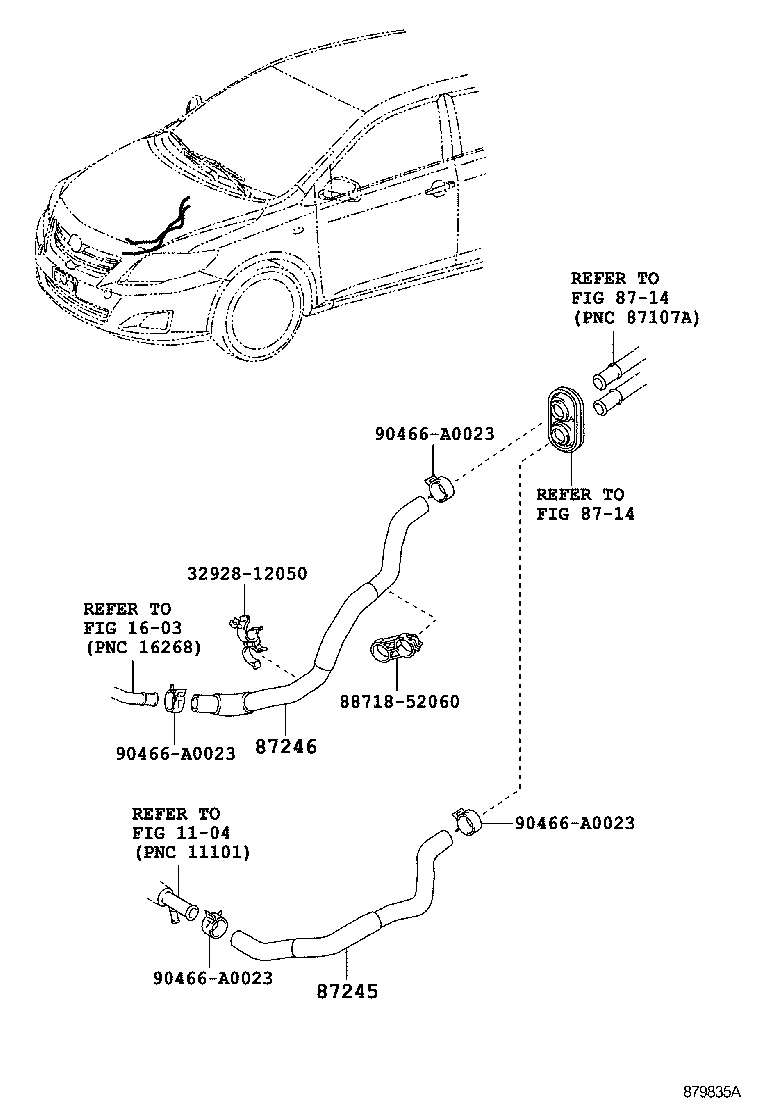

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-02C80 |
AZE141..NAP |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-02C90 |
AZE141..NAP |
1 | ||
| Common parts | ||||
| 32928-12050 | ||||
| 88718-52060 | ||||
| 90466-A0023 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
