AZE141L-DEASKK (2008)
Toyota Corolla Nap
Production
Jan 2008
-
Dec 2010
Engine
2AZFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0801- )AZE141..NAP

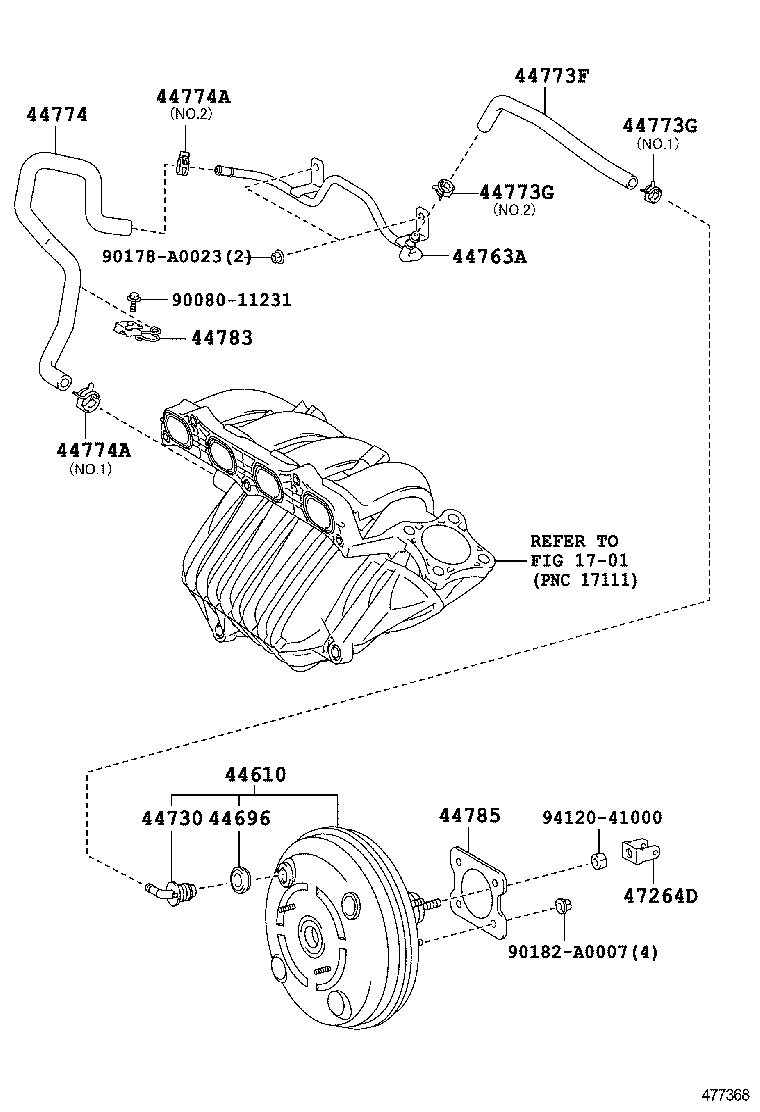

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-02440 |
AZE141..NAP |
1 | ||
| 44610-02441 |
AZE141..NAP |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90080-48071 |
AZE141,ZRE142..NAP |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20170 |
AZE141,ZRE142..NAP |
1 | ||
| 44730-12070 |
AZE141,ZRE142..NAP |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-02080 |
AZE141..NAP |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-02060 |
AZE141..NAP |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
AZE141,ZRE142..NAP NO.1 |
1 | ||
| 96133-41500 |
AZE141,ZRE142..NAP NO.2 |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
AZE141,ZRE142..NAP NO.1 |
1 | ||
| 96133-41500 |
AZE141,ZRE142..NAP NO.2 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-02080 |
AZE141..NAP |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
AZE141..NAP NO.2 |
1 | ||
| 96136-51801 |
AZE141..NAP NO.1 |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
AZE141..NAP NO.2 |
1 | ||
| 96136-51801 |
AZE141..NAP NO.1 |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-44010 |
AZE141..NAP |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-02060 |
AZE141,ZRE142..NAP |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-63020 |
AZE141,ZRE142..NAP |
1 | ||
| Common parts | ||||
| 90080-11231 | ||||
| 90178-A0023 | ||||
| 90182-A0007 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 1701 | ||||
