AZE141L-DEASKK (2008)

Toyota Corolla Nap

Production Jan 2008 - Dec 2010
Engine 2AZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )2AZFE..NAP

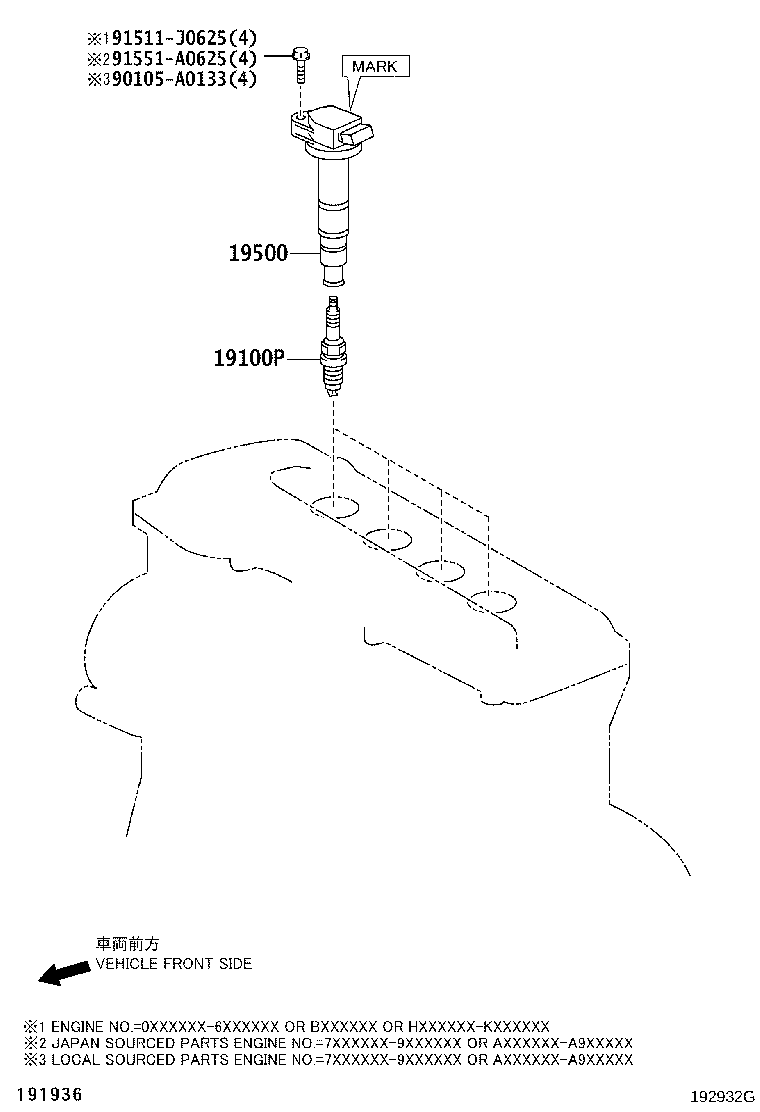

Click highlighted areas on diagram

diagram 19100P 19500 90105A0133 91511J0625 91551A0625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01237

2AZFE..AZE141..NAP

SK20R11,*195

 4
90080-91180

2AZFE..AZE141..NAP

SK20R11,*108

 4
19500 - COIL ASSY, IGNITION
90919-02244

2AZFE..AZE141..NAP

*195

 4
90919-02266

2AZFE..AZE141..NAP

*195,MARK90919-02266

 4
90919-02244

2AZFE..AZE141..NAP

*195,MARK90919-02244

 4
90919-A2001

2AZFE..AZE141..NAP

*108

 4
Common parts
90105-A0133
91511-J0625
91551-A0625
