AZE141L-DEASKA (2008)

Toyota Corolla Nap

Production Jan 2008 - Dec 2010
Engine 2AZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )AZE141..NAP

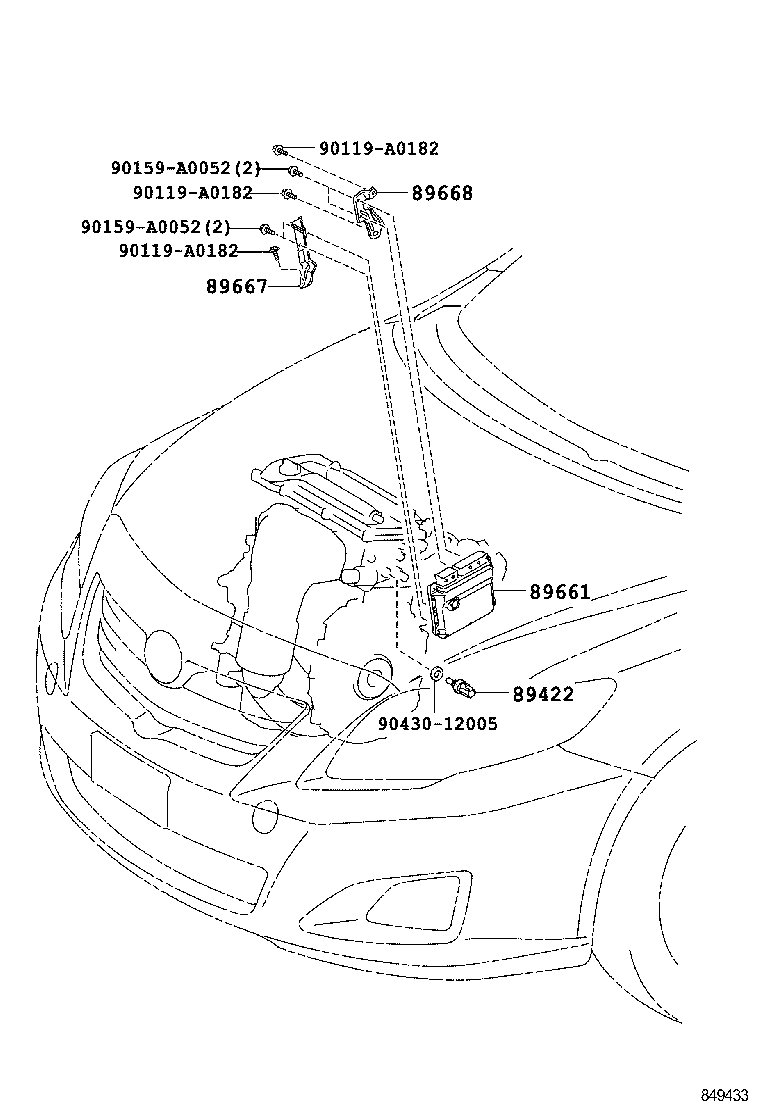

Click highlighted areas on diagram

diagram 89422 89661 89667 89668 90119A0182 90119A0182 90119A0182 90159A0052 90159A0052 9043012005
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

AZE141,ZRE142..NAP

(J)

 1
89422-06010

AZE141,ZRE142..NAP

(L)

 1
89661 - COMPUTER, ENGINE CONTROL
89661-02M40

AZE141..NAP..5FC..USA

MEXICO SPEC

 1
89661-02L10

AZE141..NAP..5F

 1
89661-02M30

AZE141..NAP..5FC

 1
89661-02U90

AZE141..NAP..5FC

 1
89661-02L50

AZE141..NAP..5F..USA

MEXICO SPEC

 1
89661-02M41

AZE141..NAP..5FC..USA

MEXICO SPEC

 1
89661-02V00

AZE141..NAP..5F

 1
89661-02M31

AZE141..NAP..5FC

 1
89661-02V10

AZE141..NAP..5FC..USA

MEXICO SPEC

 1
89661-02V20

AZE141..NAP..5F..USA

MEXICO SPEC

 1
89661-02V11

AZE141..NAP..5FC..USA

MEXICO SPEC

 1
89661-02U91

AZE141..NAP..5FC

 1
89661-02V01

AZE141..NAP..5F

 1
89661-02U92

AZE141..NAP..5FC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-02230

AZE141..NAP

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-02200

AZE141..NAP

 1
Common parts
90119-A0182
90159-A0052
90430-12005
