ZZE110L-DEPDKA (2000)
Toyota Corolla Nap/Sed

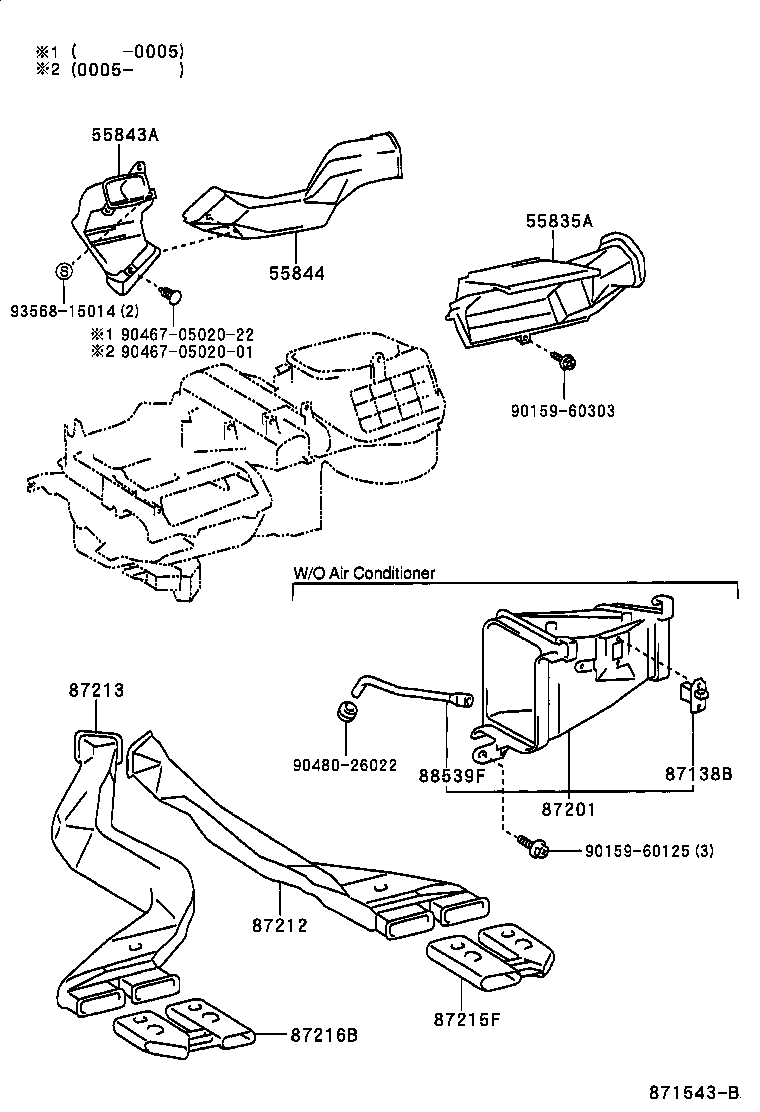

ILLUST NO. 2 OF 2(9708- )
DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55870-01010 |
ZZE110 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-02040 |
ZZE110 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-02040 |
ZZE110..CND,USA |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-02010 |
ZZE110..CND,USA |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-02060 |
ZZE110..USA |
1 | ||
| 87201-02070 |
ZZE110..USA COLD SPEC |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-02020 |
ZZE110..CND,USA |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-02020 |
ZZE110..CND,USA |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-02030 |
ZZE110..CE1,LE1,VE;ZZE110..(CE2,LE2,S)..(CND,USA) |
1 | ||
| 87216B - DUCT, AIR, REAR NO.4 | ||||
| 87216-02020 |
ZZE110..CND,USA |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-02010 |
ZZE110..CND,USA |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90467-0502001 | ||||
| 90467-0502022 | ||||
| 90480-26022 | ||||
| 93568-15014 | ||||

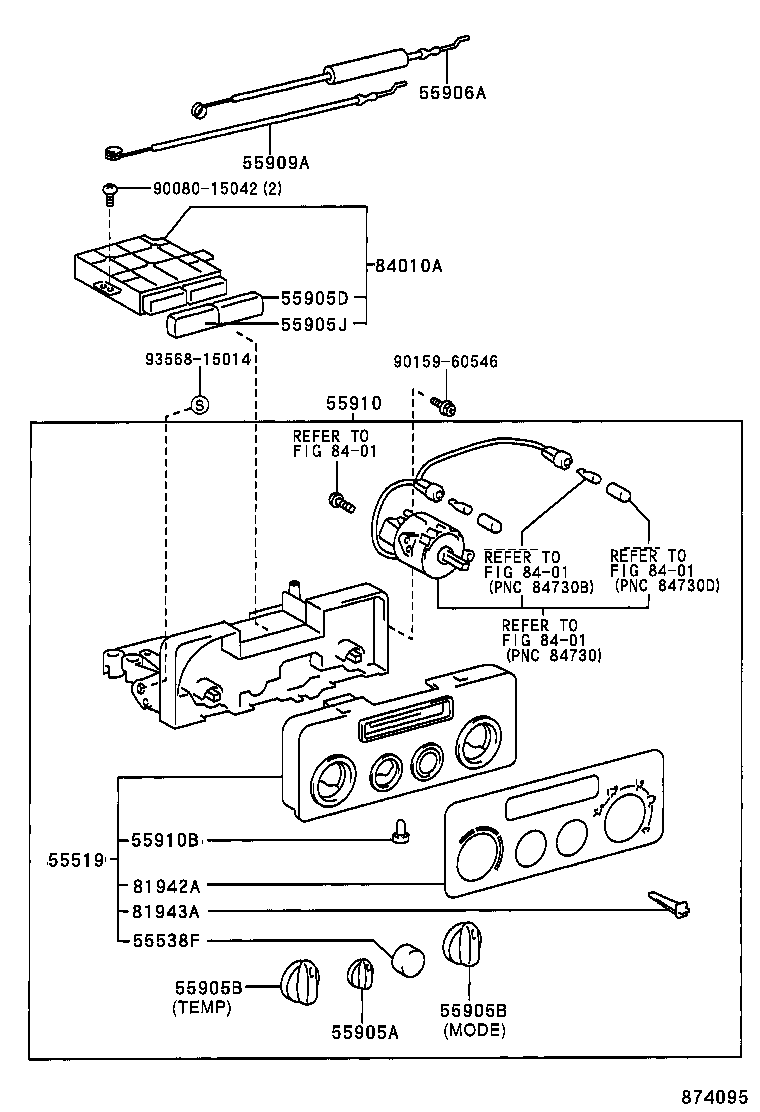

ILLUST NO. 1 OF 2(0005- )
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-02020C0 |
ZZE110..S W(AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 55519-02010B0 |
ZZE110 DK. CHARCOAL,TRIM1# |
1 | ||
| 55519-02020E0 |
ZZE110..(CE2,LE2)..(CND,USA) W(AIR CONDITIONER),DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55519-02030C0 |
ZZE110..S..(CND,USA) BLACK,TRIM2# |
1 | ||
| 55519-02030B0 |
ZZE110..(CE2,LE2)..(CND,USA) DK.CHARCOAL,TRIM1# |
1 | ||
| 55519-02020B0 |
ZZE110..CE2,LE2 W(AIR CONDITIONER),DK.CHARCOAL,TRIM1# |
1 | ||
| 55519-02030E0 |
ZZE110..(CE2,LE2)..(CND,USA) DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55538F - COVER, COOLER SWITCH HOLE | ||||
| 55538-08010E0 |
ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA) W(AIR CONDITIONER),DK. NEUTRAL BONE,TRIM4# |
1 | ||
| 55538-08010B0 |
ZZE110..CE1,CE2,LE1,LE2,VE W(AIR CONDITIONER),DK. CHARCOAL,TRIM1# |
1 | ||
| 55538-08020E0 |
ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA) DK. NEUTRAL BONE,TRIM4# |
1 | ||
| 55538-08020B0 |
ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA) DK. CHARCOAL,TRIM1# |
1 | ||
| 55538-08020C0 |
ZZE110..S..(CND,USA) BLACK,TRIM2# |
1 | ||
| 55538-08010C0 |
ZZE110..S W(AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-08010E0 |
ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA) DK. NEUTRAL BONE,TRIM4# |
1 | ||
| 55905-08010C0 |
ZZE110..S BLACK,TRIM2# |
1 | ||
| 55905-08010B0 |
ZZE110..CE1,CE2,LE1,LE2,VE DK. CHARCOAL,TRIM1# |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-02040E0 |
ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA) DK.NEUTRAL BONE,TRIM4# |
2 | ||
| 55905-02040B0 |
ZZE110..CE1,CE2,LE1,LE2,VE DK.CHARCOAL,TRIM1# |
2 | ||
| 55905-02040C0 |
ZZE110..S BLACK,TRIM2# |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-02040E0 |
ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA) DK.NEUTRAL BONE,TRIM4# |
2 | ||
| 55905-02040B0 |
ZZE110..CE1,CE2,LE1,LE2,VE DK.CHARCOAL,TRIM1# |
2 | ||
| 55905-02040C0 |
ZZE110..S BLACK,TRIM2# |
2 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-12620C0 |
ZZE110..S BLACK,TRIM2# |
1 | ||
| 55905-12620B0 |
ZZE110..CE2,LE2 DK.CHARCOAL,TRIM1# |
1 | ||
| 55905-12620E0 |
ZZE110..(CE2,LE2)..(CND,USA) DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-12630E0 |
ZZE110..(CE2,LE2)..(CND,USA) W(REAR WINDOW DEFOGGER),DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55905-12630B0 |
ZZE110..CE2,LE2 W(REAR WINDOW DEFOGGER),DK.CHARCOAL,TRIM1# |
1 | ||
| 55905-12640C0 |
ZZE110..S..USA BLACK,TRIM2# |
1 | ||
| 55905-12630C0 |
ZZE110..S W(REAR WINDOW DEFOGGER),BLACK,TRIM2# |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-02020 |
ZZE110 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-02020 |
ZZE110 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-02030B0 |
ZZE110..CND,USA DK.CHARCOAL,TRIM1# |
1 | ||
| 55910-02020B0 |
ZZE110..CND,USA W(AIR CONDITIONER),DK.CHARCOAL,TRIM1# |
1 | ||
| 55910-02020E0 |
ZZE110..CND,USA W(AIR CONDITIONER),DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55910-02060E0 |
ZZE110..(CE2,LE2)..(CND,USA) W(AIR CONDITIONER),DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55910-02060B0 |
ZZE110..CE2,LE2 W(AIR CONDITIONER),DK.CHARCOAL,TRIM1# |
1 | ||
| 55910-02070E0 |
ZZE110..(CE2,LE2)..(CND,USA) DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55910-02030E0 |
ZZE110..CND,USA DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55910-02070B0 |
ZZE110..(CE2,LE2)..(CND,USA) DK.CHARCOAL,TRIM1# |
1 | ||
| 55910-02060C0 |
ZZE110..S W(AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 55910-02070C0 |
ZZE110..S..(CND,USA) BLACK,TRIM2# |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90011-11001 |
ZZE110 |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-02050 |
ZZE110 |
1 | ||
| 81942-02040 |
ZZE110 |
1 | ||
| 81943A - LENS, HEATER CONTROL INDICATOR LAMP | ||||
| 81943-02010 |
ZZE110 |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-12280B0 |
ZZE110..CE2,LE2 W(REAR WINDOW DEFOGGER),DK.CHARCOAL,TRIM1# |
1 | ||
| 84010-12290C0 |
ZZE110..S..USA BLACK,TRIM2# |
1 | ||
| 84010-12280C0 |
ZZE110..S W(REAR WINDOW DEFOGGER),BLACK,TRIM2# |
1 | ||
| 84010-12280E0 |
ZZE110..(CE2,LE2)..(CND,USA) W(REAR WINDOW DEFOGGER),DK.NEUTRAL BONE,TRIM4# |
1 | ||
| Common parts | ||||
| 90080-15042 | ||||
| 90159-60546 | ||||
| 93568-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
