ZZE110L-DEPDKA (2000)
Toyota Corolla Nap/Sed
ILLUST NO. 1 OF 6(9708- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-02400 |
ZZE110..USA TMMC |
1 | ||
| 82111-02460 |
ZZE110..USA NUMMI |
1 | ||
| 82111-02470 |
ZZE110..USA W(ABS),NUMMI |
1 | ||
| 82111-02410 |
ZZE110..USA W(ABS),TMMC |
1 | ||
| 82115-02290 |
ZZE110..USA NUMMI |
1 | ||
| 82115-02300 |
ZZE110..USA W(ABS),NUMMI |
1 | ||
| 82115-02250 |
ZZE110..USA TMMC |
1 | ||
| 82115-02260 |
ZZE110..USA W(ABS),TMMC |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
ZZE110 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
ZZE110 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08282 |
ZZE110 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08282 |
ZZE110 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
ZZE110 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
ZZE110 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
ZZE110 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08282 |
ZZE110 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08282 |
ZZE110 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
ZZE110 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
ZZE110 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
ZZE110 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08282 |
ZZE110 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08282 |
ZZE110 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
ZZE110 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
ZZE110 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
ZZE110 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08282 |
ZZE110 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08282 |
ZZE110 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
ZZE110 40A,TERM.:FEMALE,GRN |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-02020 |
ZZE110 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
ZZE110..CND,USA |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF 6(9708- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
ZZE110 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07305 |
ZZE110 |
1 | ||
| Common parts | ||||
| 90080-11205 | ||||
| 90119-06390 | ||||

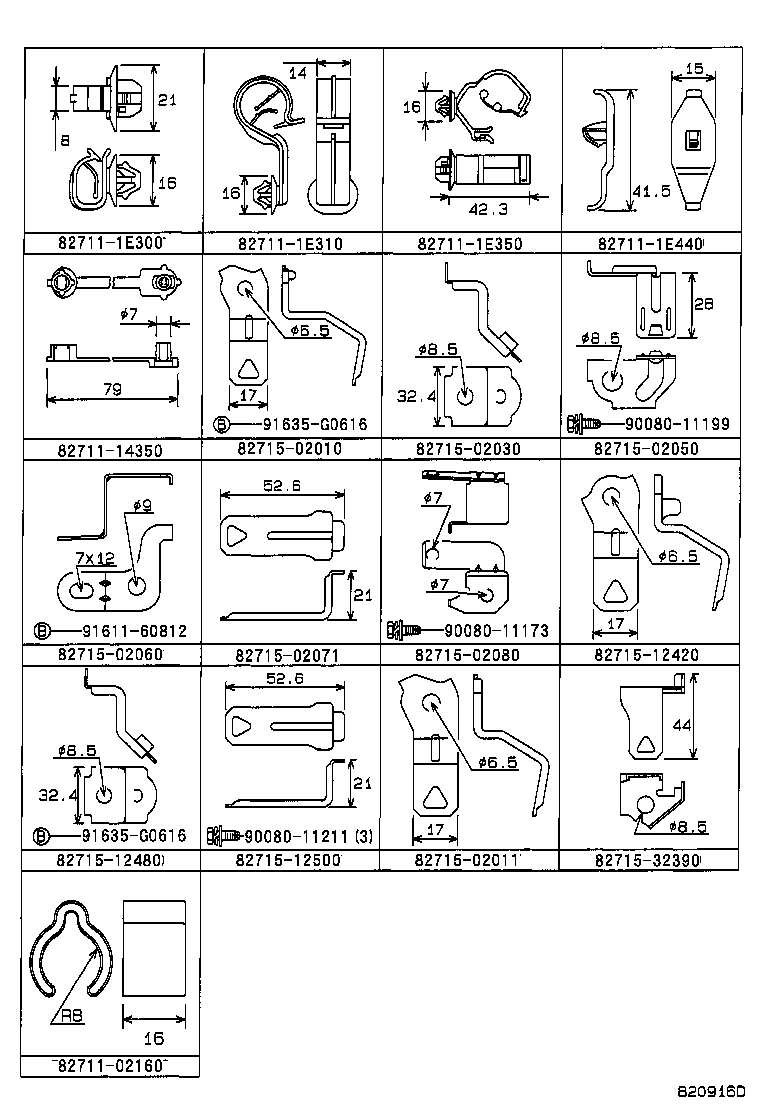

ILLUST NO. 5 OF 6(9708- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-02160 | ||||
| 82711-14350 | ||||
| 82711-1E300 | ||||
| 82711-1E310 | ||||
| 82711-1E350 | ||||
| 82711-1E440 | ||||
| 82715-02010 | ||||
| 82715-02011 | ||||
| 82715-02030 | ||||
| 82715-02050 | ||||
| 82715-02060 | ||||
| 82715-02071 | ||||
| 82715-02080 | ||||
| 82715-12420 | ||||
| 82715-12480 | ||||
| 82715-12500 | ||||
| 82715-32390 | ||||
| 90080-11173 | ||||
| 90080-11199 | ||||
| 90080-11211 | ||||
| 91611-60812 | ||||
| 91635-G0616 | ||||

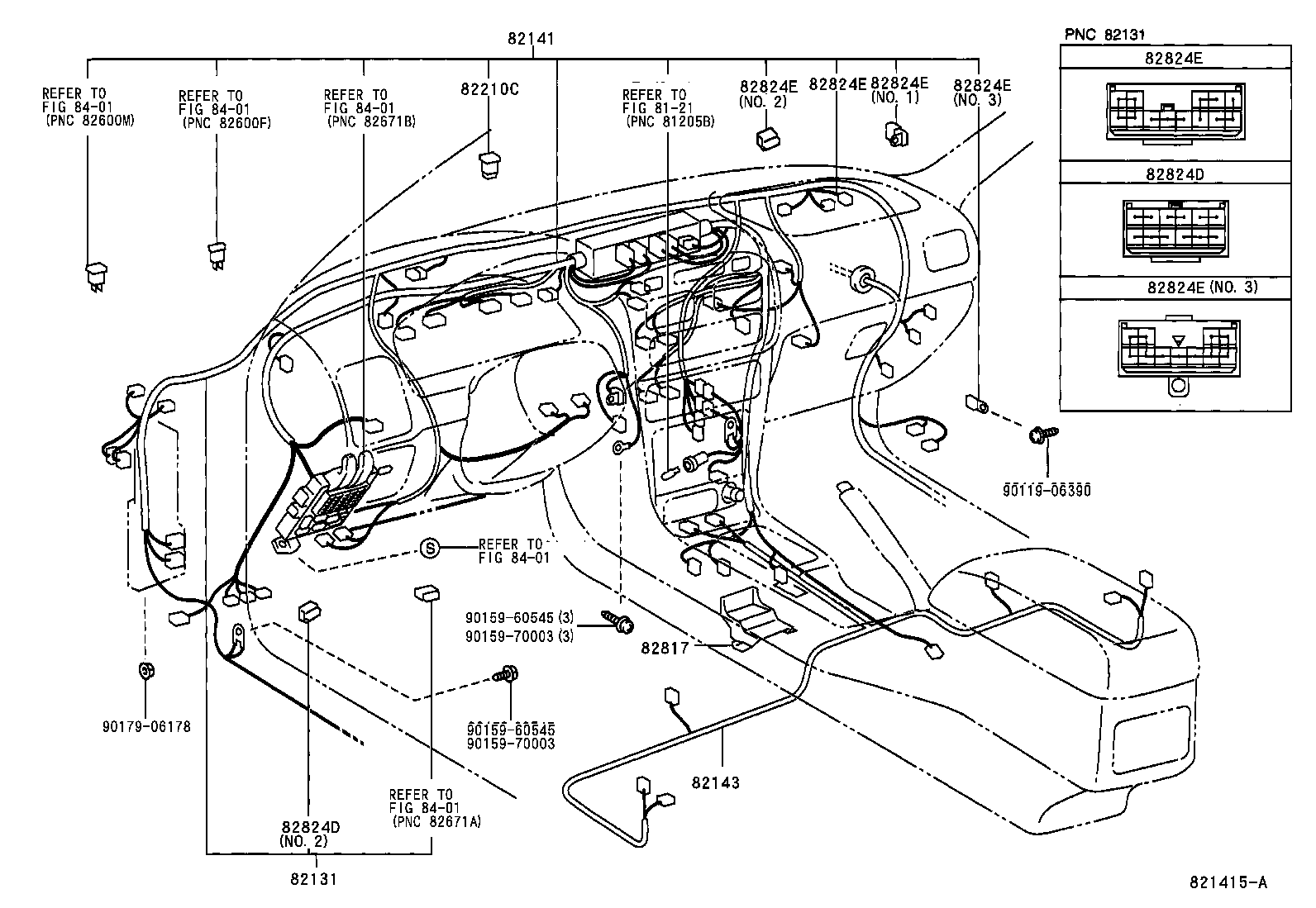

ILLUST NO. 3 OF 6(9708- )
COWL,INSTRUMENT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-02280 |
ZZE110..5F..(CE1,LE1);ZZE110..4FC..(CND,USA);ZZE110..(3FC,5F)..VE..CND W(CRUISE CONTROL & POWER WINDOW),TMMC |
1 | ||
| 82131-02410 |
ZZE110..5F..(CE1,LE1);ZZE110..4FC..(CND,USA);ZZE110..(3FC,5F)..VE..CND W(CRUISE CONTROL & POWER WINDOW),NUMMI |
1 | ||
| 82131-02390 |
ZZE110 W(POWER WINDOW),NUMMI |
1 | ||
| 82131-02260 |
ZZE110 W(POWER WINDOW),TMMC |
1 | ||
| 82131-02630 |
ZZE110..4FC..(LE2,S) W(POWER DOOR LOCK & REAR CONSOLE BOX),TMMC |
1 | ||
| 82131-02660 |
ZZE110..4FC..(LE2,S)..(CND,USA) W(REAR CONSOLE BOX),NUMMI |
1 | ||
| 82131-02650 |
ZZE110..4FC..(LE2,S)..(CND,USA) W(CRUISE CONTROL & POWER DOOR LOCK & REAR CONSOLE BOX),TMMC |
1 | ||
| 82131-02720 |
ZZE110..5F..LE2;ZZE110..CE2..CND;ZZE110..S..(CND,USA) W(CRUISE CONTROL & POWER DOOR LOCK),TMMC |
1 | ||
| 82131-02740 |
ZZE110..CE2,S;ZZE110..5F..LE2 W(POWER DOOR LOCK),NUMMI |
1 | ||
| 82131-02640 |
ZZE110..CE2..CND;ZZE110..(LE2,S)..(CND,USA) W(CRUISE CONTROL),TMMC |
1 | ||
| 82131-02670 |
ZZE110..4FC..(LE2,S) W(POWER DOOR LOCK & REAR CONSOLE BOX),NUMMI |
1 | ||
| 82131-02710 |
ZZE110..CE2,S;ZZE110..5F..LE2 W(POWER DOOR LOCK),TMMC |
1 | ||
| 82131-02700 |
ZZE110..5F..LE2;ZZE110..(CE2,S)..(CND,USA) TMMC |
1 | ||
| 82131-02690 |
ZZE110..4FC..(LE2,S)..(CND,USA) W(CRUISE CONTROL & POWER DOOR LOCK & REAR CONSOLE BOX),NUMMI |
1 | ||
| 82131-02620 |
ZZE110..4FC..(LE2,S)..(CND,USA) W(REAR CONSOLE BOX),TMMC |
1 | ||
| 82131-02730 |
ZZE110..5F..LE2;ZZE110..(CE2,S)..(CND,USA) NUMMI |
1 | ||
| 82131-02680 |
ZZE110..CE2..CND;ZZE110..(LE2,S)..(CND,USA) W(CRUISE CONTROL),NUMMI |
1 | ||
| 82131-02750 |
ZZE110..5F..LE2;ZZE110..CE2..CND;ZZE110..S..(CND,USA) W(CRUISE CONTROL & POWER DOOR LOCK),NUMMI |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82146-02180 |
ZZE110..USA W(*80,DRIVER SIDE & PASSENGER SIDE) OR W(ABS),NUMMI |
1 | ||
| 82146-02120 |
ZZE110..USA W(*80,DRIVER SIDE & PASSENGER SIDE) OR W(ABS),TMMC |
1 | ||
| 82118-02210 |
ZZE110..USA W(POWER DOOR LOCK),TMMC |
1 | ||
| 82146-02640 |
ZZE110..USA TMMC |
1 | ||
| 82118-02230 |
ZZE110..USA W(POWER DOOR LOCK),NUMMI |
1 | ||
| 82146-02670 |
ZZE110..USA NUMMI |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-02020 |
ZZE110..USA;ZZE110..(CE1,LE1,VE)..CND W(*80,DRIVER SIDE & PASSENGER SIDE),TMMC |
1 | ||
| 82143-02030 |
ZZE110..(CE2,LE2,S)..USA;ZZE110..(CE1,LE1,VE)..(TAIW,USA) NUMMI |
1 | ||
| 82143-02040 |
ZZE110..USA W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82143-02010 |
ZZE110..USA;ZZE110..(CE1,LE1,VE)..CND TMMC |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
ZZE110 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
ZZE110 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08282 |
ZZE110 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08282 |
ZZE110 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
ZZE110 40A,TERM.:FEMALE,GRN |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-1A620 |
ZZE110 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-12190 |
ZZE110 NO.1 |
1 | ||
| 82824-30190 |
ZZE110 NO.2 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-12190 |
ZZE110 NO.1 |
1 | ||
| 82824-30190 |
ZZE110 NO.2 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZZE110 NO.2 |
1 | ||
| 82824-20110 |
ZZE110..LE2..(CND,USA);ZZE110..CE1,CE2,LE1,S,VE |
1 | ||
| 82824-16040 |
ZZE110..LE2..(CND,USA);ZZE110..CE1,CE2,LE1,S,VE NO.3 |
1 | ||
| 82824-12200 |
ZZE110 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZZE110 NO.2 |
1 | ||
| 82824-20110 |
ZZE110..LE2..(CND,USA);ZZE110..CE1,CE2,LE1,S,VE |
1 | ||
| 82824-16040 |
ZZE110..LE2..(CND,USA);ZZE110..CE1,CE2,LE1,S,VE NO.3 |
1 | ||
| 82824-12200 |
ZZE110 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZZE110 NO.2 |
1 | ||
| 82824-20110 |
ZZE110..LE2..(CND,USA);ZZE110..CE1,CE2,LE1,S,VE |
1 | ||
| 82824-16040 |
ZZE110..LE2..(CND,USA);ZZE110..CE1,CE2,LE1,S,VE NO.3 |
1 | ||
| 82824-12200 |
ZZE110 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZZE110 NO.2 |
1 | ||
| 82824-20110 |
ZZE110..LE2..(CND,USA);ZZE110..CE1,CE2,LE1,S,VE |
1 | ||
| 82824-16040 |
ZZE110..LE2..(CND,USA);ZZE110..CE1,CE2,LE1,S,VE NO.3 |
1 | ||
| 82824-12200 |
ZZE110 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZZE110 NO.2 |
1 | ||
| 82824-20110 |
ZZE110..LE2..(CND,USA);ZZE110..CE1,CE2,LE1,S,VE |
1 | ||
| 82824-16040 |
ZZE110..LE2..(CND,USA);ZZE110..CE1,CE2,LE1,S,VE NO.3 |
1 | ||
| 82824-12200 |
ZZE110 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZZE110 NO.2 |
1 | ||
| 82824-20110 |
ZZE110..LE2..(CND,USA);ZZE110..CE1,CE2,LE1,S,VE |
1 | ||
| 82824-16040 |
ZZE110..LE2..(CND,USA);ZZE110..CE1,CE2,LE1,S,VE NO.3 |
1 | ||
| 82824-12200 |
ZZE110 NO.1 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-60545 | ||||
| 90159-70003 | ||||
| 90179-06178 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
ILLUST NO. 4 OF 6(9708- )
DOOR,ROOF,FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82051 - HARNESS ASSY, FUEL CONTROL | ||||
| 82051-02010 |
ZZE110..LE1..(CND,USA);ZZE110..CE1,CE2,LE2,S,VE TMMC |
1 | ||
| 82051-02020 |
ZZE110..LE1..(CND,USA);ZZE110..CE1,CE2,LE2,S,VE NUMMI |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-02350 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) W(POWER DOOR LOCK),NUMMI |
1 | ||
| 82151-02251 |
ZZE110..CND,USA W(POWER DOOR LOCK),TMMC |
1 | ||
| 82151-02360 |
ZZE110 W(POWER WINDOW & POWER DOOR LOCK),NUMMI |
1 | ||
| 82151-02590 |
ZZE110..S..USA;ZZE110..LE2..(CND,USA) W(ELECTRIC REMOTE CONTROL DOOR MIRROR),NUMMI |
1 | ||
| 82151-02260 |
ZZE110 W(POWER WINDOW & POWER DOOR LOCK),TMMC |
1 | ||
| 82151-02580 |
ZZE110..S..USA;ZZE110..LE2..(CND,USA) W(ELECTRIC REMOTE CONTROL DOOR MIRROR),TMMC |
1 | ||
| 82151-02240 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) TMMC |
1 | ||
| 82151-02340 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) NUMMI |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-02240 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) TMMC |
1 | ||
| 82152-02350 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) W(POWER DOOR LOCK),NUMMI |
1 | ||
| 82152-02260 |
ZZE110 W(POWER WINDOW & POWER DOOR LOCK),TMMC |
1 | ||
| 82152-02340 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) NUMMI |
1 | ||
| 82152-02251 |
ZZE110..CND,USA W(POWER DOOR LOCK),TMMC |
1 | ||
| 82152-02360 |
ZZE110 W(POWER WINDOW & POWER DOOR LOCK),NUMMI |
1 | ||
| 82152-02500 |
ZZE110..S..USA;ZZE110..LE2..(CND,USA) W(ELECTRIC REMOTE CONTROL DOOR MIRROR),TMMC |
1 | ||
| 82152-02510 |
ZZE110..S..USA;ZZE110..LE2..(CND,USA) W(ELECTRIC REMOTE CONTROL DOOR MIRROR),NUMMI |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02090 |
ZZE110 W(POWER WINDOW),TMMC |
1 | ||
| 82153-02110 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) NUMMI |
1 | ||
| 82153-02120 |
ZZE110 W(POWER WINDOW),NUMMI |
1 | ||
| 82153-02080 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) TMMC |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02110 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) NUMMI |
1 | ||
| 82154-02090 |
ZZE110 W(POWER WINDOW),TMMC |
1 | ||
| 82154-02080 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) TMMC |
1 | ||
| 82154-02120 |
ZZE110 W(POWER WINDOW),NUMMI |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-02350 |
ZZE110..CE1..TAIW;ZZE110..5F..(CE1,LE1);ZZE110..4FC..(CND,USA);ZZE110..(3FC,5F)..VE..CND W(ABS),TMMC |
1 | ||
| 82161-02370 |
ZZE110..CND,USA NUMMI |
1 | ||
| 82161-02340 |
ZZE110..CND,USA TMMC |
1 | ||
| 82161-02460 |
ZZE110..CE2,S;ZZE110..LE2..(CND,USA) TMMC |
1 | ||
| 82161-02470 |
ZZE110..LE2;ZZE110..(CE2,S)..(CND,USA) W(ABS),TMMC |
1 | ||
| 82161-02490 |
ZZE110..LE2;ZZE110..(CE2,S)..(CND,USA) W(ABS),NUMMI |
1 | ||
| 82161-02380 |
ZZE110..CE1..TAIW;ZZE110..5F..(CE1,LE1);ZZE110..4FC..(CND,USA);ZZE110..(3FC,5F)..VE..CND W(ABS),NUMMI |
1 | ||
| 82161-02480 |
ZZE110..CE2,S;ZZE110..LE2..(CND,USA) NUMMI |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02140 |
ZZE110..(CE1,LE1,LE2,S)..(CND,USA) W(SUN ROOF),NUMMI |
1 | ||
| 82171-02190 |
ZZE110..LE2,S W(DAY & NIGHT MIRROR) & W(MAP LAMP),TMMC |
1 | ||
| 82171-02100 |
ZZE110 TMMC |
1 | ||
| 82171-02130 |
ZZE110 NUMMI |
1 | ||
| 82171-02120 |
ZZE110..(CE1,LE1,LE2,S)..(CND,USA) W(SUN ROOF),TMMC |
1 | ||
| 82171-02200 |
ZZE110..LE2,S W(DAY & NIGHT MIRROR) & W(MAP LAMP),NUMMI |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-02060 |
ZZE110 TMMC |
1 | ||
| 82187-02070 |
ZZE110 NUMMI |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-1A640 |
ZZE110 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-12180 |
ZZE110 |
1 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
ZZE110 |
1 | ||
| 82825C - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
ZZE110 |
1 | ||
| Common parts | ||||
| 90084-46021 | ||||
| 90084-46023 | ||||
| 90119-06390 | ||||
| 90159-60545 | ||||
| 90159-70003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
