ZZE110L-DEPDKA (2000)
Toyota Corolla Nap/Sed
Production
May 2000
-
Jan 2002
Engine
1ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

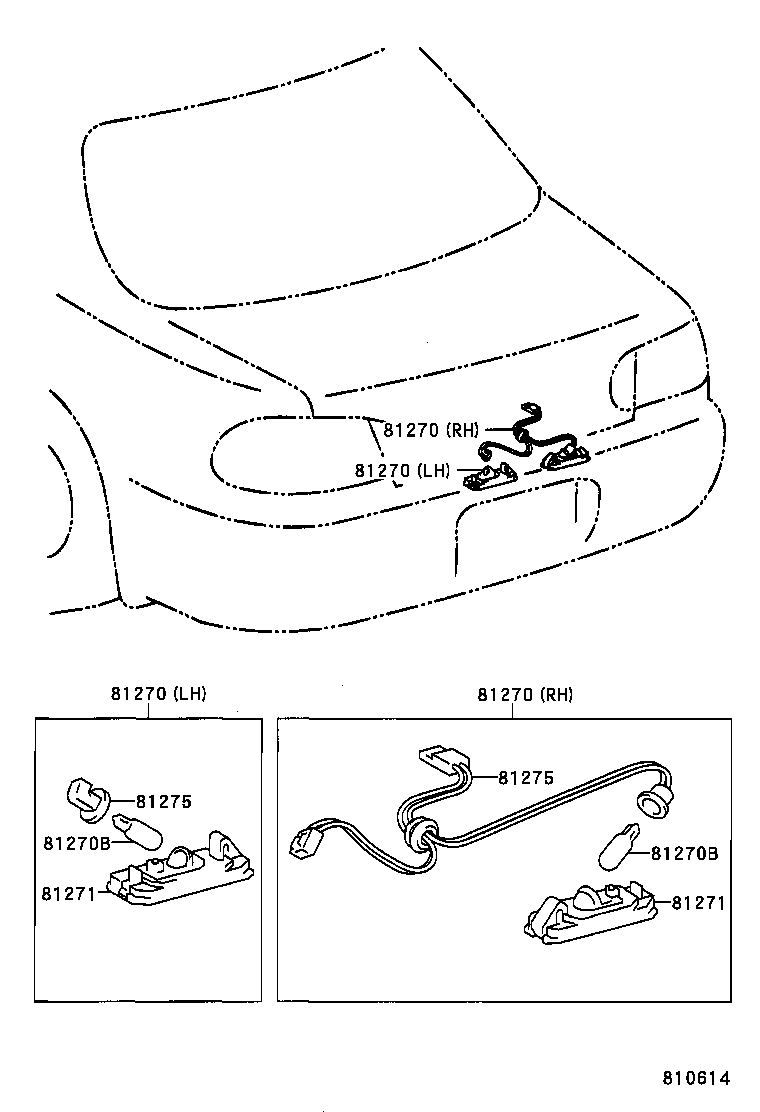

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81690-02050 |
ZZE110 LH,DELPHI |
1 | ||
| 81270-02060 |
ZZE110 RH,DELPHI |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81690-02050 |
ZZE110 LH,DELPHI |
1 | ||
| 81270-02060 |
ZZE110 RH,DELPHI |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81690-02050 |
ZZE110 LH,DELPHI |
1 | ||
| 81270-02060 |
ZZE110 RH,DELPHI |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81690-02050 |
ZZE110 LH,DELPHI |
1 | ||
| 81270-02060 |
ZZE110 RH,DELPHI |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90080-81066 |
ZZE110 HARISON TOSHIBA |
2 | ||
| 90080-81073 |
ZZE110 12V 3.8W,OSRAM |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90080-81066 |
ZZE110 HARISON TOSHIBA |
2 | ||
| 90080-81073 |
ZZE110 12V 3.8W,OSRAM |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-02060 |
ZZE110 RH,DELPHI |
1 | ||
| 81691-02050 |
ZZE110 LH,DELPHI |
1 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-02060 |
ZZE110 RH,DELPHI |
1 | ||
| 81691-02050 |
ZZE110 LH,DELPHI |
1 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 81275-02050 |
ZZE110 RH |
1 | ||
| 90075-60005 |
ZZE110 LH |
1 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 81275-02050 |
ZZE110 RH |
1 | ||
| 90075-60005 |
ZZE110 LH |
1 | ||
