ZZE110L-DEPDKA (2000)

Toyota Corolla Nap/Sed

Production May 2000 - Jan 2002
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

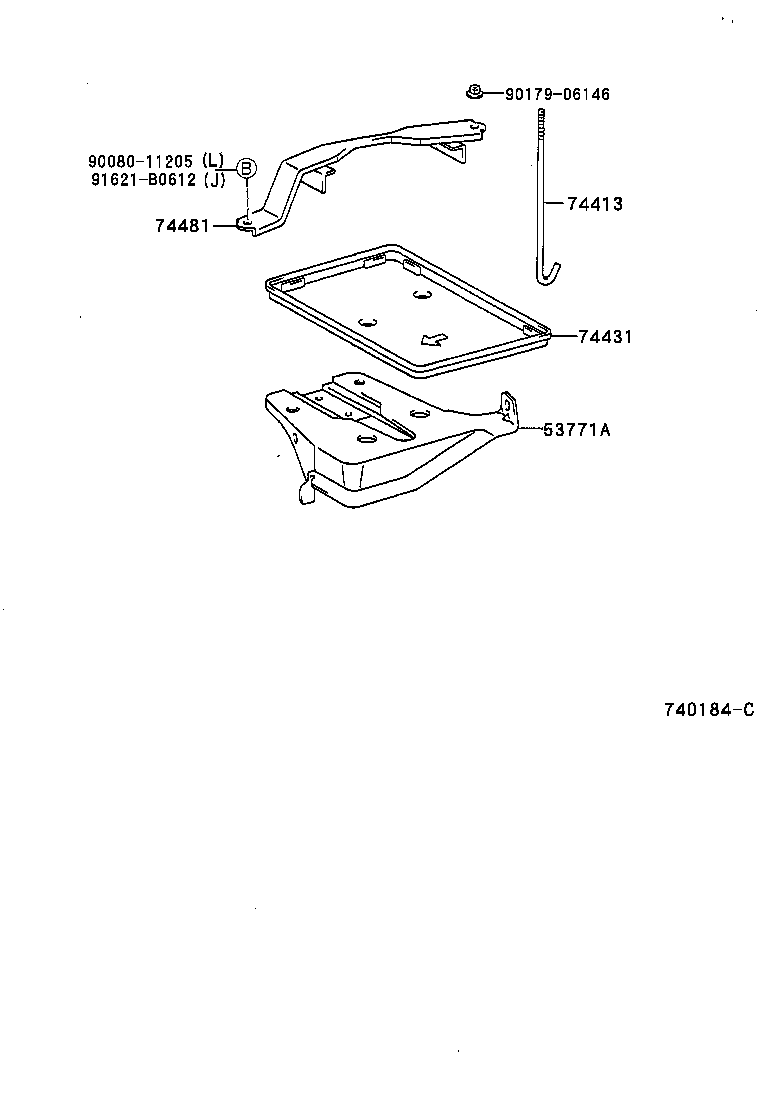

Click highlighted areas on diagram

diagram 53771A 74413 74431 74481 9008011205 9017906146 91621B0612
Part # Description Qty Price
53771A - SUPPORT, BATTERY CARRIER
53771-13010

ZZE110

 1
74413 - BOLT, BATTERY CLAMP
74451-02020

ZZE110

 1
74431 - TRAY, BATTERY
74431-02020

ZZE110

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-02020

ZZE110

(L)

 1
74404-12340

ZZE110

(J)

 1
Common parts
90080-11205
90179-06146
91621-B0612
