ZZE110L-DEPDKA (2000)

Toyota Corolla Nap/Sed

Production May 2000 - Jan 2002
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0008)

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69802 69810A 69820 8511 9008010090 9008010090 9008010209 9008010209 9008410017 9008410017 9010506102 9010506102 9010508077 9010508077 9010508291 9010508291 9011906620 9011906620 9017906070 9017906070 9020908014 9020908014
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02020

ZZE110

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02020

ZZE110

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-02020

ZZE110

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-02020

ZZE110

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-01020E5

ZZE110..(CE1,CE2,LE2,VE)..(CND,USA)

MD.NEUTRAL BONE,TRIM4#

 2
69260-01020B4

ZZE110..(CE1,CE2,LE2,VE)..(CND,USA)

MD.CHARCOAL,TRIM1#

 2
69260-01020C0

ZZE110..S..(CND,USA)

BLACK,TRIM2#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90080-52001

ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA)

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-01020

ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA)

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-02040

ZZE110

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-02040

ZZE110

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-02060

ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA)

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-02060

ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA)

 1
Common parts
90080-10090
90080-10209
90084-10017
90105-06102
90105-08077
90105-08291
90119-06620
90179-06070
90209-08014
Linked diagrams
8511

(0008- )

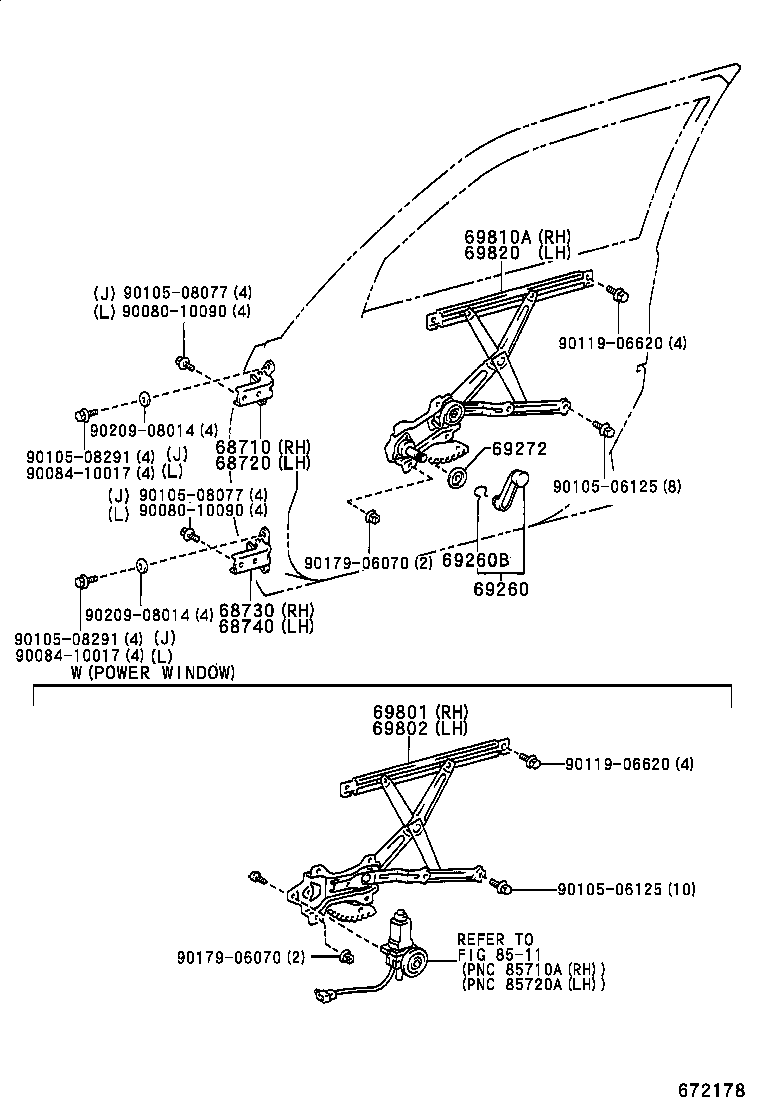

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69802 69810A 69820 8511 9008010090 9008010090 9008410017 9008410017 9010506125 9010506125 9010508077 9010508077 9010508291 9010508291 9011906620 9011906620 9017906070 9017906070 9020908014 9020908014
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02020

ZZE110

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02020

ZZE110

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-02020

ZZE110

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-02020

ZZE110

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-01020E5

ZZE110..(CE1,CE2,LE2,VE)..(CND,USA)

MD.NEUTRAL BONE,TRIM4#

 2
69260-01020B4

ZZE110..(CE1,CE2,LE2,VE)..(CND,USA)

MD.CHARCOAL,TRIM1#

 2
69260-01020C0

ZZE110..S..(CND,USA)

BLACK,TRIM2#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90080-52001

ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA)

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-01020

ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA)

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-02040

ZZE110

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-02040

ZZE110

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-02060

ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA)

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-02060

ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA)

 1
Common parts
90080-10090
90084-10017
90105-06125
90105-08077
90105-08291
90119-06620
90179-06070
90209-08014
Linked diagrams
8511
