ZZE110L-DEPDKA (2000)
Toyota Corolla Nap/Sed
(9708-0008)

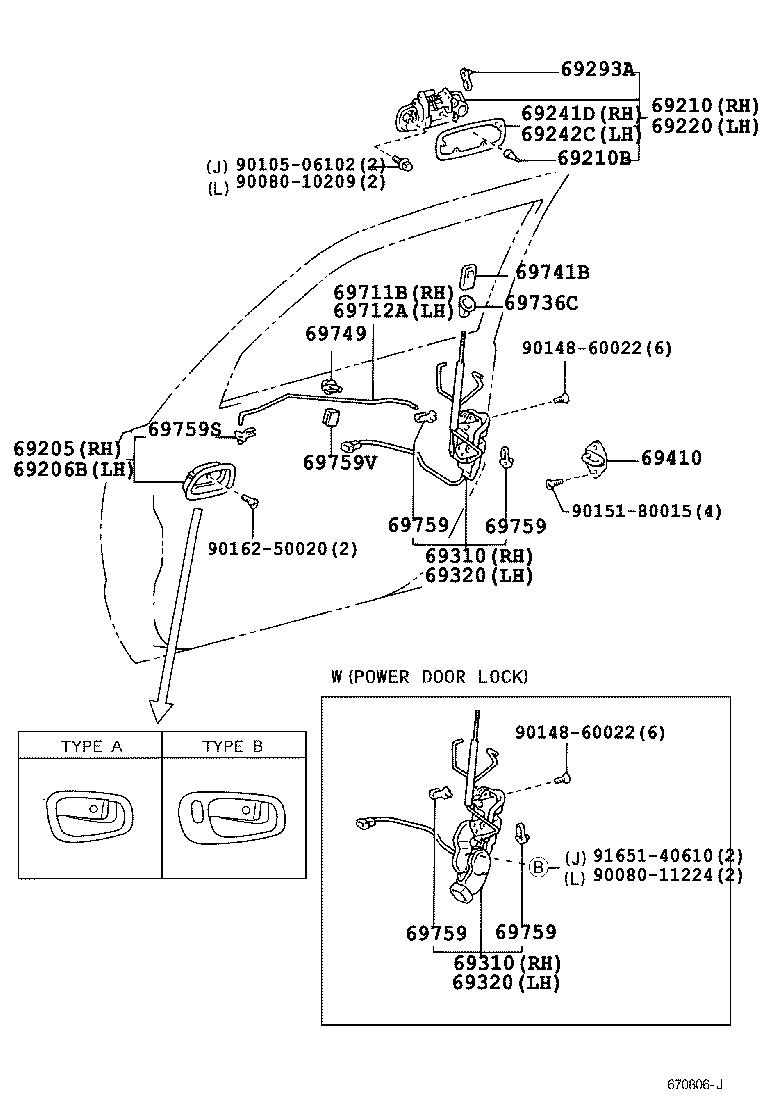

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-02060C0 |
ZZE110..S..(CND,USA) TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2# |
1 | ||
| 69205-02060E0 |
ZZE110..(CE1,CE2,LE2,VE)..(CND,USA) TYPE B:REFER TO ILLUSTRATION,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 69205-02060B1 |
ZZE110..(CE1,CE2,LE2,VE)..(CND,USA) TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 69205-02050B1 |
ZZE110..CE1,CE2,LE1,LE2,VE TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 69205-02050C0 |
ZZE110..S TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2# |
1 | ||
| 69205-02050E0 |
ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA) TYPE A:REFER TO ILLUSTRATION,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-02060E0 |
ZZE110..(CE1,CE2,LE2,VE)..(CND,USA) TYPE B:REFER TO ILLUSTRATION,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 69206-02050E0 |
ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA) TYPE A:REFER TO ILLUSTRATION,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 69206-02050C0 |
ZZE110..S TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2# |
1 | ||
| 69206-02060B1 |
ZZE110..(CE1,CE2,LE2,VE)..(CND,USA) TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 69206-02050B1 |
ZZE110..CE1,CE2,LE1,LE2,VE TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 69206-02060C0 |
ZZE110..S..(CND,USA) TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-02040D3 |
ZZE110..LE2,S RED M.M.,3P1 |
1 | ||
| 69210-02040J2 |
ZZE110..LE2,S DK.BLUE MC.,8P4 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90080-54005 |
ZZE110 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-02040D3 |
ZZE110..LE2,S RED M.M.,3P1 |
1 | ||
| 69220-02040J2 |
ZZE110..LE2,S DK.BLUE MC.,8P4 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-02020 |
ZZE110 |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69242-02020 |
ZZE110 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-01060 |
ZZE110 LH |
1 | ||
| 69293-01050 |
ZZE110 RH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-02060 |
ZZE110 W(POWER DOOR LOCK),*101 |
1 | ||
| 69030-02040 |
ZZE110 W(POWER DOOR LOCK),*100 |
1 | ||
| 69310-02060 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *101 |
1 | ||
| 69310-02040 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *100 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-02060 |
ZZE110 W(POWER DOOR LOCK),*101 |
1 | ||
| 69030-02040 |
ZZE110 W(POWER DOOR LOCK),*100 |
1 | ||
| 69310-02060 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *101 |
1 | ||
| 69310-02040 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *100 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-02040 |
ZZE110 W(POWER DOOR LOCK),*100 |
1 | ||
| 69040-02060 |
ZZE110 W(POWER DOOR LOCK),*101 |
1 | ||
| 69320-02060 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *101 |
1 | ||
| 69320-02040 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *100 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-02040 |
ZZE110 W(POWER DOOR LOCK),*100 |
1 | ||
| 69040-02060 |
ZZE110 W(POWER DOOR LOCK),*101 |
1 | ||
| 69320-02060 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *101 |
1 | ||
| 69320-02040 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *100 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-02030 |
ZZE110 *100 |
2 | ||
| 69410-02020 |
ZZE110 *101 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-02030 |
ZZE110 *101 |
1 | ||
| 69711-02040 |
ZZE110 *100 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-02040 |
ZZE110 *100 |
1 | ||
| 69712-02030 |
ZZE110 *101 |
1 | ||
| 69736C - GUIDE, FRONT DOOR LOCKING LINK | ||||
| 69736-02010 |
ZZE110 |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-04010C0 |
ZZE110..S BLACK,TRIM2# |
2 | ||
| 69741-04010E1 |
ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA) MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 69741-04010B3 |
ZZE110..CE1,CE2,LE1,LE2,VE MD.CHARCOAL,TRIM1# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-02030 |
ZZE110 |
4 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
ZZE110 ORANGE |
1 | ||
| 69759-20050 |
ZZE110 BROWN |
1 | ||
| 69759-24010 |
ZZE110 WHITE,RH |
2 | ||
| 69759-20040 |
ZZE110 WHITE,LH |
1 | ||
| 69759-20090 |
ZZE110 PINK |
1 | ||
| 69759-24020 |
ZZE110 BLUE |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
ZZE110 ORANGE |
1 | ||
| 69759-20050 |
ZZE110 BROWN |
1 | ||
| 69759-24010 |
ZZE110 WHITE,RH |
2 | ||
| 69759-20040 |
ZZE110 WHITE,LH |
1 | ||
| 69759-20090 |
ZZE110 PINK |
1 | ||
| 69759-24020 |
ZZE110 BLUE |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
ZZE110 ORANGE |
1 | ||
| 69759-20050 |
ZZE110 BROWN |
1 | ||
| 69759-24010 |
ZZE110 WHITE,RH |
2 | ||
| 69759-20040 |
ZZE110 WHITE,LH |
1 | ||
| 69759-20090 |
ZZE110 PINK |
1 | ||
| 69759-24020 |
ZZE110 BLUE |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
ZZE110 ORANGE |
1 | ||
| 69759-20050 |
ZZE110 BROWN |
1 | ||
| 69759-24010 |
ZZE110 WHITE,RH |
2 | ||
| 69759-20040 |
ZZE110 WHITE,LH |
1 | ||
| 69759-20090 |
ZZE110 PINK |
1 | ||
| 69759-24020 |
ZZE110 BLUE |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-01030 |
ZZE110 LH |
1 | ||
| 69759-01040 |
ZZE110 RH |
1 | ||
| 69759V - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-50090 |
ZZE110 |
2 | ||
| Common parts | ||||
| 90080-10209 | ||||
| 90080-11224 | ||||
| 90105-06102 | ||||
| 90148-60022 | ||||
| 90151-80015 | ||||
| 90162-50020 | ||||
| 91651-40610 | ||||
(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-02060C0 |
ZZE110..S..(CND,USA) TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2# |
1 | ||
| 69205-02060E0 |
ZZE110..(CE1,CE2,LE2,VE)..(CND,USA) TYPE B:REFER TO ILLUSTRATION,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 69205-02060B1 |
ZZE110..(CE1,CE2,LE2,VE)..(CND,USA) TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 69205-02050B1 |
ZZE110..CE1,CE2,LE1,LE2,VE TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 69205-02050C0 |
ZZE110..S TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2# |
1 | ||
| 69205-02050E0 |
ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA) TYPE A:REFER TO ILLUSTRATION,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-02060E0 |
ZZE110..(CE1,CE2,LE2,VE)..(CND,USA) TYPE B:REFER TO ILLUSTRATION,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 69206-02050E0 |
ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA) TYPE A:REFER TO ILLUSTRATION,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 69206-02050C0 |
ZZE110..S TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2# |
1 | ||
| 69206-02060B1 |
ZZE110..(CE1,CE2,LE2,VE)..(CND,USA) TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 69206-02050B1 |
ZZE110..CE1,CE2,LE1,LE2,VE TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 69206-02060C0 |
ZZE110..S..(CND,USA) TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-02040D3 |
ZZE110..LE2,S RED M.M.,3P1 |
1 | ||
| 69210-02040J2 |
ZZE110..LE2,S DK.BLUE MC.,8P4 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90080-54005 |
ZZE110 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-02040D3 |
ZZE110..LE2,S RED M.M.,3P1 |
1 | ||
| 69220-02040J2 |
ZZE110..LE2,S DK.BLUE MC.,8P4 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-02020 |
ZZE110 |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69242-02020 |
ZZE110 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-01060 |
ZZE110 LH |
1 | ||
| 69293-01050 |
ZZE110 RH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-02060 |
ZZE110 W(POWER DOOR LOCK),*101 |
1 | ||
| 69030-02040 |
ZZE110 W(POWER DOOR LOCK),*100 |
1 | ||
| 69310-02060 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *101 |
1 | ||
| 69310-02040 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *100 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-02060 |
ZZE110 W(POWER DOOR LOCK),*101 |
1 | ||
| 69030-02040 |
ZZE110 W(POWER DOOR LOCK),*100 |
1 | ||
| 69310-02060 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *101 |
1 | ||
| 69310-02040 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *100 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-02040 |
ZZE110 W(POWER DOOR LOCK),*100 |
1 | ||
| 69040-02060 |
ZZE110 W(POWER DOOR LOCK),*101 |
1 | ||
| 69320-02060 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *101 |
1 | ||
| 69320-02040 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *100 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-02040 |
ZZE110 W(POWER DOOR LOCK),*100 |
1 | ||
| 69040-02060 |
ZZE110 W(POWER DOOR LOCK),*101 |
1 | ||
| 69320-02060 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *101 |
1 | ||
| 69320-02040 |
ZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA) *100 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-02030 |
ZZE110 *100 |
2 | ||
| 69410-02020 |
ZZE110 *101 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-02030 |
ZZE110 *101 |
1 | ||
| 69711-02040 |
ZZE110 *100 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-02040 |
ZZE110 *100 |
1 | ||
| 69712-02030 |
ZZE110 *101 |
1 | ||
| 69736C - GUIDE, FRONT DOOR LOCKING LINK | ||||
| 69736-02010 |
ZZE110 |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-04010C0 |
ZZE110..S BLACK,TRIM2# |
2 | ||
| 69741-04010E1 |
ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA) MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 69741-04010B3 |
ZZE110..CE1,CE2,LE1,LE2,VE MD.CHARCOAL,TRIM1# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-02030 |
ZZE110 |
4 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
ZZE110 ORANGE |
1 | ||
| 69759-20050 |
ZZE110 BROWN |
1 | ||
| 69759-24010 |
ZZE110 WHITE,RH |
2 | ||
| 69759-20040 |
ZZE110 WHITE,LH |
1 | ||
| 69759-20090 |
ZZE110 PINK |
1 | ||
| 69759-24020 |
ZZE110 BLUE |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
ZZE110 ORANGE |
1 | ||
| 69759-20050 |
ZZE110 BROWN |
1 | ||
| 69759-24010 |
ZZE110 WHITE,RH |
2 | ||
| 69759-20040 |
ZZE110 WHITE,LH |
1 | ||
| 69759-20090 |
ZZE110 PINK |
1 | ||
| 69759-24020 |
ZZE110 BLUE |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
ZZE110 ORANGE |
1 | ||
| 69759-20050 |
ZZE110 BROWN |
1 | ||
| 69759-24010 |
ZZE110 WHITE,RH |
2 | ||
| 69759-20040 |
ZZE110 WHITE,LH |
1 | ||
| 69759-20090 |
ZZE110 PINK |
1 | ||
| 69759-24020 |
ZZE110 BLUE |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
ZZE110 ORANGE |
1 | ||
| 69759-20050 |
ZZE110 BROWN |
1 | ||
| 69759-24010 |
ZZE110 WHITE,RH |
2 | ||
| 69759-20040 |
ZZE110 WHITE,LH |
1 | ||
| 69759-20090 |
ZZE110 PINK |
1 | ||
| 69759-24020 |
ZZE110 BLUE |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-01030 |
ZZE110 LH |
1 | ||
| 69759-01040 |
ZZE110 RH |
1 | ||
| 69759V - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-50090 |
ZZE110 |
2 | ||
| Common parts | ||||
| 90080-11224 | ||||
| 90105-06125 | ||||
| 90148-60022 | ||||
| 90151-80015 | ||||
| 90162-50020 | ||||
| 91651-40610 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
