ZZE110L-DEPDKA (2000)

Toyota Corolla Nap/Sed

Production May 2000 - Jan 2002
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

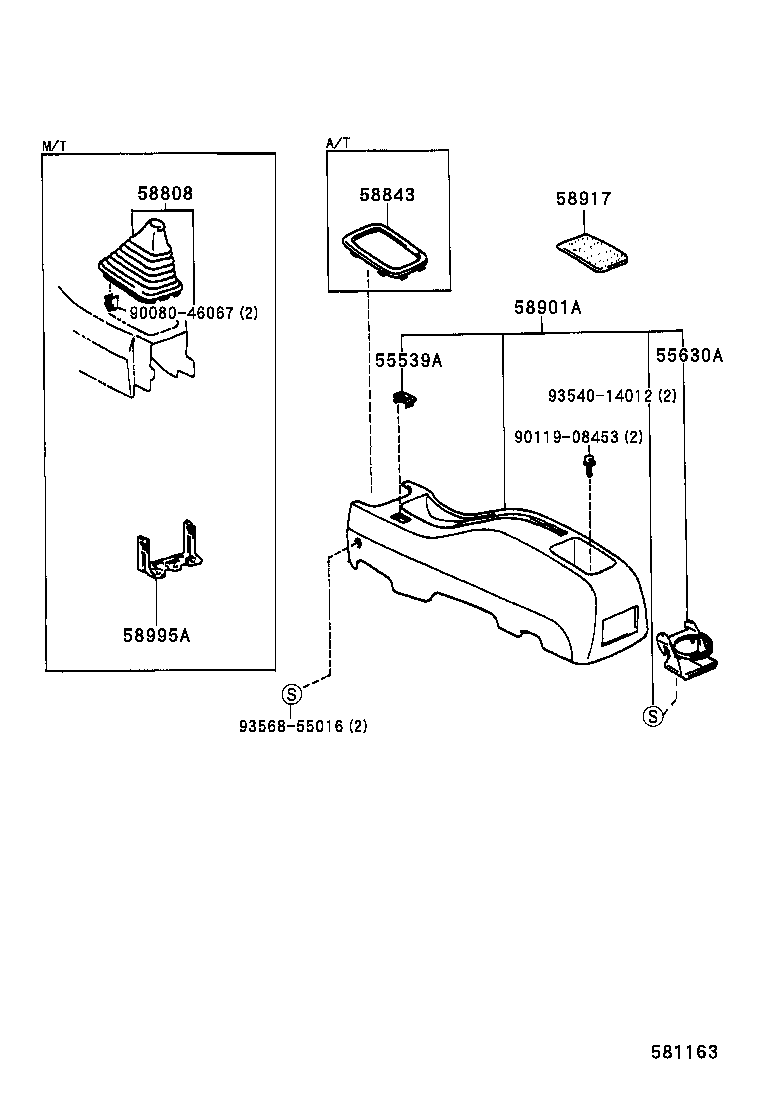

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

diagram 55539A 55630A 58808 58843 58901A 58917 58995A 9008046067 9011908453 9354014012 9356855016
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-02010B1

ZZE110..CE1,CE2,LE1,LE2,VE

MD.CHARCOAL,TRIM1#

 1
55539-02010E0

ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)

MD.NEUTRAL BONE,TRIM4#

 1
55539-02010C0

ZZE110..S

BLACK,TRIM2#

 1
55630A - HOLDER, REAR CONSOLE BOX, CUP
55630-02010C0

ZZE110..S

BLACK,TRIM2#

 1
58843 - BEZEL, SHIFTING HOLE
58843-02020C0

ZZE110..S

BLACK,TRIM2#

 1
58843-02020B1

ZZE110..ATM..(CE1,CE2,LE1,LE2,VE)

MD.CHARCOAL,TRIM1#

 1
58843-02020E0

ZZE110..ATM..(CE1,CE2,LE1,LE2,VE)..(CND,USA)

MD.NEUTRAL BONE,TRIM4#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-02010C0

ZZE110..S

BLACK,TRIM2#

 1
58901-02040C0

ZZE110..4FC..S

W(CONSOLE BOX DOOR),BLACK,TRIM2#

 1
58901-02040B0

ZZE110..4FC..LE2

MD.CHARCOAL,TRIM1#

 1
58901-02040E0

ZZE110..4FC..LE2..(CND,USA)

MD.NEUTRAL BONE,TRIM4#

 1
58917 - MAT, BOX BOTTOM, NO.2
58917-02030

ZZE110..TAIW;ZZE110..(LE2,S)..(CND,USA)

W(CONSOLE BOX DOOR)

 1
58917-02010

ZZE110..(CE1,CE2,S)..TAIW;ZZE110..(CE2,S,VE)..(CND,USA)

 1
Common parts
90080-46067
90119-08453
93540-14012
93568-55016

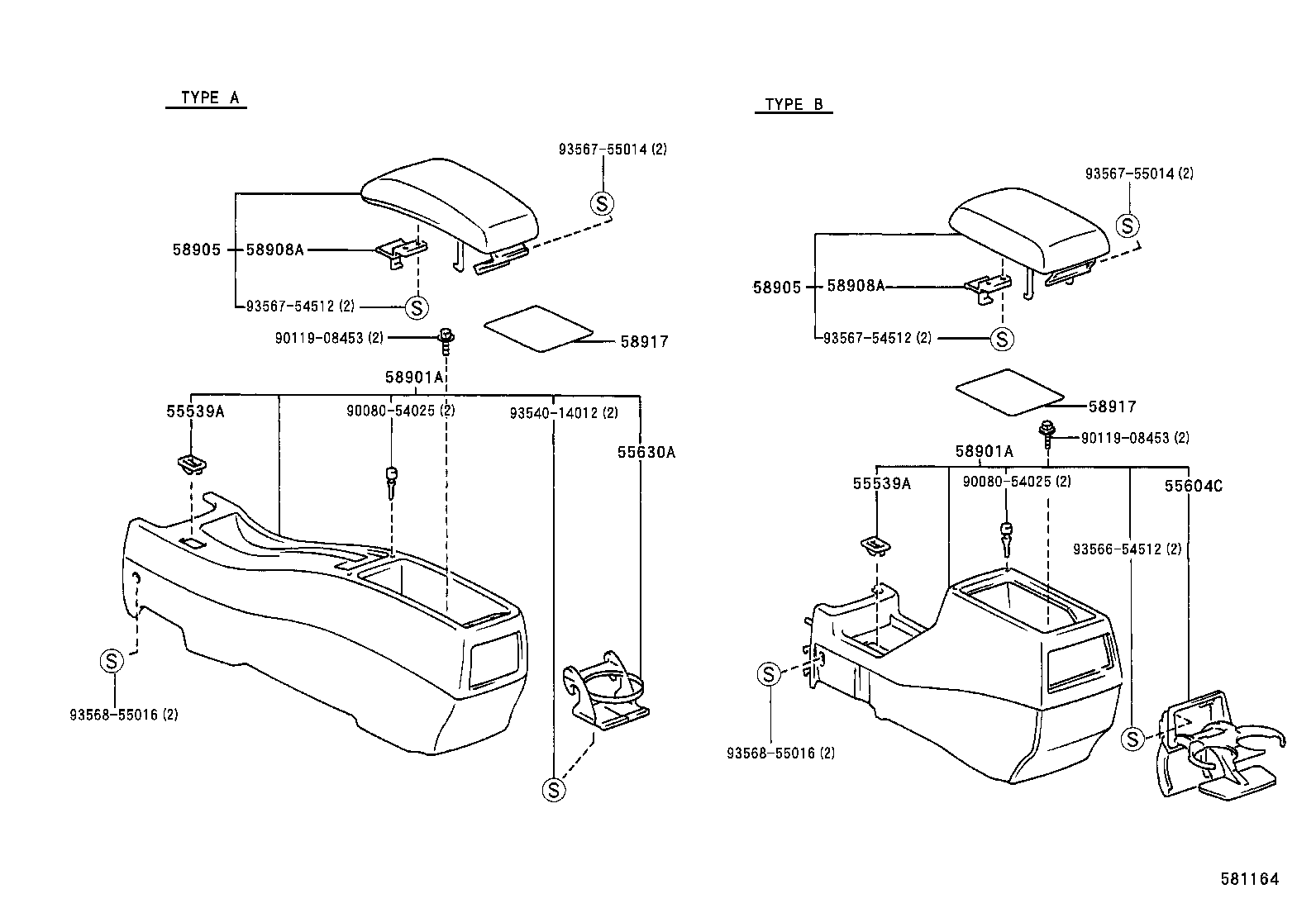

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

W(CONSOLE BOX DOOR)

diagram 55539A 55539A 55604C 55630A 58901A 58901A 58905 58905 58908A 58908A 58917 58917 9008054025 9008054025 9011908453 9011908453 9354014012 9356654512 9356754512 9356754512 9356755014 9356755014 9356855016 9356855016
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-02010B1

ZZE110..CE1,CE2,LE1,LE2,VE

MD.CHARCOAL,TRIM1#

 1
55539-02010E0

ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)

MD.NEUTRAL BONE,TRIM4#

 1
55539-02010C0

ZZE110..S

BLACK,TRIM2#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-02010B1

ZZE110..CE1,CE2,LE1,LE2,VE

MD.CHARCOAL,TRIM1#

 1
55539-02010E0

ZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)

MD.NEUTRAL BONE,TRIM4#

 1
55539-02010C0

ZZE110..S

BLACK,TRIM2#

 1
55604C - HOLDER SUB-ASSY, CONSOLE BOX CUP
55604-35040B1

ZZE110..4FC..LE2

MD.CHARCOAL,TRIM1#

 1
55604-35040E1

ZZE110..4FC..LE2..(CND,USA)

MD.NEUTRAL BONE,TRIM4#

 1
55604-35040C0

ZZE110..4FC..S

BLACK,TRIM2#

 1
55630A - HOLDER, REAR CONSOLE BOX, CUP
55630-02010C0

ZZE110..S

BLACK,TRIM2#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-02010C0

ZZE110..S

BLACK,TRIM2#

 1
58901-02040C0

ZZE110..4FC..S

W(CONSOLE BOX DOOR),BLACK,TRIM2#

 1
58901-02040B0

ZZE110..4FC..LE2

MD.CHARCOAL,TRIM1#

 1
58901-02040E0

ZZE110..4FC..LE2..(CND,USA)

MD.NEUTRAL BONE,TRIM4#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-02010C0

ZZE110..S

BLACK,TRIM2#

 1
58901-02040C0

ZZE110..4FC..S

W(CONSOLE BOX DOOR),BLACK,TRIM2#

 1
58901-02040B0

ZZE110..4FC..LE2

MD.CHARCOAL,TRIM1#

 1
58901-02040E0

ZZE110..4FC..LE2..(CND,USA)

MD.NEUTRAL BONE,TRIM4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02050C0

ZZE110..4FC..S

BLACK,TRIM2#

 1
58905-02050E0

ZZE110..4FC..LE2..(CND,USA)

MD.NEUTRAL BONE,TRIM4#

 1
58905-02050B0

ZZE110..4FC..LE2

MD.CHARCOAL,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02050C0

ZZE110..4FC..S

BLACK,TRIM2#

 1
58905-02050E0

ZZE110..4FC..LE2..(CND,USA)

MD.NEUTRAL BONE,TRIM4#

 1
58905-02050B0

ZZE110..4FC..LE2

MD.CHARCOAL,TRIM1#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32040

ZZE110..(CE2,LE1,LE2,S)..TAIW;ZZE110..(CE1,LE1,LE2,S)..(CND,USA)

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32040

ZZE110..(CE2,LE1,LE2,S)..TAIW;ZZE110..(CE1,LE1,LE2,S)..(CND,USA)

 1
58917 - MAT, BOX BOTTOM, NO.2
58917-02030

ZZE110..TAIW;ZZE110..(LE2,S)..(CND,USA)

W(CONSOLE BOX DOOR)

 1
58917-02010

ZZE110..(CE1,CE2,S)..TAIW;ZZE110..(CE2,S,VE)..(CND,USA)

 1
58917 - MAT, BOX BOTTOM, NO.2
58917-02030

ZZE110..TAIW;ZZE110..(LE2,S)..(CND,USA)

W(CONSOLE BOX DOOR)

 1
58917-02010

ZZE110..(CE1,CE2,S)..TAIW;ZZE110..(CE2,S,VE)..(CND,USA)

 1
Common parts
90080-54025
90119-08453
93540-14012
93566-54512
93567-54512
93567-55014
93568-55016
