ZZE110L-DEPDKA (2000)

Toyota Corolla Nap/Sed

Production May 2000 - Jan 2002
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

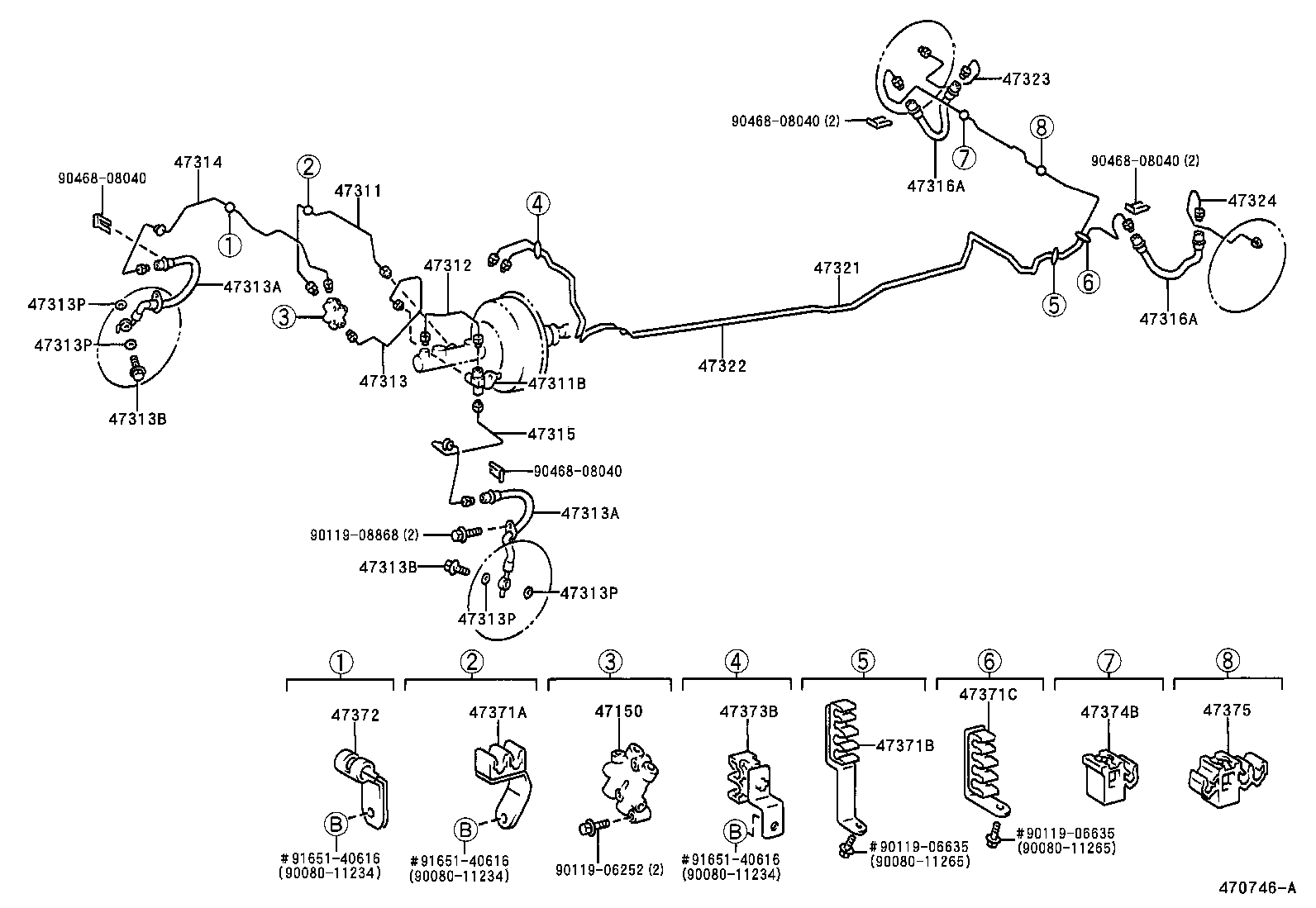

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

W(ABS)

diagram 47150 47311 47311A 47312 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47314 47315 47316 47316A 47316A 47317 47318 47321 47322 47323 47324 47371A 47371B 47371C 47373B 47374B 47375 9008011234 9008011234 9008011265 9008011265 9008048042 9008048043 9011906252 9011906635 9011906635 9011908868 9046808040 9046808040 9046808040 9046808040 9048001577 9048001630 9165140616 9165140616 9165140616
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-02030

ZZE110..CND,USA

(L)

 1
47150-12240

ZZE110..CE2,S;ZZE110..LE2..(CND,USA)

(J)

 1
47150-12240

ZZE110..CND,USA

(J)

 1
47150-12210

ZZE110

W(ABS)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-02060

ZZE110..CND,USA

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10041

ZZE110

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-12260

ZZE110..CND,USA

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94037

ZZE110

RH

 1
90080-94104

ZZE110

LH

 1
90080-94103

ZZE110

RH

 1
90080-94038

ZZE110

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94037

ZZE110

RH

 1
90080-94104

ZZE110

LH

 1
90080-94103

ZZE110

RH

 1
90080-94038

ZZE110

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

ZZE110

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

ZZE110

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

ZZE110

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

ZZE110

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

ZZE110

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

ZZE110

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-02060

ZZE110

W(ABS)

 1
47314-02080

ZZE110..CND,USA

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-02030

ZZE110..CND,USA

TMMC

 1
47315-02060

ZZE110

W(ABS)

 1
47315-02020

ZZE110..CND,USA

NUMMI

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-02030

ZZE110

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90080-94039

ZZE110

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90080-94039

ZZE110

 2
47317 - TUBE, FRONT BRAKE, NO.7
47317-02030

ZZE110

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02030

ZZE110

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-02040

ZZE110

NUMMI

 1
47321-02050

ZZE110

TMMC

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-02040

ZZE110

NUMMI

 1
47322-02050

ZZE110

TMMC

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-02020

ZZE110

NUMMI

 1
47323-02030

ZZE110

TMMC

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-02020

ZZE110

NUMMI

 1
47324-02030

ZZE110

TMMC

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-02030

ZZE110

W(ABS)

 1
47371-12170

ZZE110..CND,USA

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47375-02030

ZZE110

 1
47371C - CLAMP, BRAKE TUBE, NO.7
47375-02040

ZZE110

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-02010

ZZE110

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-12150

ZZE110

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-12180

ZZE110

 1
Common parts
90080-11234
90080-11265
90080-48042
90080-48043
90119-06252
90119-06635
90119-08868
90468-08040
90480-01577
90480-01630
91651-40616

(9708- )

Click highlighted areas on diagram

diagram 47150 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47314 47315 47316A 47316A 47321 47322 47323 47324 47371A 47371B 47371C 47372 47373B 47374B 47375 9008011234 9008011234 9008011234 9008011265 9008011265 9011906252 9011906635 9011906635 9011908868 9046808040 9046808040 9046808040 9046808040 9165140616 9165140616 9165140616
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-02030

ZZE110..CND,USA

(L)

 1
47150-12240

ZZE110..CE2,S;ZZE110..LE2..(CND,USA)

(J)

 1
47150-12240

ZZE110..CND,USA

(J)

 1
47150-12210

ZZE110

W(ABS)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-02060

ZZE110..CND,USA

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10159

ZZE110..CND,USA

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-12260

ZZE110..CND,USA

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02030

ZZE110..CND,USA

TMMC

 1
47313-02020

ZZE110..CND,USA

NUMMI

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94037

ZZE110

RH

 1
90080-94104

ZZE110

LH

 1
90080-94103

ZZE110

RH

 1
90080-94038

ZZE110

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94037

ZZE110

RH

 1
90080-94104

ZZE110

LH

 1
90080-94103

ZZE110

RH

 1
90080-94038

ZZE110

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

ZZE110

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

ZZE110

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

ZZE110

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

ZZE110

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

ZZE110

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

ZZE110

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-02060

ZZE110

W(ABS)

 1
47314-02080

ZZE110..CND,USA

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-02030

ZZE110..CND,USA

TMMC

 1
47315-02060

ZZE110

W(ABS)

 1
47315-02020

ZZE110..CND,USA

NUMMI

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90080-94039

ZZE110

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90080-94039

ZZE110

 2
47321 - TUBE, REAR BRAKE, NO.1
47321-02040

ZZE110

NUMMI

 1
47321-02050

ZZE110

TMMC

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-02040

ZZE110

NUMMI

 1
47322-02050

ZZE110

TMMC

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-02020

ZZE110

NUMMI

 1
47323-02030

ZZE110

TMMC

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-02020

ZZE110

NUMMI

 1
47324-02030

ZZE110

TMMC

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-02030

ZZE110

W(ABS)

 1
47371-12170

ZZE110..CND,USA

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47375-02030

ZZE110

 1
47371C - CLAMP, BRAKE TUBE, NO.7
47375-02040

ZZE110

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90461-08652

ZZE110..CND,USA

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-02010

ZZE110

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-12150

ZZE110

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-12180

ZZE110

 1
Common parts
90080-11234
90080-11265
90119-06252
90119-06635
90119-08868
90468-08040
91651-40616
