ZZE110L-DEPDKA (2000)

Toyota Corolla Nap/Sed

Production May 2000 - Jan 2002
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

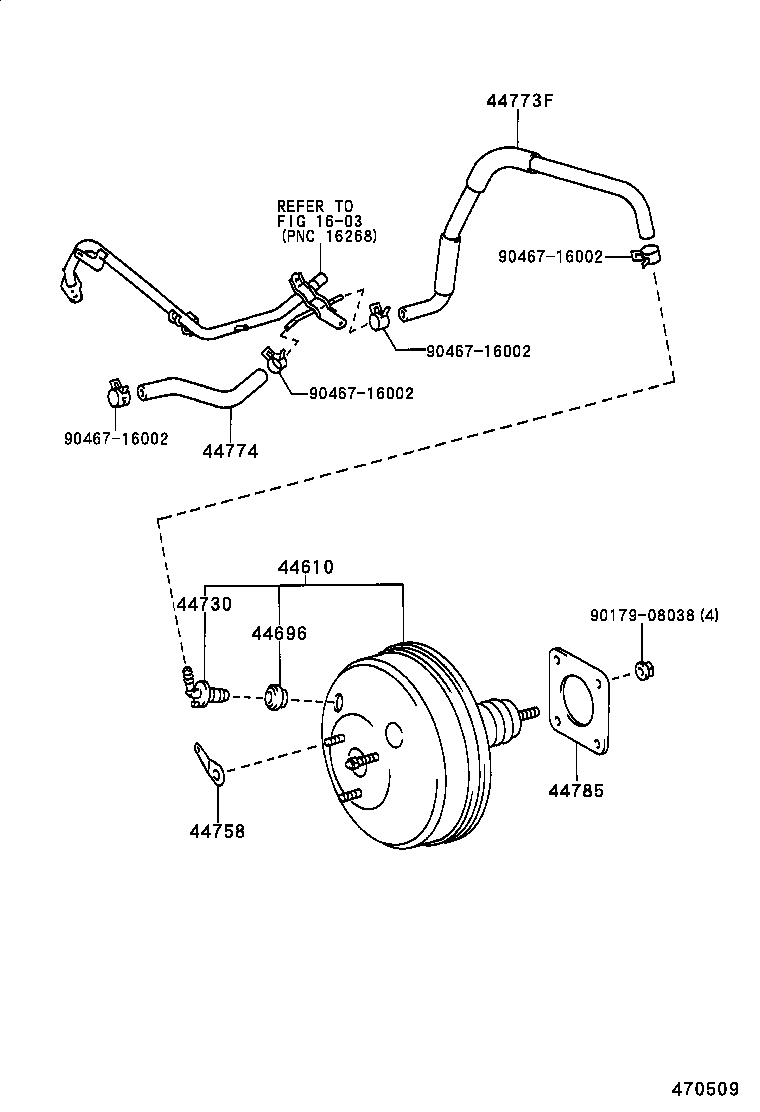

Click highlighted areas on diagram

diagram 1603 44610 44696 44730 44758 44773F 44774 44785 9017908038 9046716002 9046716002 9046716002 9046716002
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-1E210

ZZE110

W(ABS)

 1
44610-02020

ZZE110..CND,USA

 1
44696 - GROMMET, CHECK VALVE
90480-24439

ZZE110

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-42010

ZZE110

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-12320

ZZE110

W(ABS)

 1
44758-02010

ZZE110..CND,USA

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-02010

ZZE110

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12350

ZZE110

(J)

 1
44774-02030

ZZE110

(L)

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

ZZE110

 1
Common parts
90179-08038
90467-16002
Linked diagrams
1603
