ZZE110L-DEPDKA (2000)
Toyota Corolla Nap/Sed
Production
May 2000
-
Jan 2002
Engine
1ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

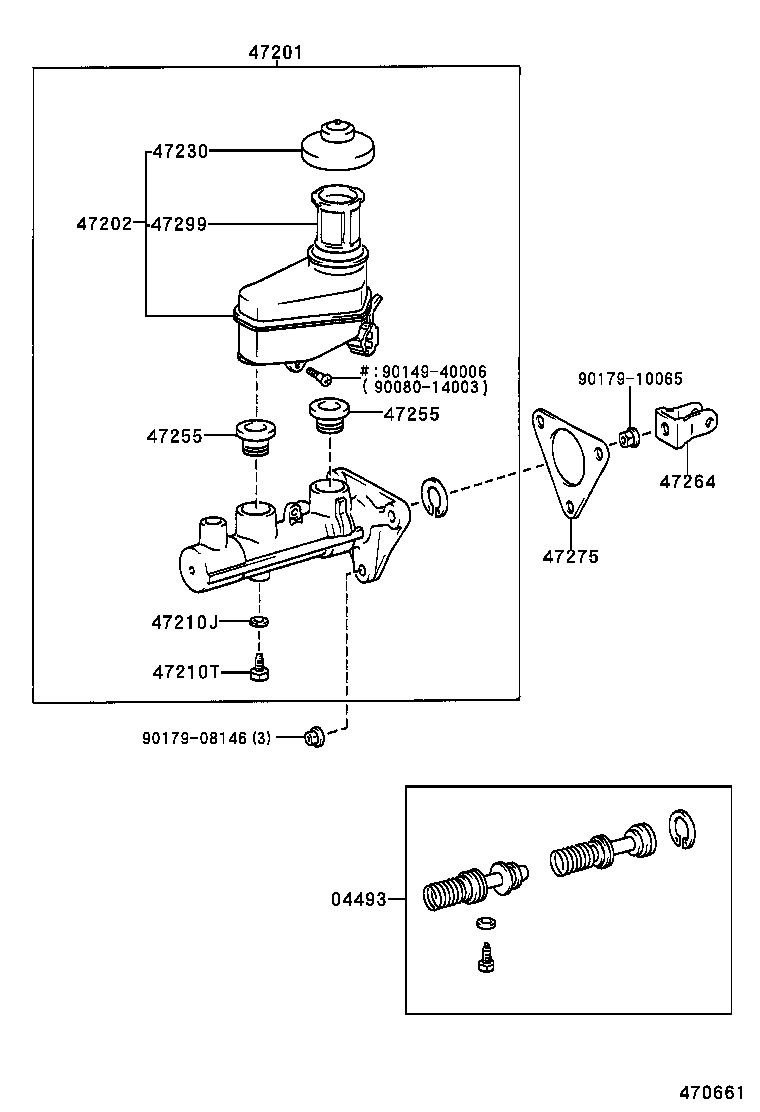

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-16080 |
ZZE110..CND,USA |
1 | ||
| 04493-12210 |
ZZE110 W(ABS) |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-02020 |
ZZE110..CND,USA |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-02020 |
ZZE110..CND,USA |
1 | ||
| 47220-12090 |
ZZE110 W(ABS) |
1 | ||
| 47220-02020 |
ZZE110..CE2,S;ZZE110..LE2..(CND,USA) |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
ZZE110..CND,USA |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
ZZE110..CND,USA |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
ZZE110 |
1 | ||
| 47230-12040 |
ZZE110 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
ZZE110 W(ABS) |
2 | ||
| 47255-03010 |
ZZE110..CND,USA |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
ZZE110 W(ABS) |
2 | ||
| 47255-03010 |
ZZE110..CND,USA |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-33010 |
ZZE110 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12030 |
ZZE110 W(ABS) |
1 | ||
| 47275-32010 |
ZZE110..CND,USA |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
ZZE110 W(ABS) |
1 | ||
| 47299-24010 |
ZZE110..CND,USA |
1 | ||
| Common parts | ||||
| 90080-14003 | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
