ZZE110L-DEPDKA (2000)

Toyota Corolla Nap/Sed

Production May 2000 - Jan 2002
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

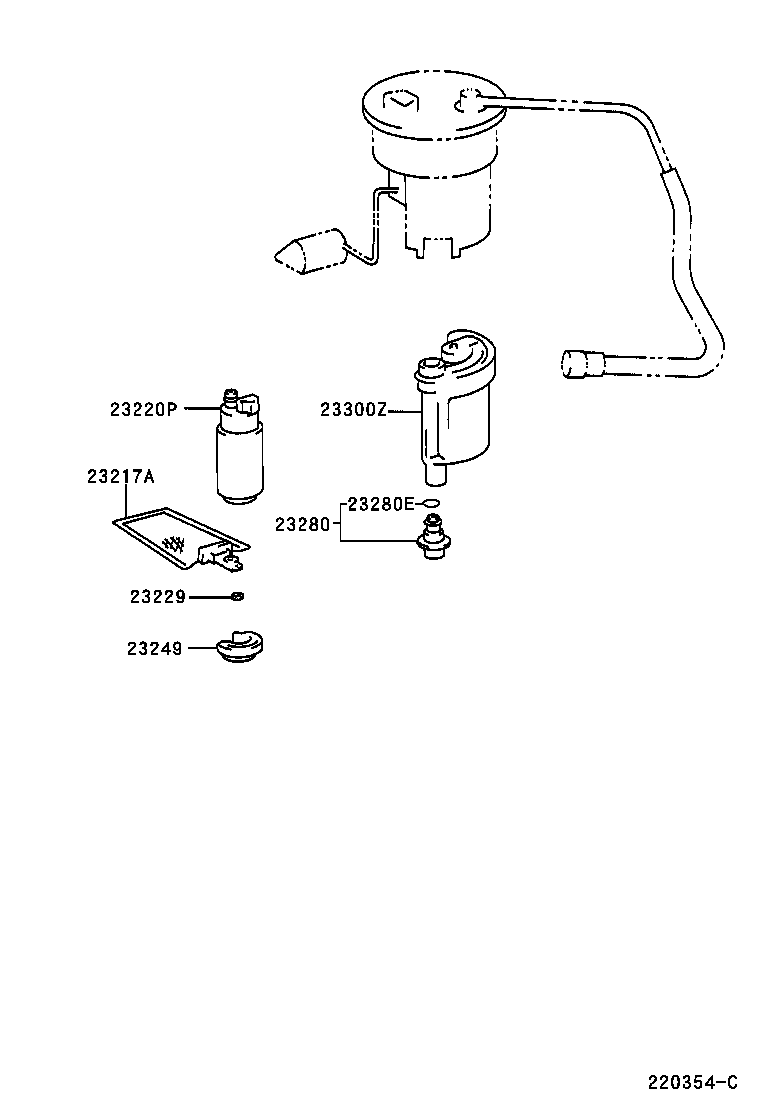

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

diagram 23217A 23220P 23229 23249 23280 23280E 23300Z
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-03030

1ZZFE..ZZE110

 1
23220P - PUMP ASSY, FUEL
23221-0D010

1ZZFE..ZZE110

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23219-03010

1ZZFE..ZZE110

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23218-0C010

1ZZFE..ZZE110

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-22010

1ZZFE..ZZE110

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07020

1ZZFE..ZZE110

 1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-0D010

1ZZFE..ZZE110

 1
