ZZE110L-DEPDKA (2000)

Toyota Corolla Nap/Sed

Production May 2000 - Jan 2002
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

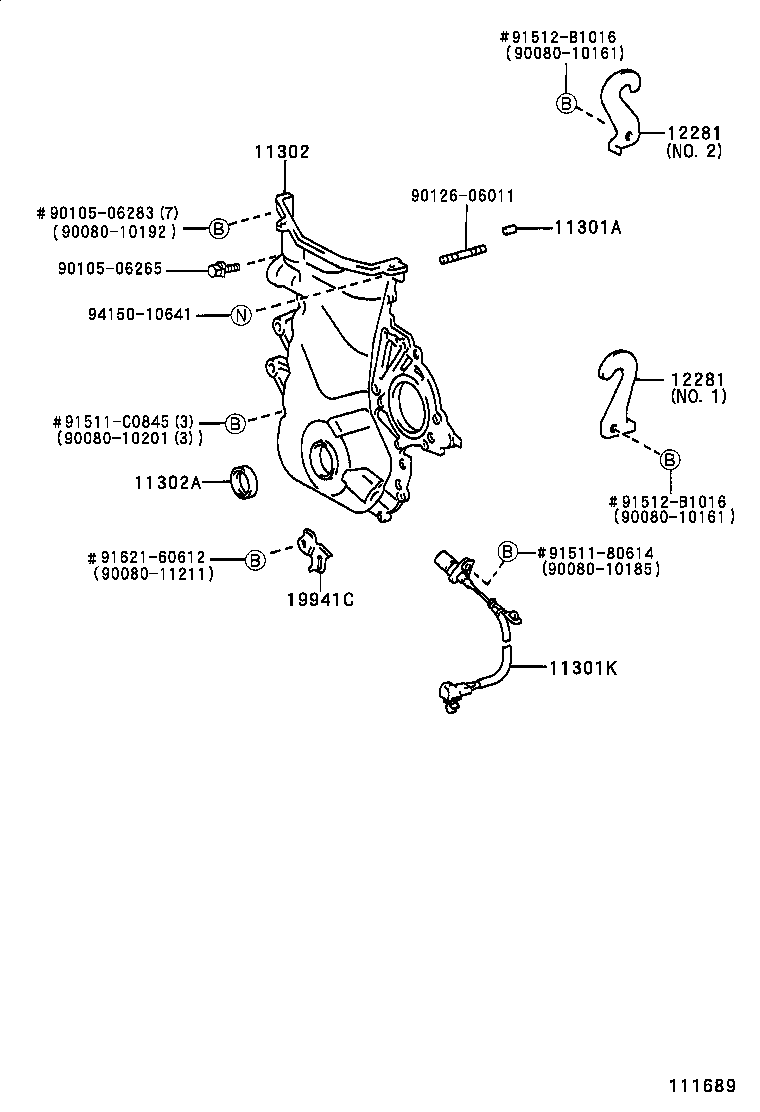

Click highlighted areas on diagram

diagram 11301A 11301K 11302 11302A 12281 12281 19941C 9008010161 9008010161 9008010185 9008010192 9008010201 9008011211 9010506265 9010506283 9012606011 9151180614 91511C0845 91512B1016 91512B1016 9162160612 9415010641
Part # Description Qty Price
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08074

1ZZFE..ZZE110

L=15,OD=8

 1
11301K - SENSOR, CRANK POSITION
90919-05030

1ZZFE..ZZE110

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-22020

1ZZFE..ZZE110

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38059

1ZZFE..ZZE110

 1
12281 - HANGER, ENGINE, NO.1
12281-15050

1ZZFE..ZZE110

NO.2

 1
12281-22020

1ZZFE..ZZE110

FRONT

 1
12281-22021

1ZZFE..ZZE110

 1
12281 - HANGER, ENGINE, NO.1
12281-15050

1ZZFE..ZZE110

NO.2

 1
12281-22020

1ZZFE..ZZE110

FRONT

 1
12281-22021

1ZZFE..ZZE110

 1
19941C - CLAMP, CORD(FOR CRANK POSITION SENSOR)
19941-22010

1ZZFE..ZZE110

 1
Common parts
90080-10161
90080-10185
90080-10192
90080-10201
90080-11211
90105-06265
90105-06283
90126-06011
91511-80614
91511-C0845
91512-B1016
91621-60612
94150-10641
